CP-642ME P ARTS LIST ver06 3 1 - 1 3 1 . エアー機器( W A B ) 3 1 . A i r d e v i c e ( W A B ) 3 1 . エアー機器( W A B ) 3 1 . A i r d e v i c e ( W A B ) ﾀ ﾃ x 1 7 3 . 2 0 5 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f…
30.カバー(WPZ)
30.Cover(WPZ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
89 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
90 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
91 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
92 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
93 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
94 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
95 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
96 N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8 FE
97 WQC6080 1 COVER ｶﾊﾞｰ FE
98 WQC6500 1 COVER ｶﾊﾞｰ FE
99 WPZ4071 1 BKT BKT FE
100 WPZ4080 2 WASHER ﾜｯｼｬ FE
103 WPZ5151 1 BKT, SUPPORT BKT, 支え FE
104 MPZ7050 1 NAMEPLATE 銘板 PL
105 WQC6510 1 BKT BKT FE
106 WPZ2520 4 SEAL ｼｰﾙ PL
107 MPZ6220 4 WASHER ﾜｯｼｬ FE
108 K5215C 4 SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X12L FE
109 W1001E 4 WASHER ﾜｯｼｬ M4 FE
110 W1001G 6 WASHER ﾜｯｼｬ M6 FE
111 H3080A 1 BUSHING, RUBBER ﾌﾞｯｼｭ ｺﾞﾑ 30MM OT
112 H5417A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M16X55L FE
113 H5419A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M16X70L FE
114 W1029A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ M16 FE
115 W1058T WASHER, FLAT ﾜｯｼｬ 平 16M/MX3.0X2.8(小形丸) FE
116 YWM0031 1 SEAL ｼｰﾙ English PL
117 YWM0051 1 SEAL ｼｰﾙ Japanese PL
118 YWM0070 1 SEAL ｼｰﾙ French PL
119 KPA0890 2 SEAL ｼｰﾙ PL
120 KPA0900 2 SEAL ｼｰﾙ Japanese/English PL
121 KPA0920 2 SEAL ｼｰﾙ English/French PL
CP-642ME PARTS LIST ver06
30 - 4
30.カバー(WPZ)
30.Cover(WPZ)
CP-642ME PARTS LIST ver06
31 - 1

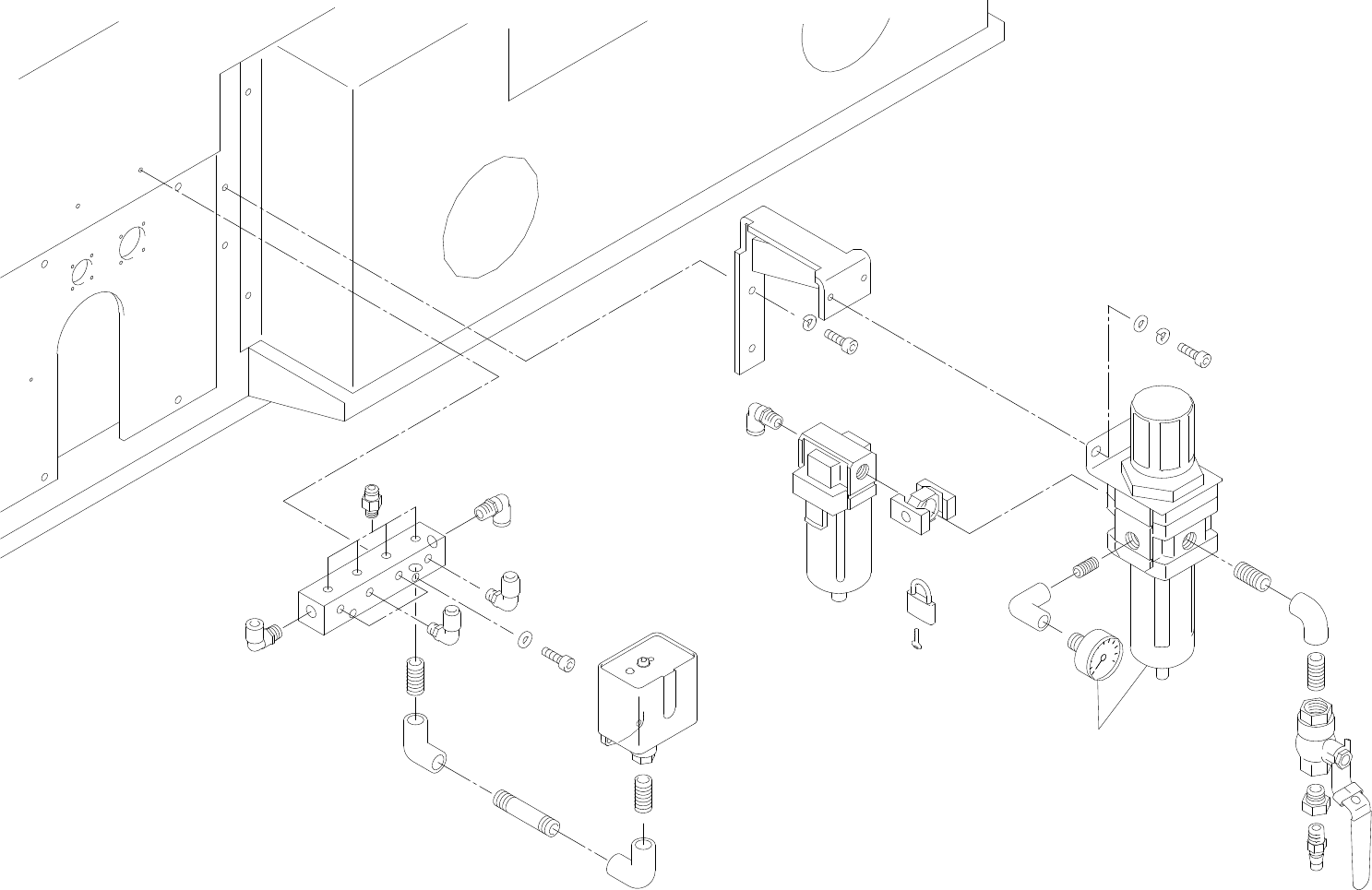

31.エアー機器(WAB)
31.Air device(WAB)
31.エアー機器(WAB)
31.Air device(WAB)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
A
x2
12
11
31
30
6
29
19
28
22
22
19
13
9
5
20
26
23
14
18
10
2
17
13
16
3
1
14
15
5
7
21
27
32
31.エアー機器(WAB)
31.Air device(WAB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 WAB3061 1 BKT BKT FE
2 H3149A 1 PLUG, COUPLER ﾌﾟﾗｸﾞ ｶﾌﾟﾗ 20PM OT
3 H1059T 1 VALVE, BALL ﾊﾞﾙﾌﾞ ﾎﾞｰﾙ RP-LL-3/8 Lock band OT
5 A4053A 2 ELBOW ｴﾙﾎﾞ 1/4. OT
6 A4081A 1 ELBOW, DIFFERENT DIAMETERS ｴﾙﾎﾞ異径 3/8X1/4 OT
7 H3030A 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW3000-02-BDG OT
9 S2176B 4 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TS6-01 OT
10 S2172B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-02 OT
11 S2171B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01 OT
12 S2173B 3 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-01 OT
13 S2174B 2 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-02 OT
14 H1215A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X30 OT
15 H1220A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X65 OT
16 H1282A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 3/8X25 OT
17 H3075A 1 BUSHING ﾌﾞｯｼｭ 3/8X1/4 OT
18 H5295A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X35L FE
19 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L FE
20 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L FE
21 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
22 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
23 WAB3050 1 TERMINAL, PIPING ﾀｰﾐﾅﾙ 配管 AL
26 S3157T 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3000-02L5 OT
27 S4016R 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM3000-02-D OT
28 S3059Y 1 SPACER ｽﾍﾟｰｻ Y30(29.5) OT
29 H1218A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 OT
30 H1234T 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 OT
31 A4055A 1 ELBOW ｴﾙﾎﾞ 1/8 OT
32 K2027R 1 KEY ｷｰ OT
CP-642ME PARTS LIST ver06
31 - 2
31.エアー機器(WAB)
31.Air device(WAB)
