CP-642ME P ARTS LIST ver06 3 9 - 1 3 9 . シャッタ( オプション) ( W A F ) 3 9 . S h u t t e r ( O p t i o n ) ( W A F ) 3 9 . シャッタ( オプション) ( W A F ) 3 9 . S h u t t e r ( O p t i o n ) ( W A F )  ﾀ ﾃ x 1 7 3 . 2 0 5 R e f . 3 1 -…

100%1 / 215
38.リールセット台(WPJ)
38.Feeder setting jig(WPJ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 WPJ0681 1 BASE ﾍﾞｰｽ FE
2 WPJ0690 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 FE
3 WPJ0700 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準 FE
4 WPJ0710 1 CLAMPER ｸﾗﾝﾊﾟ FE
5 WPJ0721 1 GUIDE, HOLDER ｶﾞｲﾄﾞ 受け FE
6 WSD0013 2 CLAMPER ｸﾗﾝﾊﾟ FE
7 WSD0641 2 BOLT ﾎﾞﾙﾄ FE
8 WSD0651 2 SPRING ｽﾌﾟﾘﾝｸﾞ FE
9 H4435T 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1150ZZ OT
10 R5025T 2 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ 5ﾟX10 OT
11 W1013A 2 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H FE
12 W1012A 2 WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L FE
13 W1011A 12 WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L FE
14 H5321A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12 FE
15 H5300A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15 FE
16 H5289A 12 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12 FE
17 AWPJ9020 1 Feeder Setting JIG ﾘｰﾙｾｯﾄ台 ･ FE
CP-642ME PARTS LIST ver06
38 - 2
38.リールセット台(WPJ)
38.Feeder setting jig（(WPJ)
CP-642ME PARTS LIST ver06
39 - 1

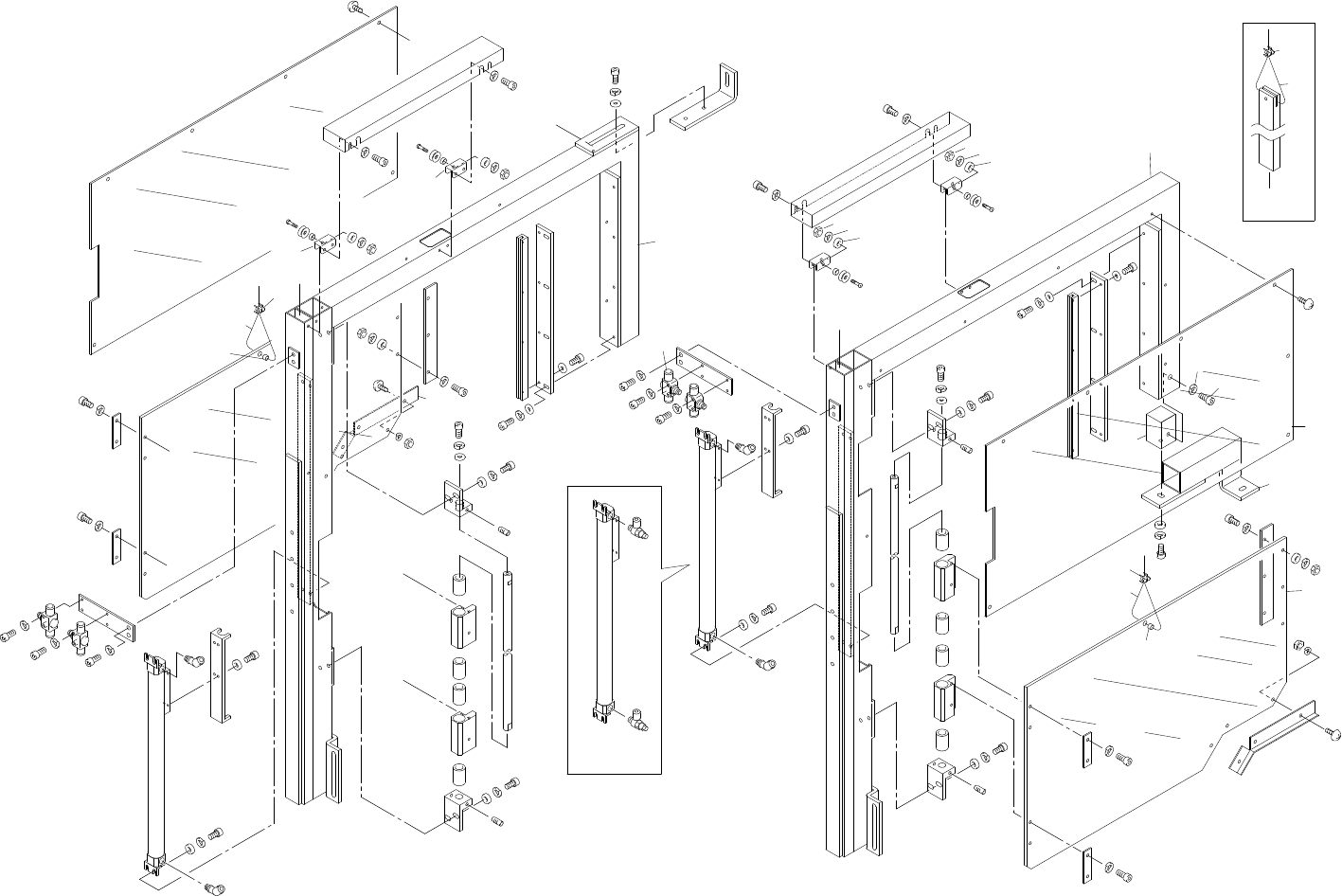

39.シャッタ(オプション)(WAF)
39.Shutter(Option)(WAF)
39.シャッタ(オプション)(WAF)
39.Shutter(Option)(WAF)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
B
B
A
A
A
C
C
D
D
C
139
26
A
x2
16
15
20
7
20
21
22
40
45
37
37
31
21
22
7
40
37
45
48
42
39
47
31
37
52
43
14
17
19
37
32
45
37
40
18
37
33
58
38
60
61
9
10
40
1
46
30
32
37
38
29
35
24
19
37
32
53
54
54
37
57
37
57
39
56
55
5
6
30
23
24
12
24
3
44
42
39
36
UK
26
62
62
26
41
38
50
55
3
44
42
39
36
12
24
26
55
41
38
50
37
55
54
57
56
39
54
53
37
57
30
6
5
51
31
37
31
37
45
37
40
2
22
21
20
7
22
21
20
45
37
40
7
43
25
39
11
10
9
40
37
32
46
30
42
39
36
38
29
35
3
44
13
15
16
14
4
38
61
59
60
23
3
44
42
39
36
24
12
24
24
12
24
40
19
8
37
32
37
45
18
37
33
42
39
49
17
15
16
37
32
19
39.シャッタ(オプション)(WAF)
39.Shutter(Option)(WAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 WAF5300 1 BKT, FENCE BKT ﾌｪﾝｽ FE
2 WAF5310 1 BKT, FENCE BKT ﾌｪﾝｽ FE
3 WAF5350 4 BKT BKT FE
4 WAF5210 1 BKT BKT FE
5 WAF5360 2 PLATE ﾌﾟﾚｰﾄ FE
6 W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L FE
7 WAF5380 4 BKT BKT FE
8 AWAF8590 2 PLATE ﾌﾟﾚｰﾄ WAF5330+WWM0210 OT
9 WAF1210 2 RAIL ﾚｰﾙ AL
10 WAF1220 2 RAIL ﾚｰﾙ AL
11 WAF5220 1 HOLDER ﾎﾙﾀﾞ FE
12 WAF5340 4 HOLDER ﾎﾙﾀﾞ AL
13 WAF5390 2 BALANCER ﾊﾞﾗﾝｻ OT
14 AWAF8580 2 COVER ｶﾊﾞｰ WAF5320+WWM0210 OT
15 WAF2310 2 WIRE, STAINLESS STEEL ﾜｲﾔ ｽﾃﾝﾚｽ OT
16 K3017A 4 CLIPPER, WIRE ｸﾘｯﾊﾟ ﾜｲﾔ ﾟ1.5 OT
17 GXZ0230 2 COLLAR ｶﾗｰ FE
18 GXZ0251 2 PLATE ﾌﾟﾚｰﾄ AL
19 GXZ0240 4 PLATE ﾌﾟﾚｰﾄ FE
20 GXZ0350 4 PIN ﾋﾟﾝ FE
21 H4106A 4 BEARING ﾍﾞｱﾘﾝｸﾞ AS-1130 OT
22 GXZ0360 4 COLLAR ｶﾗｰ FE
23 GXZ0300 2 BAR ﾊﾞｰ FE
24 H4282A 8 BEARING, SLIDE ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ KH1228 OT
25 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L FE
26 WAF5370 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ OT
29 GXZ0310 2 WASHER ﾜｯｼｬ FE
30 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L FE
31 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
32 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L FE
33 H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X15L FE
35 H5304A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X25L FE
36 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L FE
37 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
38 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
CP-642ME PARTS LIST ver06
39 - 2
39.シャッタ(オプション)(WAF)
39.Shutter(Option)(WAF)
