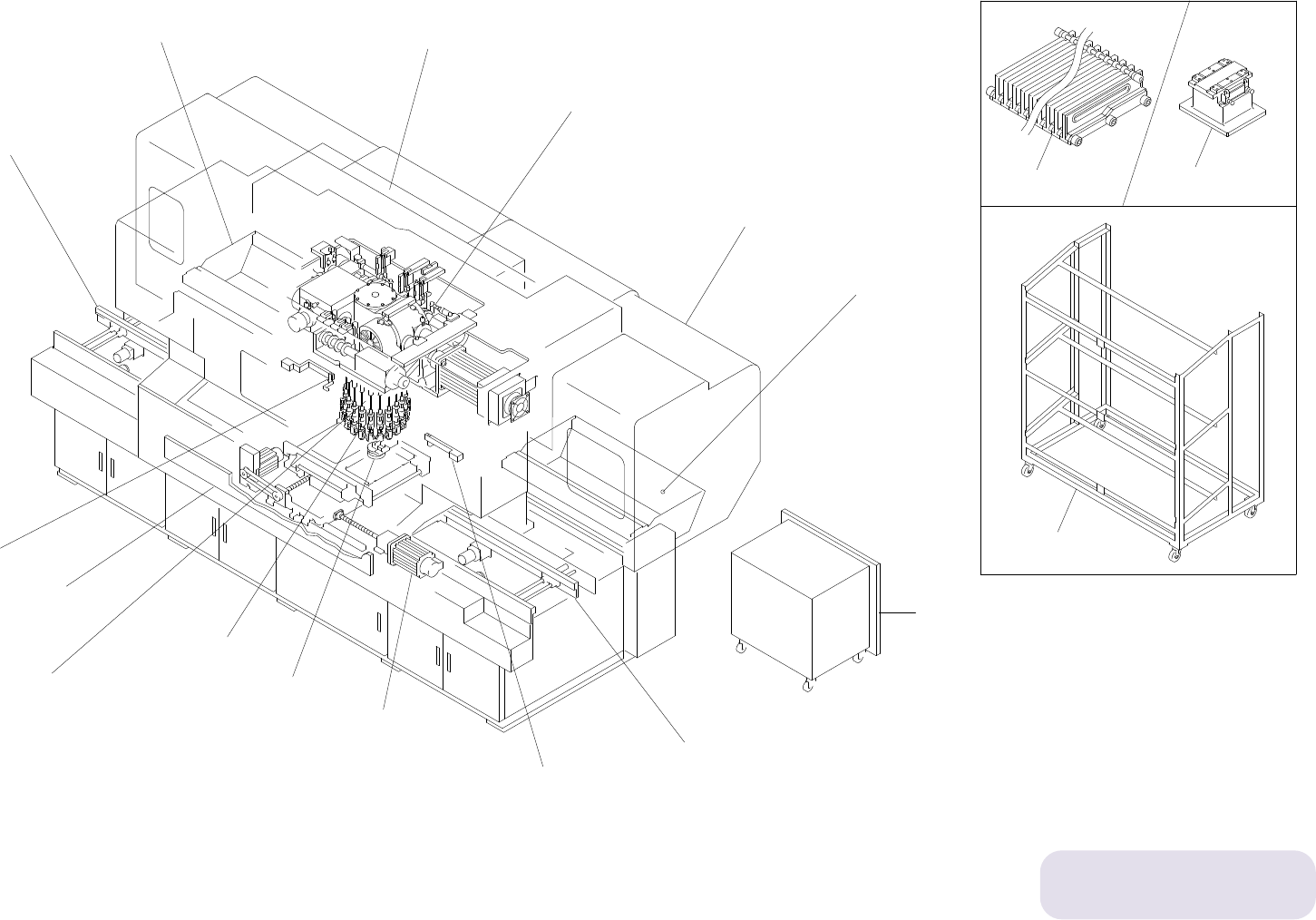

CP-642ME 配置図
CP-642ME Overview
配置番号は目次番号です。
Refer to contents for
the part name of each number
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
0.5 1 2 10
ﾀﾃx173.205
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
x15
16
    Ｂｏｄｙ
２９．−−−−−−− 本体
    Ｆｅｎｃｅ
   
４０−１,４０−２−−フェンス
    Ａｉｒ
２８，３１．−−−− エア−
    Ｃｏｖｅｒ
３０．−−−−−−− カバ−
２９．−−−−−−− シャッタ−
    Ｓｈｕｔｔｅｒ
４１−１,４１−２−−英国フェンス
    ＵＫ Ｆｅｎｃｅ
1.1.Nozzles
1.2.Nozzles
2.Placung head,drum
5.Loading unit
11.Feedr check sensor
21.Device table D2
20.Device table D1
10.Optical correction
23.1.Noise reduction box
23.2.Noise reduction box
25.Cam box 1
26.Cam box 2
27.1.Cam box 3
27.2.Cam box 3
22.1.Noise reduction cover
22.2.Noise reduction cover
22.3.Noise reduction cover
11.Feedr check sensor
24.Dust collector
12.ST 1(Parts pick up)
13.ST 2(Parts check)
14.ST 5(Nozzle theta positioning)
15.1.ST 6(Vision processing)
15.2.ST 6(Vision processing)
16.ST 10(Fine theta),ST 12(Reverse fine theta)
17.ST 3(Pre theta),ST 13(Reverse pre theta)
18.ST 16(Parts eject),Wast tape sutter
19.ST 17(Nozzle pre chang check),
ST 18(Nozzle chang),
ST 19(Nozzle post chang check)
ＣＰ−６４２ＭＥ 配置図  Ｏｖｅｒｖｉｅｗ
4.Out conveyor
33.In conveyor(R→L)(Option)
35.Out conveyor(L→R)(Option)
44.Out conveyor(Cover)(Option)
28.Pneumatic circuit diagram
29.Body
30.Cover
31.Air device
39.Shutter(Option)
40.1.Fence(Option)
40.2.Fence(Option)
41.1.UK fence(Option)
41.2.UK fence(Option)
45.Standard accessory,Tool
6.1.Board clamping unit
6.2.Board clamping unit
6.3.Board clamping unit
7.X slide
8.1.Y slide
8.2.Y slide
9.1.Z table
9.2.Z table
42.Vacuum back up
37.Cartridge rack
36.Cartridge stand
38.Feeder setting jig
3.In conveyor
32.Out conveyor(R→L)(Option)
34.In conveyor(L→R)(Option)
43.In conveyor(Cover)(Option)
CP-642ME PARTS LIST ver06
1 - 1 - 1
1.1.ノズル一覧(WPH)
1.1.Nozzles(WPH)
1.1.ノズル一覧(WPH)
1.1.Nozzles(WPH)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
A
x2
38
39
37
B022-050
□22
φ5.0
41
42
S022-070
40
□22
φ7.0
B022-070
45
44
43
□22
φ7.0
47
48
46
R012-004
φ12
φ0.41
34
35
36
S022-050
□22
φ5.0
31
S020-050
33
32
□20
φ5.0
R020-037
29
30
28
φ20
φ3.75
M020-025
26
27
25
φ20
φ2.5
14
15
13
R012-018
φ12
φ1.81
R016-025
17
18
16
φ16
φ2.5
R016-037
20
21
19
φ16
φ3.75
R020-025
23
24
22
φ20
φ2.5
11
10
12
M012-013
φ12
φ1.3
7
9
8
R012-013
φ12
φ1.3
5
R012-010
4
6
φ12
φ1.0
R012-007
2
3
1
φ12
φ0.71
1.1.ノズル一覧(WPH)
1.1.Nozzles(WPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 AWPH9514 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY R012-007 OT
2 AWPH9011 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 R012-007 OT
3 WPH8291 20 SEAL ｼｰﾙ R012-007 PL
4 AWPH9524 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY R012-010 OT
5 AWPH9021 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 R012-010 OT
6 WPH8301 20 SEAL ｼｰﾙ R012-010 PL
7 AWPH9534 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY R012-013 OT
8 AWPH9031 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 R012-013 OT
9 WPH8311 20 SEAL ｼｰﾙ R012-013 PL
10 AWPH9545 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY M012-013 OT
11 AWPH9088 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 M012-013 OT
12 WPH8311 20 SEAL ｼｰﾙ M012-013 PL
13 AWPH9554 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY R012-018 OT
14 AWPH9077 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 R012-018 OT
15 WPH8320 20 SEAL ｼｰﾙ R012-018 PL
16 AWPH9563 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY R016-025 OT
17 AWPH9125 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 R016-025 OT
18 WPH8201 20 SEAL ｼｰﾙ R016-025 PL
19 AWPH9572 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY R016-037 OT
20 AWPH9135 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 R016-037 OT
21 WPH8211 20 SEAL ｼｰﾙ R016-037 PL
22 AWPH9583 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY R020-025 OT
23 AWPH9041 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 R020-025 OT
24 WPH8081 20 SEAL ｼｰﾙ R020-025 PL
25 AWPH9593 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY M020-025 OT
26 AWPH9098 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 M020-025 OT
27 WPH8081 20 SEAL ｼｰﾙ M020-025 PL
28 AWPH9602 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY R020-037 OT
29 AWPH9051 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 R020-037 OT
30 WPH8121 20 SEAL ｼｰﾙ R020-037 PL
31 AWPH9612 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY S020-050 OT
32 AWPH9060 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 S020-050 OT
33 WPH8101 20 SEAL ｼｰﾙ S020-050 PL
34 AWPH9662 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY S022-050 OT
35 AWPH9154 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 S022-050 OT
36 WPH8231 20 SEAL ｼｰﾙ S022-050 PL
37 AWPH9672 20 NOZZLE ASSY ﾉｽﾞﾙ ASSY B022-050 OT
38 AWPH9154 20 NOZZLE ASSY ,NO SEAL ﾉｽﾞﾙ ASSY ｼｰﾙ無 B022-050 OT
CP-642ME PARTS LIST ver06
1 - 1 - 2
1.1.ノズル一覧(WPH)
1.1.Nozzles (WPH)
