12.第1 ST(パーツ吸着)(WPL) 12.ST 1(Parts pick up)(WPL) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 74 WGZ0180 1 SEAL ｼｰﾙ PL 75 WGZ0210 1 SEAL(ENGLISH) ｼｰﾙ PL 76 WGZ0240…

100%1 / 215
12.第1 ST(パーツ吸着)(WPL)
12.ST 1(Parts pick up)(WPL)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
37 K5028H 2 CONNECTOR ｺﾈｸﾀ EE-1001 OT
38 H5273A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X5L FE
39 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L FE
40 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L FE
41 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
42 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L FE
43 H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L FE
44 H5344A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X35L FE
45 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
46 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
47 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
48 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
49 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
50 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
51 N1085A NUT, HEX ﾅｯﾄ 六角 M6 FE
52 N1089A NUT, HEX ﾅｯﾄ 六角 M8 FE
53 N4047A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M6X10L FE
55 DCPL0130 1 PLATE ﾌﾟﾚｰﾄ FE
57 S3130A 1 SW, PHOTOELECTRIC SW 光電 PS-47 OT
58 H5300A WASHER, LOCK ﾎﾞﾙﾄ 六角穴 M5X15L FE
59 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
60 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
61 H5302A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X20L FE
62 K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L FE
63 K5316A 1 CONTROLLER ｺﾝﾄﾛｰﾗ PS-25 DC Type OT
64 WGZ0160 1 COVER ｶﾊﾞｰ PL
65 K5209A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X8L FE
66 K5234A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M4X8L FE
67 S2153H 2 JOINT ｼﾞｮｲﾝﾄ TSH-4-M5M OT
68 S2170B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-M5A OT
69 WPL0310 1 COLLAR ｶﾗｰ FE
70 WPL0330 2 COLLAR ｶﾗｰ FE
71 H4444A 2 BEARING ﾍﾞｱﾘﾝｸﾞ LF-940ZZ OT
72 N4020T SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X5L FE
73 WWZ0202 1 PLATE ﾌﾟﾚｰﾄ FE
CP-642ME PARTS LIST ver06
12 - 4
12.第1 ST(パーツ吸着)(WPL)
12.ST 1(Parts pick up)(WPL)
12.第1 ST(パーツ吸着)(WPL)
12.ST 1(Parts pick up)(WPL)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
74 WGZ0180 1 SEAL ｼｰﾙ PL
75 WGZ0210 1 SEAL(ENGLISH) ｼｰﾙ PL
76 WGZ0240 1 SEAL(FRENCH) ｼｰﾙ PL
77 WPL0440 1 PIN ﾋﾟﾝ FE
78 GPL0611 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
79 WGZ0040 1 BKT BKT FE
80 W1046A 1 WASHER, FLAT ﾜｯｼｬ 平 4W-8 FE
81 WWM0220 1 SEAL ｼｰﾙ Japanese PL
82 WWM0230 1 SEAL ｼｰﾙ English PL
83 WWM0240 1 SEAL ｼｰﾙ French PL
84 H5419A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M16X70L FE
85 W1029A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 16M/M FE
86 W1049A WASHER, FLAT ﾜｯｼｬ 平 4W-16 FE
CP-642ME PARTS LIST ver06
12 - 5
12.第1 ST(パーツ吸着)(WPL)
12.ST 1(Parts pick up)(WPL)
CP-642ME PARTS LIST ver06
13 - 1

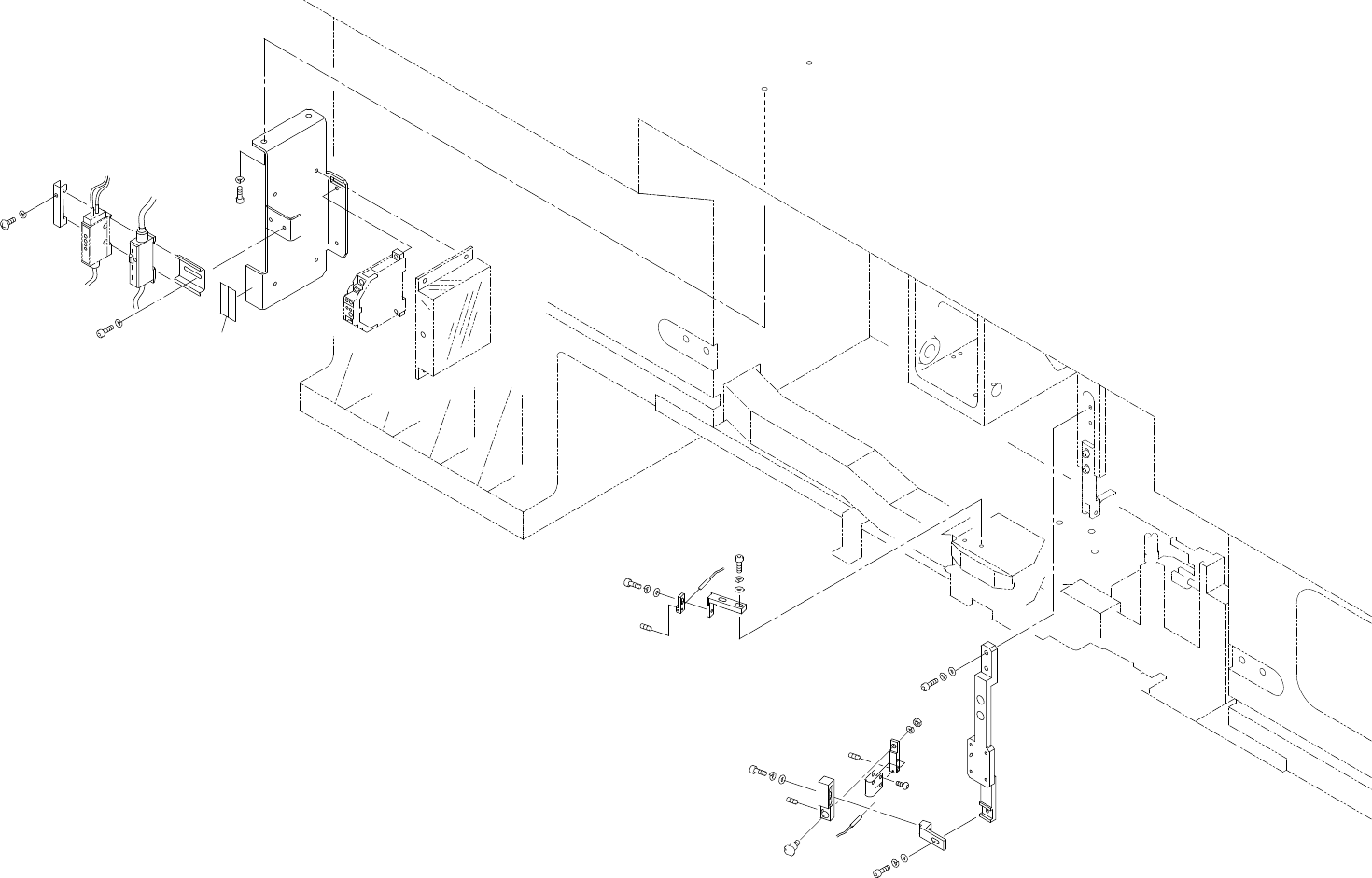

13.第2 ST(パーツチェック)(WGZ)
13.ST 2(Parts check)(WGZ)
13.第2 ST(パーツチェック)(WGZ)
13.ST 2(Parts check)(WGZ)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
A
x2
5
16
18
14
6
4
21
20
21
25
21
33
24
9
8
10
22
19
27
21
23
4
35
24
17
7
22
30
27
1
17
23
20
15
32
31
34
21
24
36
37
12,28,29
