Retrofit instructions Nozzle changer SIPLACE H S-50 / HS-60 / D4 06/2006 Edition 28 2.12 Inst alling the 2nd nozzle changer Fig. 2 - 3 shows the locations for inst alling the first and secon d nozzle changer for each gan…

Retrofit instructions Nozzle changer SIPLACE HS-50 / HS-60 / D4

06/2006 Edition

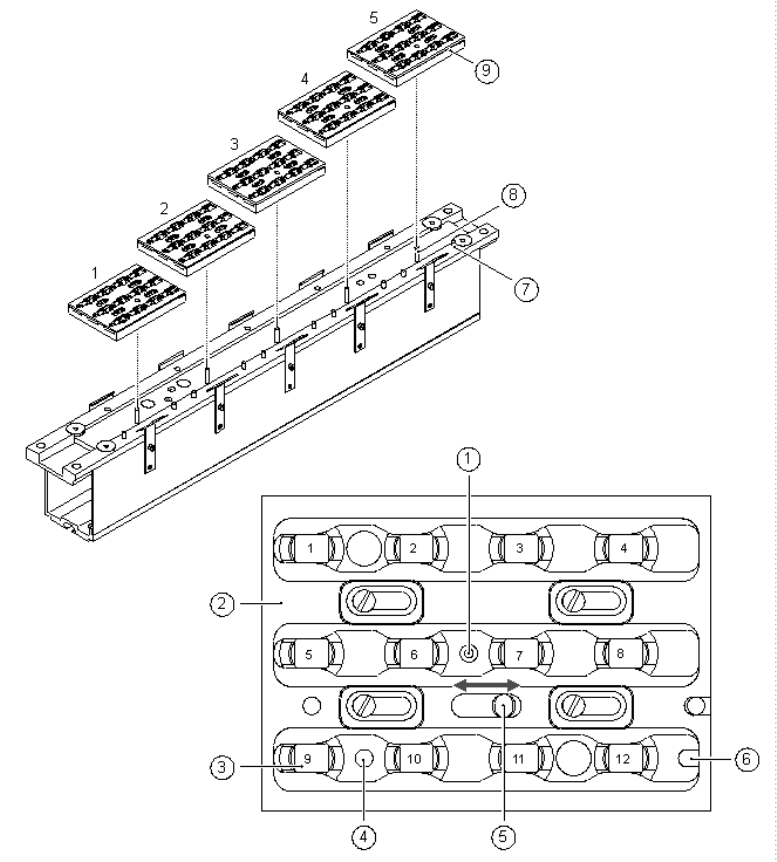

Fig. 2 - 7 Magazine and nozzle garages

(1) Positioning fiducial

(2) Locking plate

(3) Nozzle garage

(4) Hole for the parallel pin (7) for centering the magazines

(5) Hole for the parallel pin of the slide mechanism

(6) Slot for the parallel pin (7) for centering the magazines

(7) Parallel pin for centering the magazines

(8) Parallel pins for opening and closing the locking plate

(9) Magazines

Retrofit instructions Nozzle changer SIPLACE HS-50 / HS-60 / D4

06/2006 Edition

2.12 Installing the 2nd nozzle changer

Fig. 2 - 3 shows the locations for installing the first and second nozzle changer for each gantry .2

: Detach the plug from the y-adapter on the blue compressed air line.

: Before installation, position the nozzle changer (item 1 to 4 in Fig. 2 - 1) so that the opening for

the electrical and pneumatic connections at the bottom (item A in Fig. 2 - 1) is pointing in the

direction shown in Fig. 2 - 1.

: Plug the control cable (item 9 in Fig. 2 - 3 into the control board and secure in place with the

two screws.

The assignment of control cables to nozzle changers is shown in table 2 - 1.

: Make sure that the contact surface (item 8 in Fig. 2 - 3) for the nozzle changer on the used tape

guide channel is clean.

: Place the nozzle changer (item 5 in Fig. 2 - 3) on the used tape guide channel (item 1 in Fig.

2 - 3) at the point indicated by with item 8 in Fig. 2 - 3.

: Start by loosely tightening the four M4 x 16 hexagon socket-head screws (item 6 in Fig. 2 - 3).

: Then fully tighten the four M4 x 16 hexagon socket-head screws in a diagonally opposite se-

quence.

: Attach the blue compressed air hose of the nozzle changer to the y-adapter.

: Check the connectors of the CAN I/O module 3 in sector distributor 1 (see section 2.9.

: Make the settings described in section 2.10.

: Commissioning the nozzle changer (see section 2.11).
