Installation Manual, Station Software Version 601.03 Edition 03/2006
4.2.1.2 Calibrating the touchscreen
Select Start Æ Settings Æ TouchWare, to start the TouchWare Properties applet.

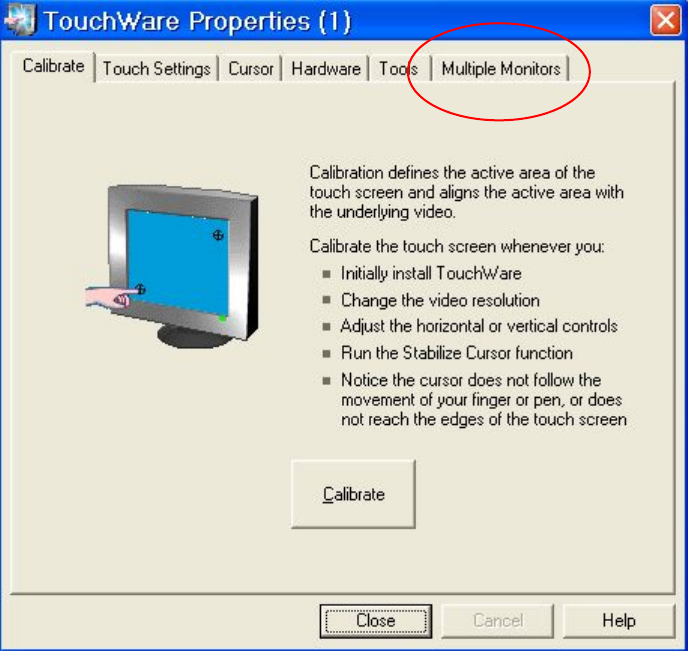

Fig. 4-2: TouchWare Properties
→ Open the Multiple Monitors tab.
18 of 88
Installation Manual, Station Software Version 601.03 Edition 03/2006

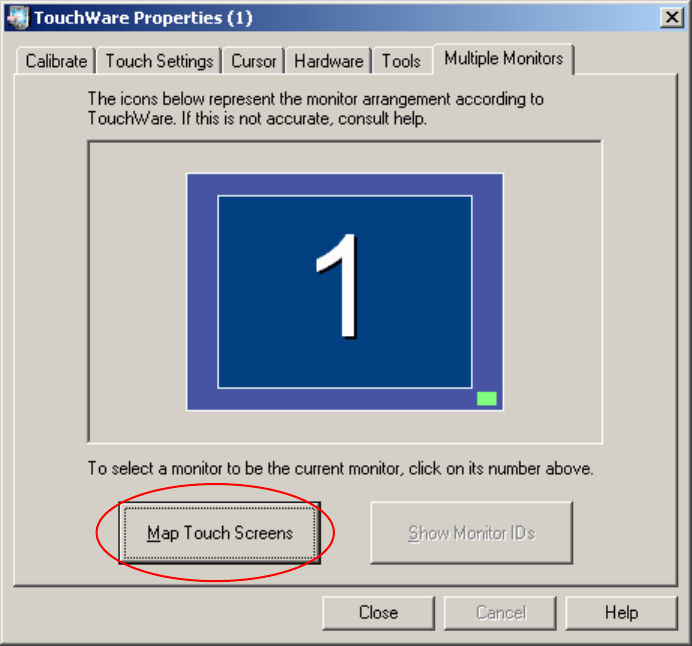

Fig. 4-3: TouchWare Properties – Multiple Monitors tab
→ Click the Map Touch Screens button.
The "Multiple Monitor Layout" dialog box appears.
19 of 88
Installation Manual, Station Software Version 601.03 Edition 03/2006

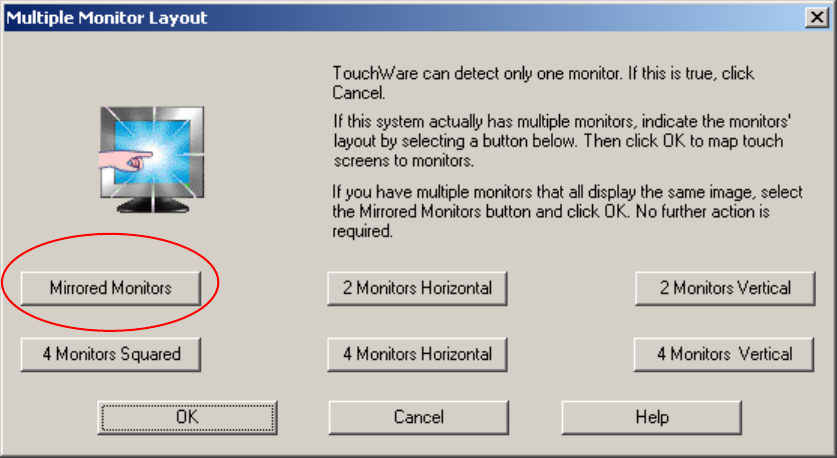

Fig. 4-4: "Multiple Monitor Layout" dialog box
→ Click the Mirrored Monitors button.
→ Confirm your entry with OK.
The touchscreens are now mapped and the "Multiple Monitors" tab is displayed again.
20 of 88
