Flux dispenser 80F4/6
Page 5 / 7 23.11.2021
Flux dispenser 80F4/6
Page 6 / 7 23.11.2021
Pos. Item no. Description Part marking
00117200-01 FLUX DISPENSER SIPLACE 80F4/6
00334807-01 DOSING PUMP F4/6 CPL.
1 00325629S01 MODULAR DIGITAL PUMP XP 3000
2 00325632S01 SYRING 1ML
3 00325084S01 MAGNETIC VALVE
00325380-02 Z-AXIS COMPLETE
4 00325797-01 CYLINDER Z-AXIS
5 00325167S01 CENTERING NOZZLE
6 00301725-01 O-RING 21,1*3 72 NBR 872 (SIMRIT)
7 00301724-01 O-RING 17,3*2,4 72 NBR 872
(SIMRIT)
8 00301757-01 PRESSURE SPRING 24*45*1,4
9 00325781-02 DETECTOR REFILL
10 00325779-02 DETECTOR EMPTY
11 00201464-01 HEXAGON SOCKET HEAD CAP
SCREW
12 00845015-01 HEXAGON SOCKET HEAD CAP
SCREW M3 X 10-8.8
13 00320841-01 LOCK NUT M4
14 00845025-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 10-8.8
15 00323961-01 CABLE:LIGHT BARRIER Z-AXIS
BOTTOM
SPARE PART
16 00323960-01 CABLE LIGHT BARRIER Z-AXIS SPARE PART
17 00325183-01 RINSING TANK COMPLETE
18 00325119S01 CENTRIFUGAL PIPE SPARE PART
00323901-02 COMPONENTS ILLUMINATION FLUX
00323902-01 CABLE: CONTROLLER FLUX PUMP
00323903-01 CABLE: FLUX MONITORING
00324119-02 CABLE V24 FLUX
00323942-01 CONVERSION BOARD FLUX
19 00330895S01 ROUND BRUSH NR.8 DI=5; DA=24
PA 6
20 00331024S01 DOSING NEEDLE COMPLETE
21 00331025-01 SEALING CAP TYPE D
00330027-06 ADAPTER NOZZLE 4XX TO 7XX/9XX WEAR PART
00331031-01 SOKO FLUX: LIGHT BARRIER PCB
Flux dispenser 80F4/6
Page 7 / 7 23.11.2021

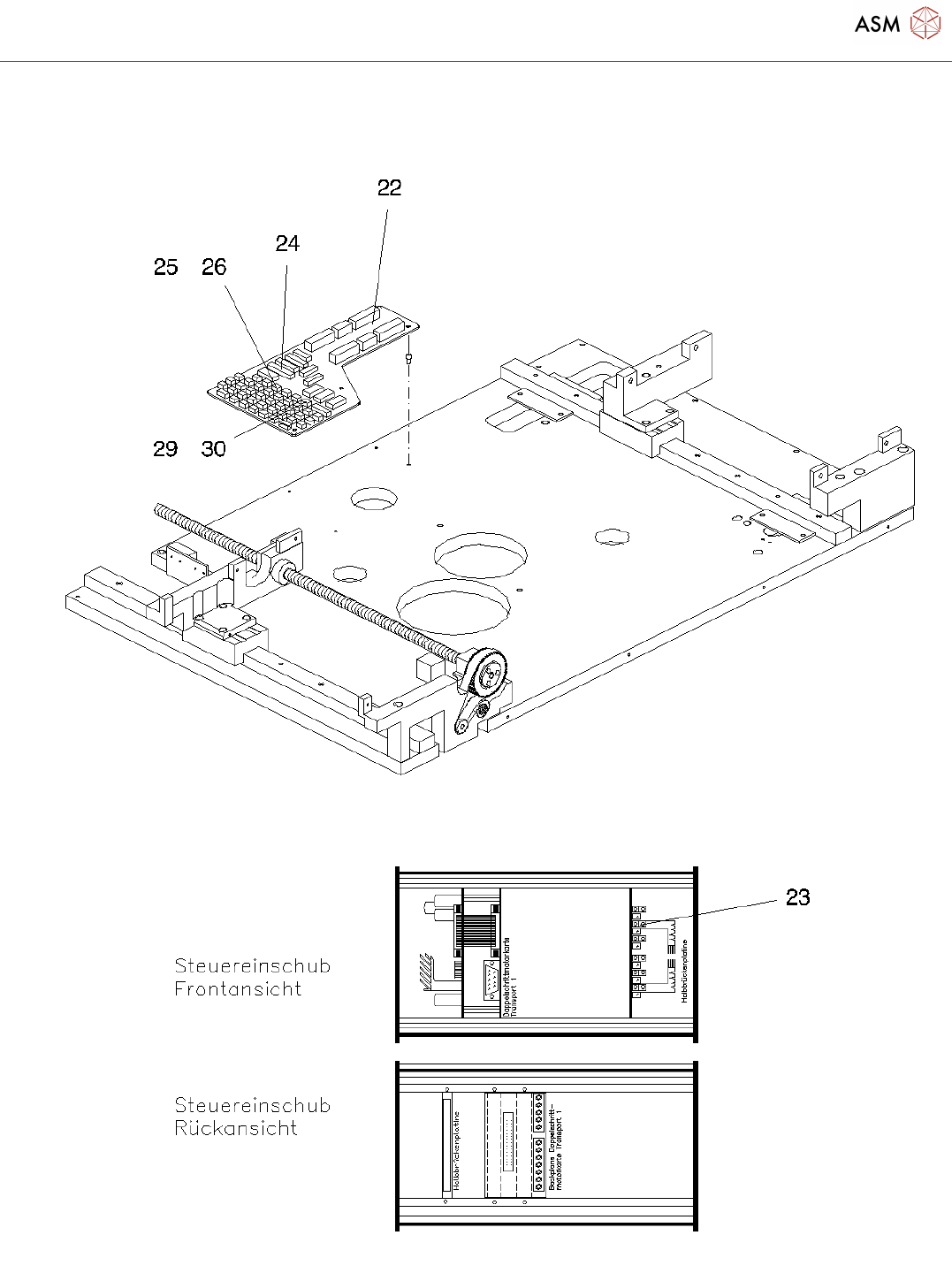

Pos. Item no. Description Part marking
OUTPUT
22 00325581-03 CONVERSION BOARD DUAL
CONVEYOR
SPARE PART
23 00328606-01 HALF BRIDGE RECTIFIER PC-BOARD Spare Part
24 00331297-01 CABLE: I/O CONVEYOR BELTS
30-POLE
00332439-01 CABLE I/O CONVEYOR BELT
OPT.FLUX
25 00330946-01 PCB OUTPUT BELT 1 (RAMP
CONTROL FLUX)
26 00311944-01 3-BEAM LIGHT BARRIER MQW20C-
DC 12-24V
Spare
00332441-01 PCB OUTPUT BELT 1 RAMP
CONTROL FLUX
00311944-01 3-BEAM LIGHT BARRIER MQW20C-
DC 12-24V
Spare
29 00330949-01 PCB OUTPUT BELT 2 (RAMP
CONTROL FLUX)
30 00311944-01 3-BEAM LIGHT BARRIER MQW20C-
DC 12-24V
Spare
