Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts) Bildtafel (Figure) 35 Ausgabe (Edition) 11-03 35 6 -
Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts)
Bildtafel (Figure) 35
A
usgabe (Edition) 11-03

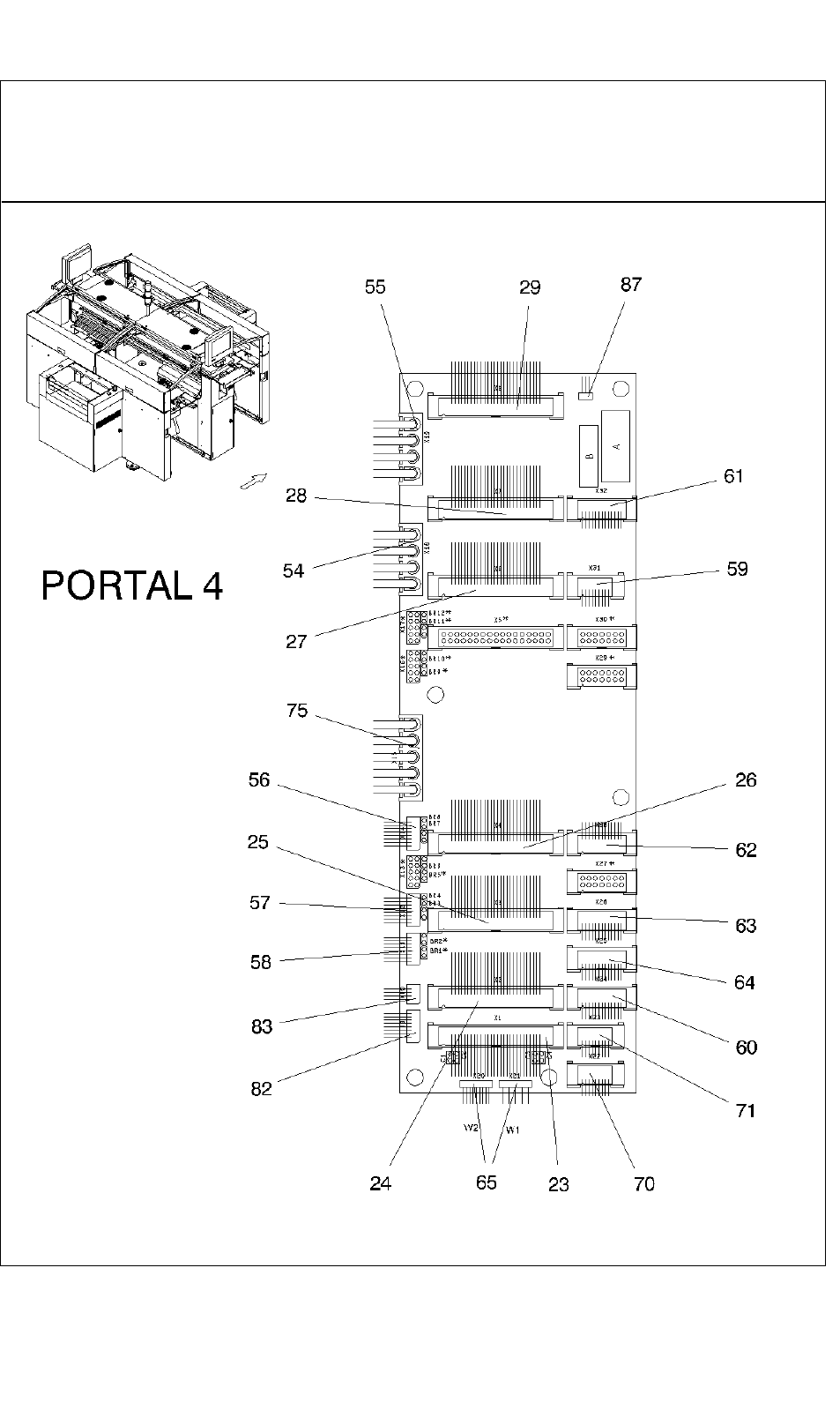

Portalverteiler
Portal distributor
35 5 -
Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts)
Bildtafel (Figure) 35
Ausgabe (Edition) 11-03
35 6 -
Teilekatalog (Parts Catalog) Bebilderte Teileliste (Illustrated Parts)
Bildtafel (Figure) 35
A
usgabe (Edition) 11-03
Stamm Nr.
Master Code
Bezeichnung / Designation
Stck.
Qty.
Pos.-Nr.
Pos. No.
Seiten-Nr.
Page No.
A
rtikel-Nr.
Item No.
FS
FS
Portalverteiler / Portal distributor
Order
1
00335413-03
4
35-1
EPORTALVERTEILER S50
PORTAL DISTRIBUTOR S50
2
00330953-01
12
35-1
KONTAKTSCHEIBE F. SCHRAUBE M4
CONTACT WASHER FOR SCREW M4
3
00845026-01
8
35-1
DIN912-M4 X 12-8.8 ZYLINDERSCHRAUBE
DIN912-M4 X 12-8.8 HEXAGON SOCKET HEAD CAP SCREW
4
00335108-01
2
35-2
EPORTALKABEL 1/3: CAN-BUS / BE-LP-KAMERA
GANTRY CABLE 1/3: CAN-BUS / BE-LP-CAMERA
5
00335109-01
2
35-2
EPORTALKABEL 1/3: SPUR X-ACHSE
PORTAL CABLE 1/3: TRACK X-AXIS
6
00335110-01
2
35-2
EPORTALKABEL 1/3: SPUR/MOTOR Z/DP-ACHSE
PORTAL CABLE 1/3: TRACK/MOTOR Z/DP-AXIS
7
00335111-01
2
35-2
EPORTALKABEL 1/3: SPUR/MOTOR STERN-ACHSE
PORTAL CABLE 1/3: TRACK/MOTOR STAR-AXIS
8
00335112-01
2
35-2
EPORTALKABEL 1/3: SPUR Y / MOTOR X-ACHSE
PORTAL CABLE 1/3: TRACK Y / MOTOR X-ACHSE
9
00335113-01
2
35-2
EPORTALKABEL 1/3: SPUR Y/MOTOR X/Y-ACHSE
PORTAL CABLE 1/3: TRACK Y/MOTOR X/Y-ACHSE
10
00335114-01
2
35-2
EPORTALKABEL 1/3: SPUR Y/MOTOR X/Y-ACHSE
PORTAL CABLE 1/3: TRACK Y/MOTOR X/Y-ACHSE
11
00335115-02
1
35-2
KABEL HS50: MOTOR X1-ACHSE
CABLE HS50: MOTOR X1-AXIS
12
00335117-02
1
35-2
KABEL HS50: MOTOR Y1-ACHSE
CABLE HS50: MOTOR Y1-AXIS
13
00335118-02
1
35-2
KABEL HS50: MOTOR STERN1-ACHSE
CABLE HS50: MOTOR STAR1-AXIS
14
00335119-01
1
35-2
KABEL HS50: MOTOR/TACHO Z1-ACHSE
CABLE HS50: MOTOR/TACHO Z1-AXIS
15
00335120-01
1
35-2
KABEL HS50: MOTOR/TACHO DP1-ACHSE
CABLE HS50: MOTOR/TACHO DP1-AXIS
16
00335121-01
1
35-2
KABEL HS50: CRASH-SIGNAL PORTAL 1
CABLE HS50: CRASH SIGNAL PORTAL 1
17
00335127-01
1
35-2
KABEL HS50: SPURSIGNALE X1-MOTOR
CABLE HS50: TRACK SIGNALS X1-MOTOR
18
00335128-01
1
35-2
KABEL HS50: SPURSIGNALE Y1-MOTOR
CABLE HS50: TRACK SIGNALS Y1-MOTOR
19
00335129-01
1
35-2
KABEL HS50: SPURSIGNALE STERN1-MOTOR
CABLE HS50: TRACK SIGNALS STAR1-MOTOR
20
00335130-01
1
35-2
KABEL HS50: SPURSIGNALE Z1-MOTOR
CABLE HS50: TRACK SIGNALS Z1-MOTOR
21
00335131-01
1
35-2
KABEL HS50: SPURSIGNALE DP1-MOTOR
CABLE HS50: TRACK SIGNALS DP1-MOTOR
22
00335132-01
1
35-2
KABEL HS50: BE/LP-KAMERA PORTAL 1
CABLE HS50: COMP./PCB-CAMERA PORTAL 1
35 7 -
