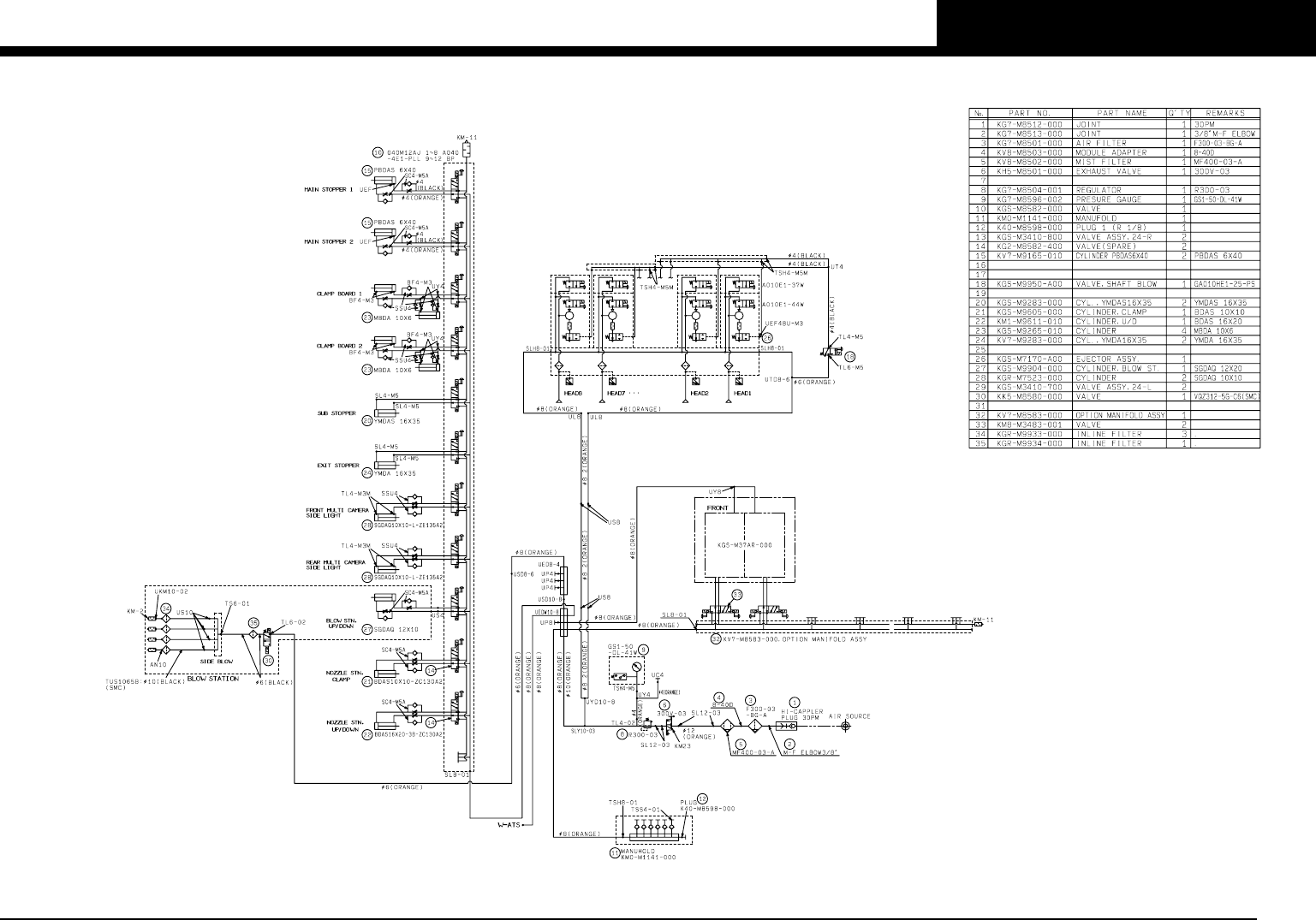

Air circuit (YG100) W-ATS
PAGE
32
YG100 (KGS)
Confi dential & Proprietary
H8952

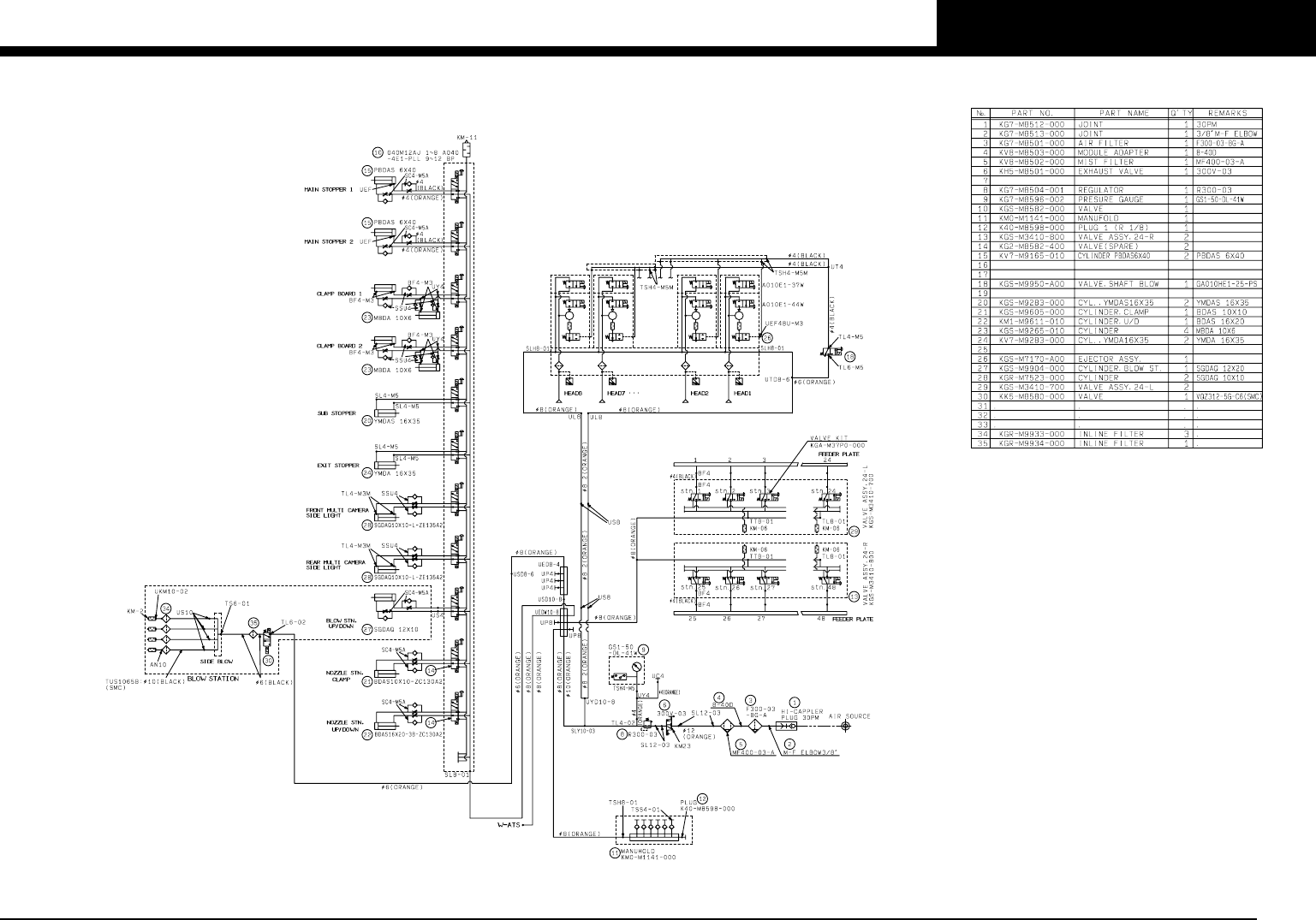

Air circuit (YG100) FES & W-ATS
PAGE
33
Wiring parts list
Confi dential & Proprietary
KGS-0510
No Part No. Part Name Q'ty Remarks No Part No. Part Name Q'ty Remarks
1 KGS-M661A-020 HNS,QF-TM11 1 J001 38 90K30-244100 HNS,PE 1000 1 J078
2 KGS-M661E-000 HNS,TM11-QF31 1 J002 39 90K30-244060 HNS,PE 600 1 J080
3 KGS-M661F-001 HNS,QF31-NF11 1 J003 40 90K30-444080 HNS,EARTH 1 J081
4 KGS-M661G-002 HNS,NF11-KM10 1 J004 41 KG2-M536A-220 HNS,PE 150 8 J082~J088,J096
5 KGS-M661H-000 HNS,C/R POWER 1 J005 42 KM0-M536A-010 HNS,PE 70 2 J089,J090
6 KGS-M661J-001 HNS,TM11-QF32 1 J006 43 90K30-255030 HNS,PE 300 1 J091
7 KGS-M661K-001 HNS,QF32 XT31-GS31 1 J007 44 90K30-255015 HNS,PE 150 1 J092
8 KM6-M66M1-102 HNS,TAP CHANGE 10 J010~J019 45 90K30-245080 HNS,EARTH 800 1 J093
9 KM6-M66M1-202 HNS,TAP CHANGE 1 J020 46 90K30-244080 HNS,EARTH 800 2 J094,J095
10 KGS-M662A-010 HNS,TC11-QF21 XT21 1 J021 47 KGS-M668A-001 HNS,I/O A 1 J101
11 KM6-M66M4-001 HNS 18-4 (JUMPER) 1 J022 48 KGS-M668E-000 HNS,I/O B 1 J102
12 KGS-M662E-001 HNS,QF21 XT21-GS21 1 J023 49 KGS-M668F-000 HNS,CN16 I/O 1 J103
13 KGT-M661F-100 HNS,CRT_PWR 1 J024 50 KGS-M668G-001 HNS,Y-FLEX I/O A 1 J104
14 KGA-M662M-001 HNS,U10 JUMPER 1 J026 51 KGS-M668H-000 HNS,X-FLEX CUNET A 1 J105
15 KGS-M662F-010 HNS,TM11-TC11 1 J027 51-1 KGS-M668H-010 HNS,X-FLEX I/O A 1 J105 (not compatible)
16 KGA-M662H-032 HNS,EXT.POWER 1 J028 52 KG2-M669R-113 HNS,BUZZER 1 J109
17 KGS-M663A-000 HNS,I/F-DC24V 1 J041 53 KGK-M6680-100 HNS,USB-FDD 3M ASSY 1 J110
18 KGS-M663E-000 HNS,I/O POWER 1 J042 54 KGS-M66A1-001 HNS,SRVA 1 J121
19 KGS-M663F-010 HNS,Y-FLEX HEAD PWR 1 J043 55 KGS-M66A2-000 HNS,Y-FLEX SRVA 1 J122
20 KGS-M663G-020 HNS,X-FLEX HEAD PWR 1 J044 56 KGS-M66A3-000 HNS,X-FLEX SRVA 1 J123
20-1 KGS-M663G-030 HNS,X-FLEX HEAD PWR 1 J044 (not compatible) 56-1 KGS-M66A3-010 HNS, I/O HEAD SRVA 1 J123 (not compatible)
21 KGS-M663H-001 HNS,CONV.PWR 1 1 J045 57 KGS-M66A4-000 HNS,PI1 1 J124
22 KGS-M663J-000 HNS,CONV.PWR 2 1 J046 58 KGS-M66A5-000 HNS,PI2 1 J125
23 KGS-M663K-001 HNS,CONV.PWR 3 1 J047 59 KGS-M66A6-001 HNS,BASE X1P 1 J126
24 KGS-M663L-000 HNS,FAN PWR 1 J048 60 KGS-M66A7-000 HNS,Y-FLEX X1P 1 J127
25 KGS-M663M-000 HNS,LED DRIVER 1 J049 61 KGS-M66A8-001 HNS,BASE W1P 1 J128
26 KGS-M663R-020 HNS,CN46 +24V 1 J051 62 KGS-M66A9-001 HNS,BASE PU1P 1 J129
27 KGS-M664A-000 HNS,GS31-KM11 XT32 1 J052 63 KGS-M66AA-000 HNS,BASE Y1P 1 J130
28 KGS-M664E-010 HNS,KM11 LOOP 1 J053 64 KGS-M66AE-000 HNS,BASE Y2P 1 J131
29 KGS-M664G-000 HNS,KM11A-RESISTOR 1 J054 65 KGS-M66E1-011 HNS,MO1 1 J141
30 KGS-M664F-000 HNS,KM11 +48V 1 J055 66 KGS-M66E2-020 HNS,MO2 1 J142
31 KGS-M665A-011 HNS,BRAKE 1 J061 67 KGS-M66E3-010 HNS,Y-FLEX X1M 1 J143
32 KGT-M665A-000 HNS,CONV. DRIVER 2 J062,J063 68 KGS-M66F1-000 HNS,AREA 1 J161
33 KGS-M665E-001 HNS,CONV. MOTOR 2 J064,J065 69 KGS-M66F2-000 HNS,CN22 XOT 1 J162
34 KV8-M66L1-001 HNS,FG-C/R 1 J071 70 KGS-M66F3-002 HNS,EMG 1 J163
35 KV8-M536E-100 HNS 302 2 J072,J074 71 KGS-M66F4-020 HNS,CONTACTOR 1 J164
36 90K30-444160 HNS,EARTH 2 J073,J079 72 KGS-M66F5-010 HNS,KM10-KM11 1 J165
37 90K30-244150 HNS,FG-NF11 3 J075-J077 73 KGA-M667J-002 HNS,EMG SW 2 J166,J167
