POWER SUPPLY M37 M37 POWER SUPPLY ENCLOSURE 5.16 Technical Reference Manual Chapter Issue 13, Jan 17 M37 Rear Panel Connector Description Conn ector Des cription M37SK01 +5.5V (Spare) M37SK18 Camera X Servo Motor Power (…
POWER SUPPLY M37
M37 POWER SUPPLY ENCLOSURE
Chapter Issue 13, Jan 17 Technical Reference Manual 5.15

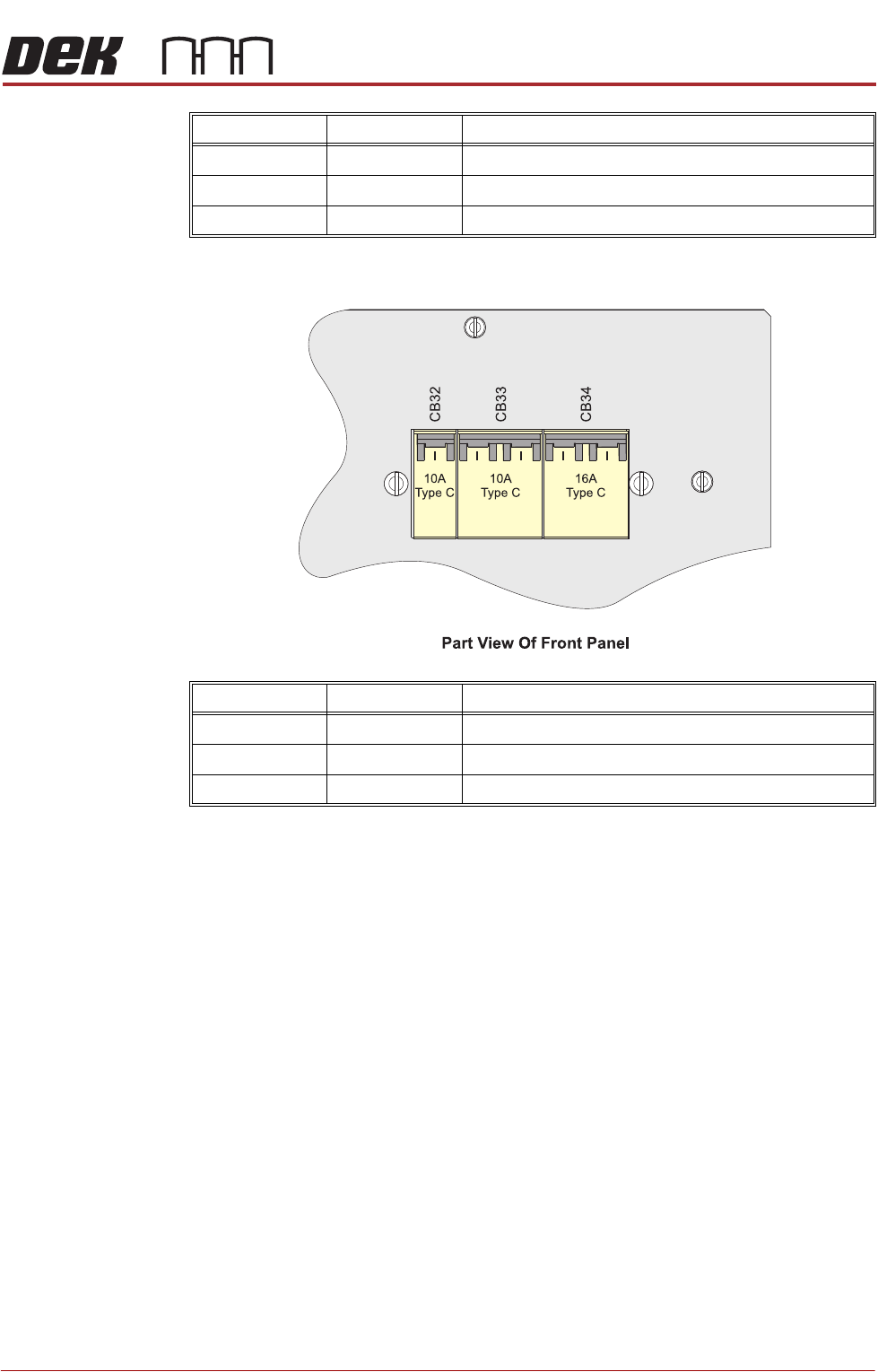

CB29 3.15A +12V Spare
CB30 1.5A +12V Barcode Readers
CB31 3.15A +24V US Servo Logic
CCT Breaker Current Rating CCT Breaker Function
CCT Breaker Current Rating CCT Breaker Function
CB32 10A +42V or +48V Servo DC Supply
CB33 10A Mains Supply PC and Monitor
CB34 16A Mains Supply Internal Vac Pump
POWER SUPPLY M37
M37 POWER SUPPLY ENCLOSURE
5.16 Technical Reference Manual Chapter Issue 13, Jan 17

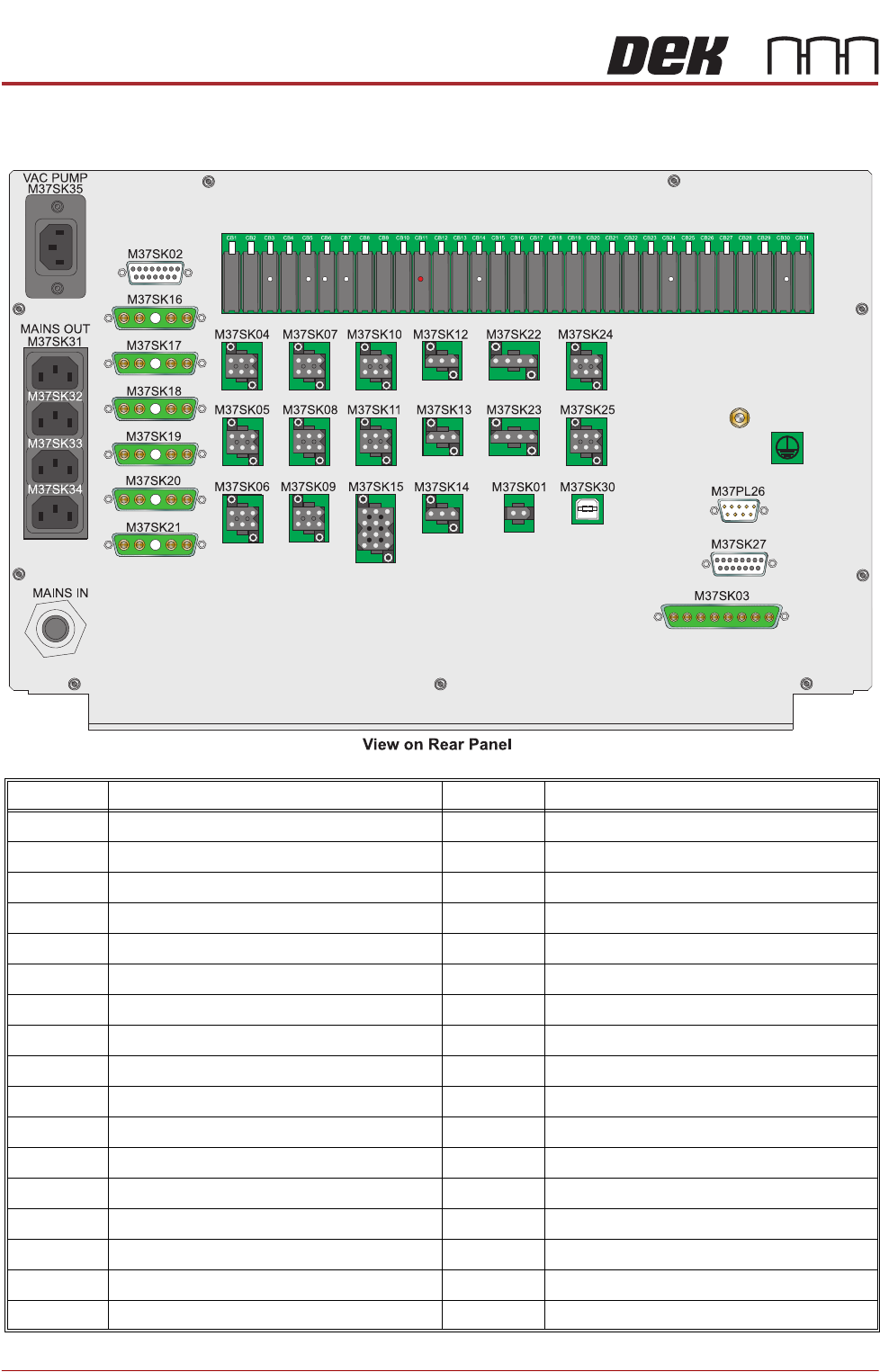

M37 Rear Panel
Connector Description Connector Description
M37SK01 +5.5V (Spare) M37SK18 Camera X Servo Motor Power (Rotary)
M37SK02 Low Current DC M37SK19 Camera Y Servo Motor Power (Rotary)
M37SK03 High Current DC M37SK20 Not Used
M37SK04 Machine I/O Node (Node 2) M37SK21 Camera X & Y Servo Motor Power (Linear)
M37SK05 Print Carriage I/O Node (Node 3) M37SK22 Front Cover Interlock
M37SK06 Screen Cleaner I/O Node (Node 4) M37SK23 Interlock Blanking Plug
M37SK07 M40 Dual Lane Controller M37SK24 External E Stop/E Stop Blanking Plug
M37SK08 Paste Dispenser I/O Node (Node 10) M37SK25 Left and Right E Stop Buttons
M37SK09 HTC Enclosure M37PL26 Safety I/O
M37SK10 Grid-Lok Tooling M37SK27 MMI
M37SK11 Internal Lighting/Air Ionizer M37SK30 USB Port
M37SK12 +12V Spare M37SK31 PC Supply
M37SK13 Remote Barcode Reader M37SK32 Monitor Supply
M37SK14 2D Handheld Barcode Reader M37SK33 Spare
M37SK15 Machine Fans M37SK34 Spare
M37SK16 Rising Table Servo Motor Power M37SK35 Internal Vac Pump Supply
M37SK17 Print Carriage Servo Motor Power
POWER SUPPLY M37
M37 POWER SUPPLY ENCLOSURE
Chapter Issue 13, Jan 17 Technical Reference Manual 5.17
M37SK01
M37SK02
M37SK03
Pin No. Signal Pin No. Signal
1 +5.5V (Spare) 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 -12V (NextMove ES) 9 +24V SW (NextMove I/F, MIU)
2 -12V (NextMove ES) 10 +24V SW (NextMove I/F, MIU)
3 +5.5V (NextMove ES) 11 0V Return
4 +5.5V (NextMove ES) 12 0V Return
5 +24V US (NextMove I/F, MIU,
Camera Lighting)
13 N/C
6 +24V US (NextMove I/F, MIU,
Camera Lighting)
14 N/C
7 0V Return 15 N/C
80V Return
15 Way D Type Socket
9
1
Pin No. Signal Pin No. Signal
1 +12V (NextMove ES, Sensors) 5 +24V US (EuroFlex, Stepper Logic,
Fans)
20V Return 60V Return
3 +24V SW (Belt Motors) 7 +24V SW (Steppers)
40V Return 80V Return
8 Way Power D Type Socket
