POWER SUPPLY M37 M37 POWER SUPPLY ENCLOSURE Chapter Issue 13, Jan 17 Technical Reference Manual 5.19 M37SK16 to M37SK21 M37SK22 M37SK23 Pin No. Signal Pin No. Signal 1 Servo dc Supply 4 24V U S (Motor Logic) 20 V R e t u…
POWER SUPPLY M37
M37 POWER SUPPLY ENCLOSURE
5.18 Technical Reference Manual Chapter Issue 13, Jan 17

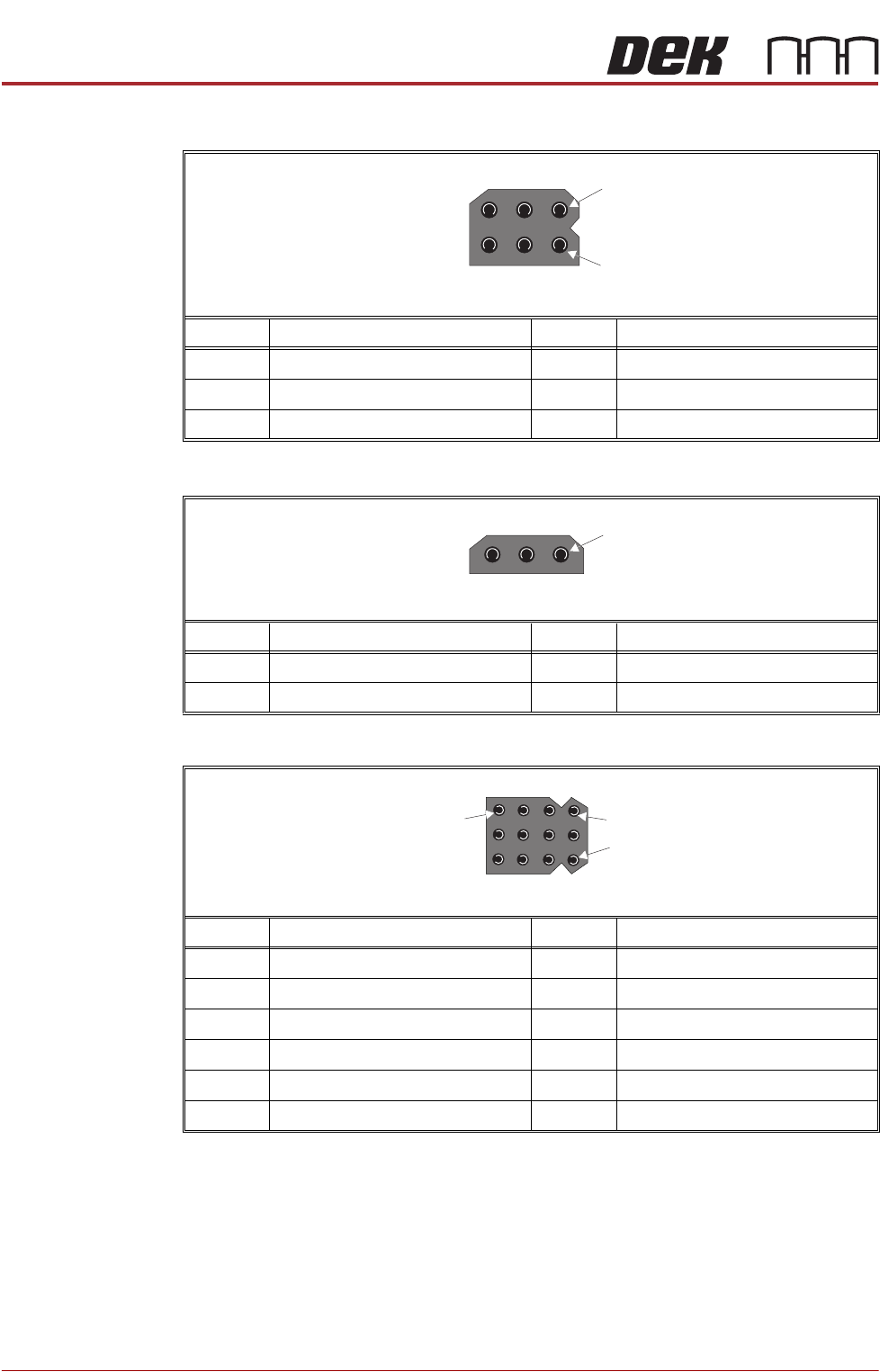

M37SK04 to M37SK11
M37SK12 to M37SK14
M37SK15
Pin No. Signal Pin No. Signal
1+24V US 40V Return
20V Return 5+12V
3+24V SW 60V Return
Pin No. Signal Pin No. Signal
1+12V 30V
2N/C
4
1
6 Way Trident Socket
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 +24V US 7 +24V US
20V Return 80V Return
3 +24V US 9 +24V US
4 0V Return 10 0V Return
5 +24V US 11 +24V US
6 0V Return 12 0V Return
12 Way Trident Socket
1
12
3
POWER SUPPLY M37
M37 POWER SUPPLY ENCLOSURE
Chapter Issue 13, Jan 17 Technical Reference Manual 5.19

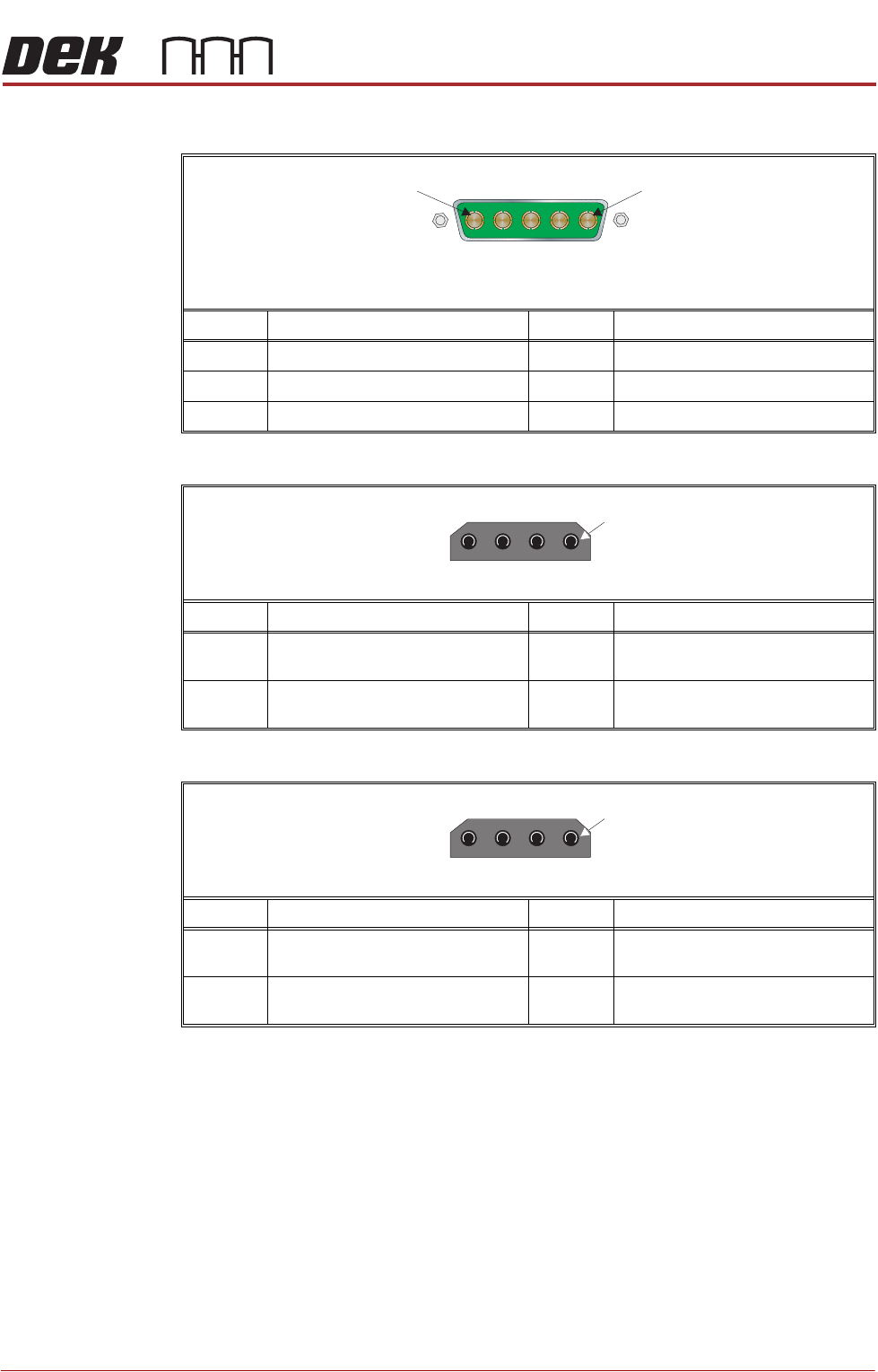

M37SK16 to M37SK21
M37SK22
M37SK23
Pin No. Signal Pin No. Signal
1 Servo dc Supply 4 24V US (Motor Logic)
20V Return 50V Return
3N/C
1
5
5 Way Power D Type
Socket
Pin No. Signal Pin No. Signal
1 E Stop Loop Supply to Front Cover
Interlock
3 0V from Front Cover Interlock
2 E Stop Loop Supply from Front
Cover Interlock
4 0V to Front Cover Interlock
1
4 Way Trident Socket
Pin No. Signal Pin No. Signal
1 E Stop Loop Supply to Interlock
Blanking Plug
3N/C
2 E Stop Loop Supply from Interlock
Blanking Plug
4N/C
1
4 Way Trident Socket
POWER SUPPLY M37
M37 POWER SUPPLY ENCLOSURE
5.20 Technical Reference Manual Chapter Issue 13, Jan 17

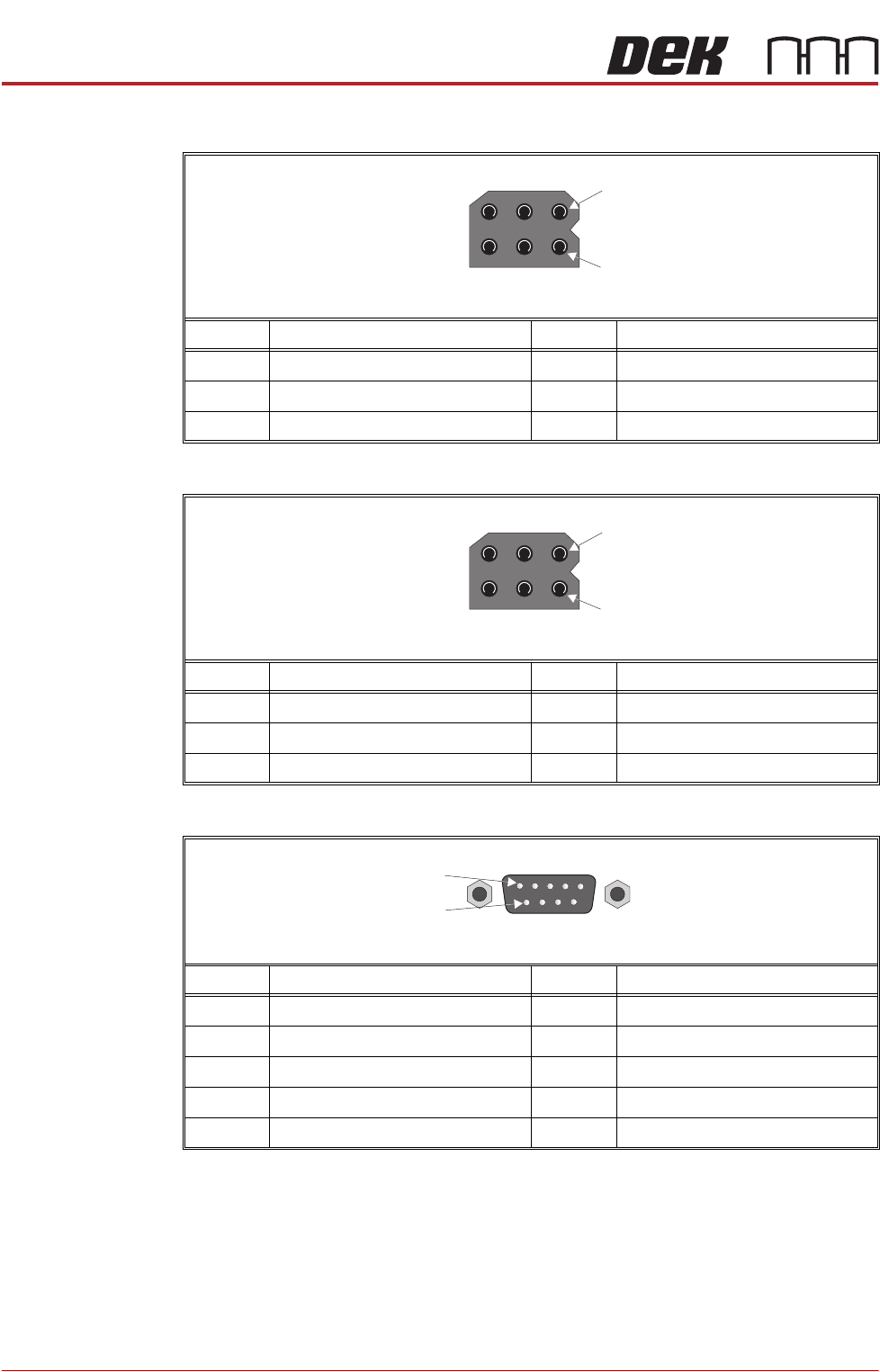

M37SK24
M37SK25
M37PL26
Pin No. Signal Pin No. Signal
1 External E Stop Link to Pin 5 4 N/C
2 External E Stop Link to Pin 3 5 External E Stop Link from Pin 1
3 External E Stop Link from Pin 2 6 N/C
4
1
6 Way Trident Socket
Pin No. Signal Pin No. Signal
1 E Stop Loop to Pin 5 4
2 E Stop Loop to Pin 3 5 E Stop Loop from Pin 1
3 E Stop Loop from Pin 2 6 N/C
4
1
6 Way Trident Socket
Pin No. Signal Pin No. Signal
1 N/C 6 Cover Interlock
2 Jog Left 7 E Stop Loop Supply
3 Jog Right 8 0V
4N/C 9N/C
5 Power On Monitor
9 Way D Type Plug
1
6
