MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
7.18 Technical Reference Manual Chapter Issue 12, Feb 18

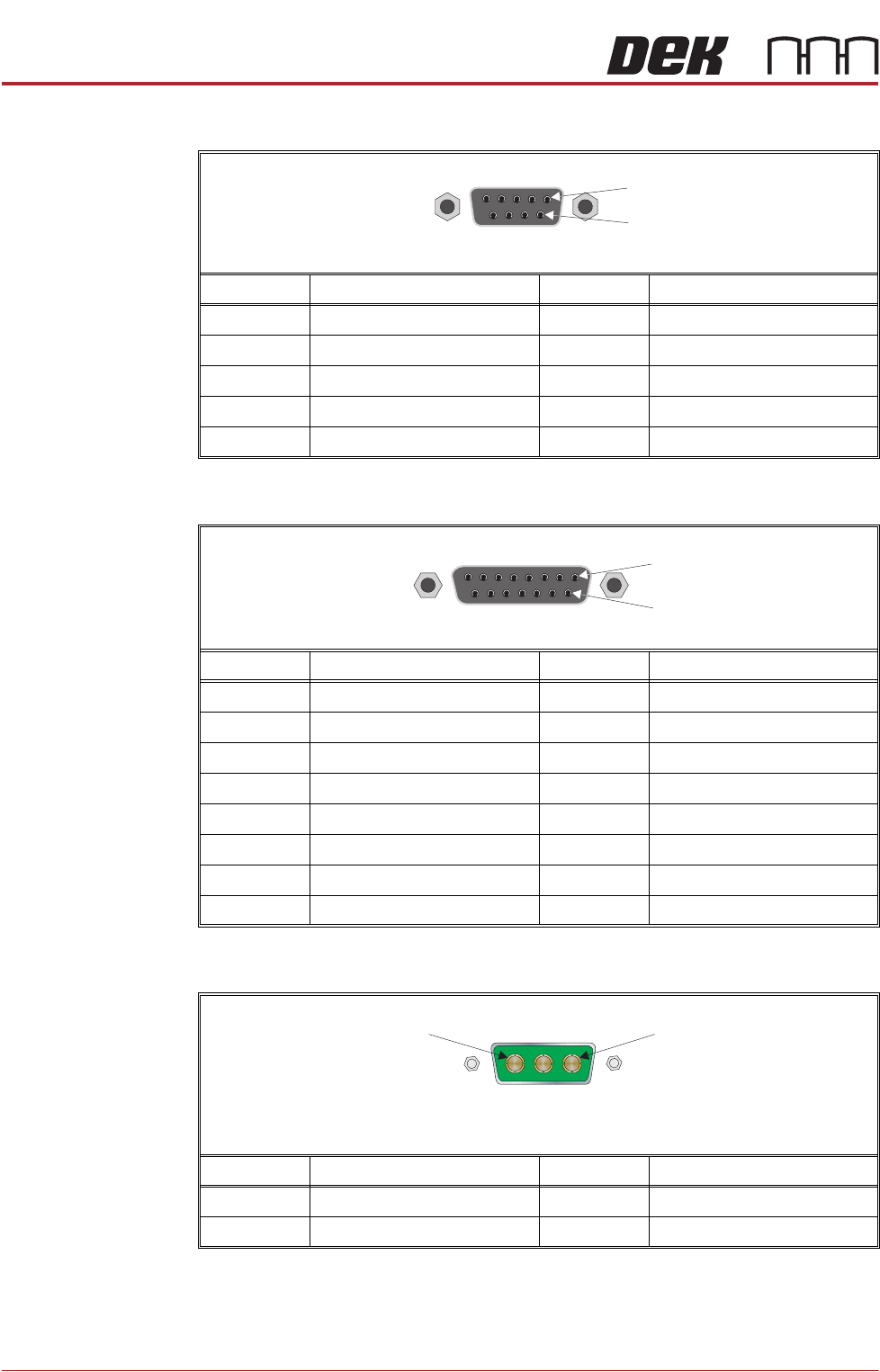

M36SK01 (Camera Y Encoder - Linear Drive Machines Only)
M36SK02 (Camera Y Hall Sensors - Linear Drive Machines Only)
M36SK03 (Camera Y Motor Power - Linear Drive Machines Only)
Pin No. Signal Pin No. Signal
1 +5.5V 6 ! Index
2 Index 7 0V
3 ! CHB 8 CHB
4 Chassis 9 ! CHA
5CHA
Pin No. Signal Pin No. Signal
1 +5.5V 9 N/C
20V 10N/C
3 Hall U - 11 N/C
4 Hall V + 12 N/C
5 Hall U + 13 N/C
6 Hall W - 14 N/C
7 Hall V - 15 N/C
8 Hall W +
Pin No. Signal Pin No. Signal
1 MTR Phase W 3 MTR Phase U
2 MTR Phase V
9 Way D Type Socket
1
6
15 Way D Type Socket
9
1
3
1
3 Way Power D Type
Socket
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 12, Feb 18 Technical Reference Manual 7.19

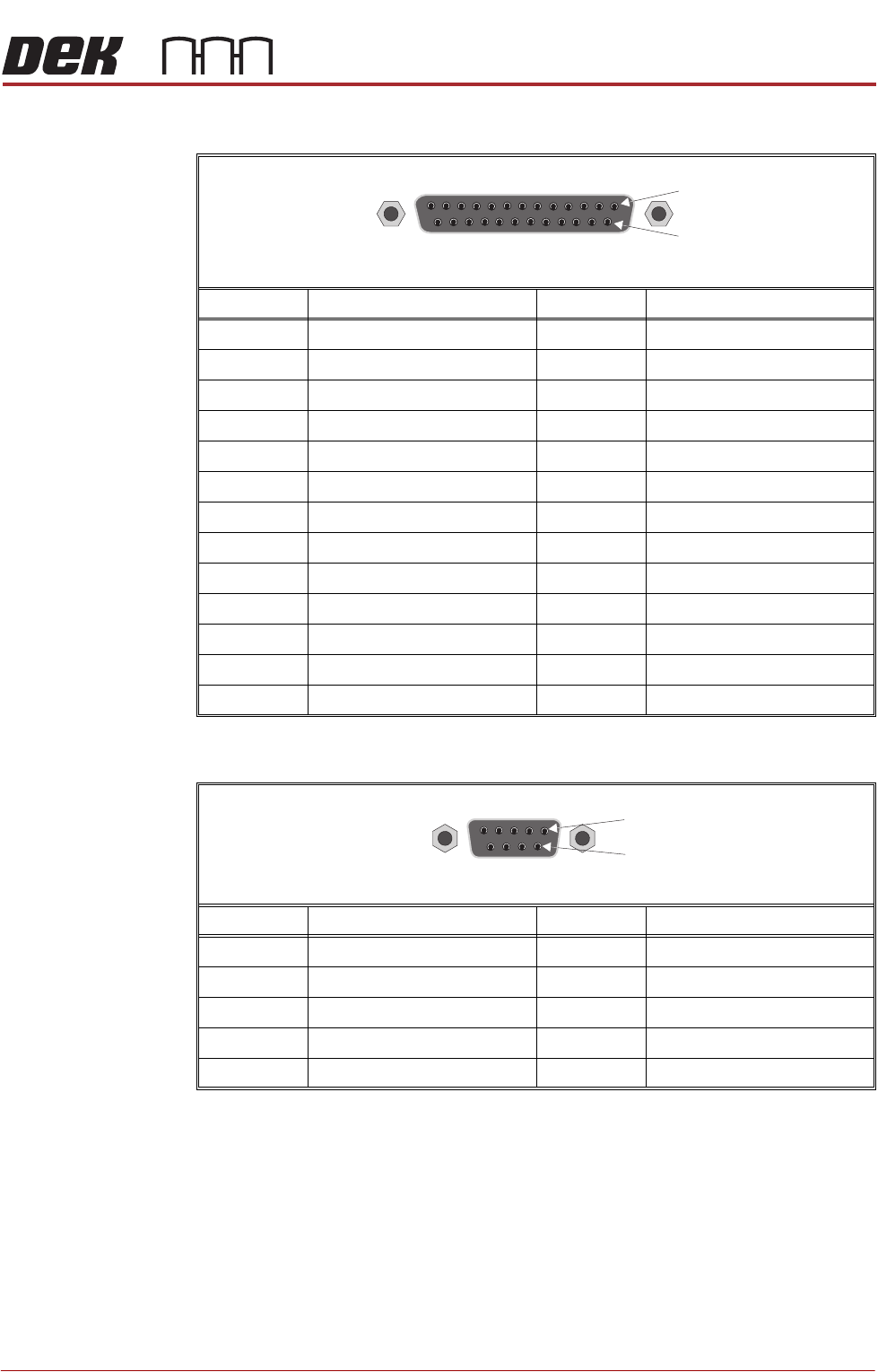

M36SK04 (FMI)
M36SK05 (Camera X Encoder - Linear Drive Machines Only)
Pin No. Signal Pin No. Signal
1N/C 14N/C
2 N/C 15 Send Upline
3N/C 16N/C
4N/C 17N/C
5 Board Pass I/P 18 Upline Ready
6 Send Downline 19 N/C
70V 20+24V US
8N/C 21N/C
9 Downline Ready 22 +12V
10 N/C 23 +24V SW
11 N/C 24 N/C
12 N/C 25 N/C
13 Board Pass O/P
Pin No. Signal Pin No. Signal
1 +5.5V 6 ! Index
2 Index 7 0V
3 ! CHB 8 CHB
4 Chassis 9 ! CHA
5CHA
25 Way D Type Socket
14
1
9 Way D Type Socket
1
6
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
7.20 Technical Reference Manual Chapter Issue 12, Feb 18
M36SK06 (Camera X Hall Sensors - Linear Drive Machines Only)
M36SK07 (Camera X Motor Power - Linear Drive Machines Only)

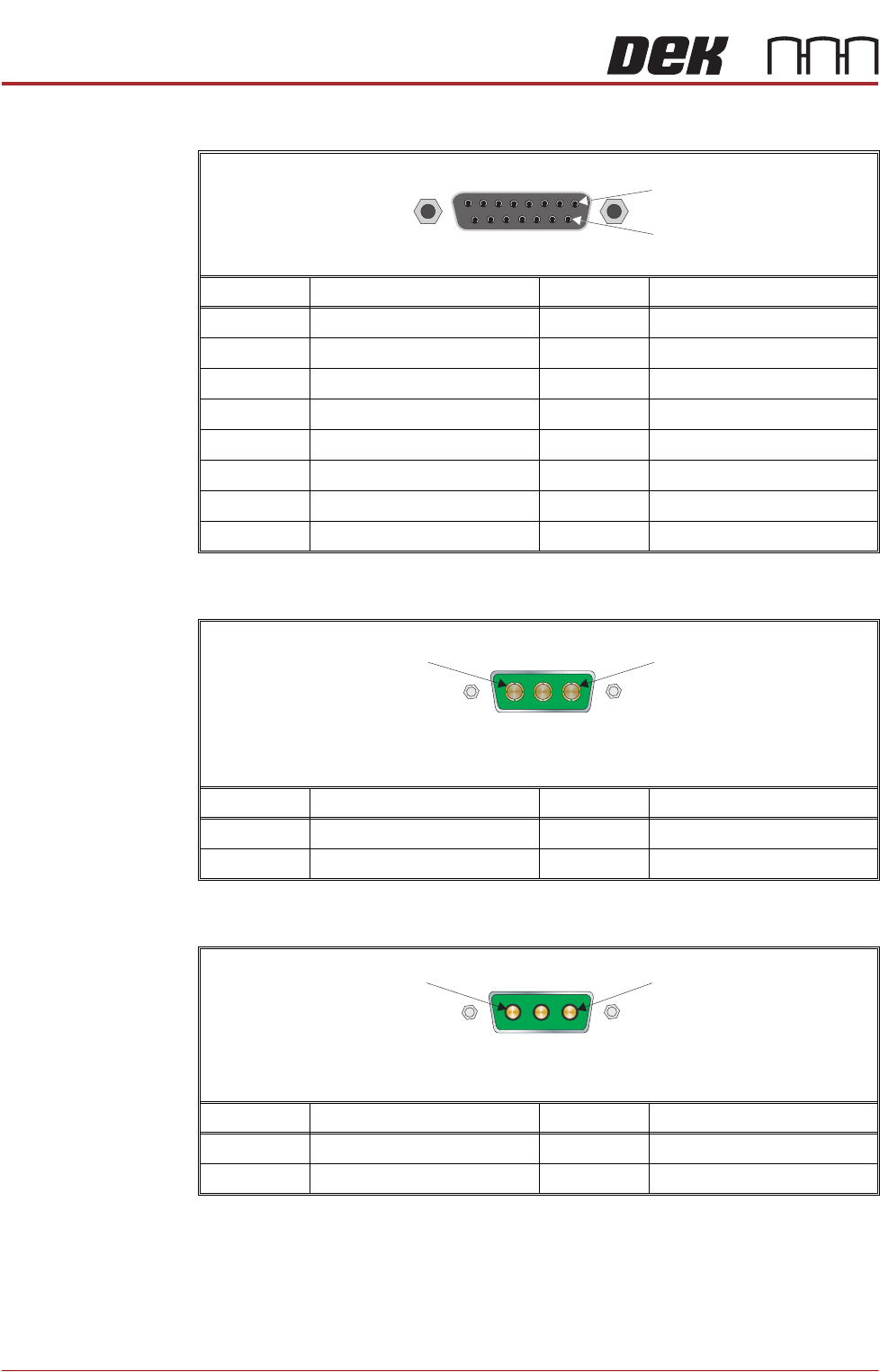

M36PL08 (Servo DC In - Linear Drive Machines Only)
Pin No. Signal Pin No. Signal
1 +5.5V 9 N/C
20V 10N/C
3 Hall U - 11 N/C
4 Hall V + 12 N/C
5 Hall U + 13 N/C
6 Hall W - 14 N/C
7 Hall V - 15 N/C
8 Hall W +
Pin No. Signal Pin No. Signal
1 MTR Phase W 3 MTR Phase U
2 MTR Phase V
Pin No. Signal Pin No. Signal
1Servo DC Supply +V 3N/C
2 Servo DC Supply 0V
15 Way D Type Socket
9
1
3
1
3 Way Power D Type
Socket
3
1
3 Way Power D Type
Plug
