MACHINE CONTROL M36 MACHINE CONTROL ENCLOSURE 7.24 Technical Reference Manual C hapter Issue 12, Feb 18 M36SK17 (Rails Left) M36SK18 (Rails Right) Pin No. Signal Pin No. Signal 1 +12V 9 0V 2 Board A t Left 10 +12V 30 V 1…

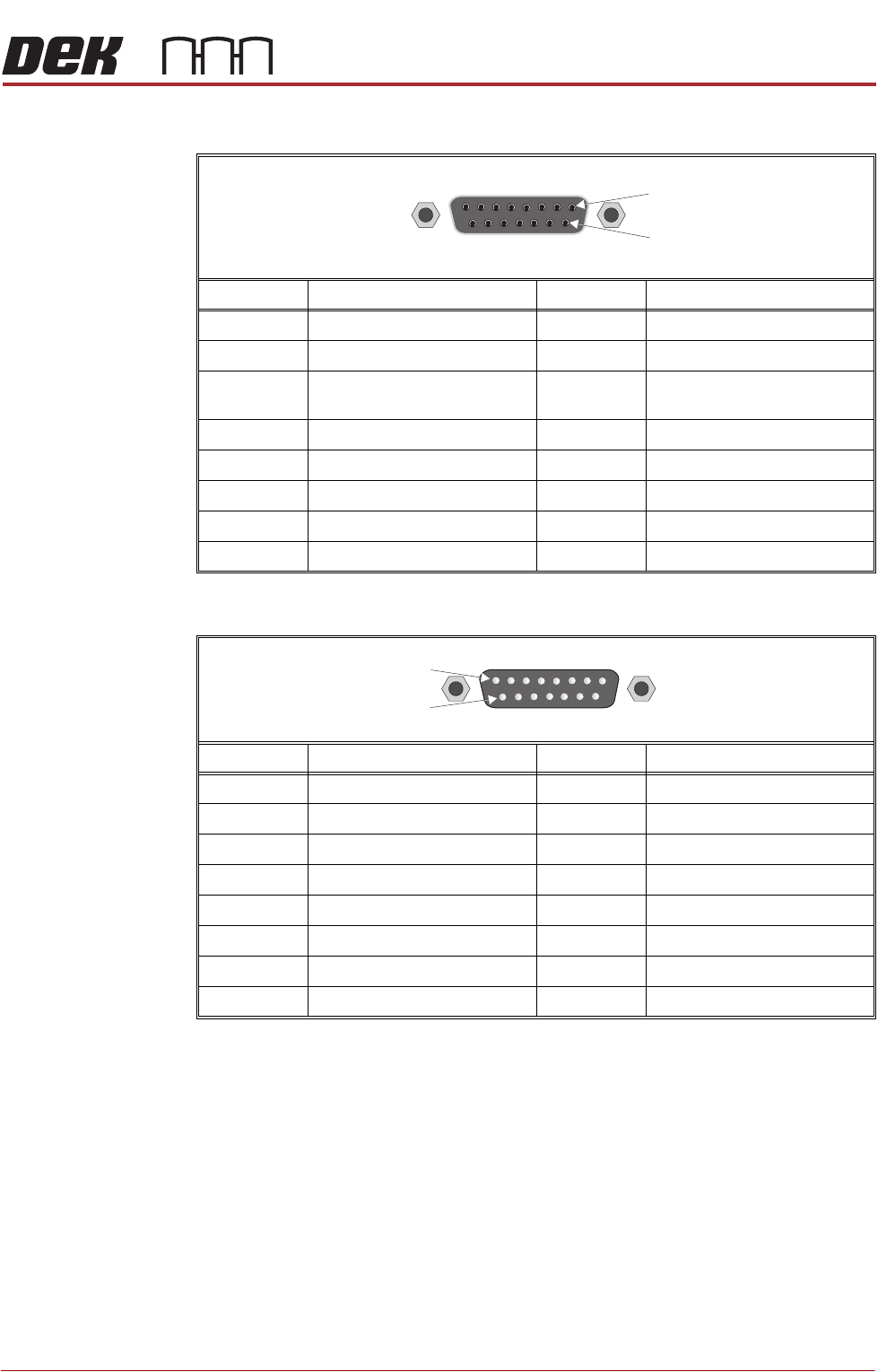

MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 12, Feb 18 Technical Reference Manual 7.23
M36SK14 (Safety I/O)
M36SK15 (Camera X Home - Linear Drive Machines Only)
M36SK16 (Camera Trigger)
Pin No. Signal Pin No. Signal
1 N/C 6 Cover Interlock
2 Jog Left 7 E-Stop Loop Supply
3 Jog Right 8 0V
4N/C 9N/C
5 Power ‘On’ Monitor
Pin No. Signal Pin No. Signal
1+12V 6N/C
2 Camera X Home 7 N/C
30V 8N/C
4N/C 9N/C
5N/C
Pin No. Signal Pin No. Signal
1 +12V 6 0V
2 Trigger 7 24V US
30V 8N/C
4N/C 9N/C
5N/C
9 Way D Type Socket
1
6
9 Way D Type Socket
1
6
9 Way D Type Socket
1
6
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
7.24 Technical Reference Manual Chapter Issue 12, Feb 18
M36SK17 (Rails Left)
M36SK18 (Rails Right)
Pin No. Signal Pin No. Signal
1 +12V 9 0V
2 Board At Left 10 +12V
30V 11N/C
4+12V 120V
5 Board At Right 13 N/C
60V 14N/C
7+12V 15N/C
8 Rail Lifted Left
Pin No. Signal Pin No. Signal
1 +12V 9 Belt Motor #1 0V
2 Rail Lifted Right 10 N/C
3 0V 11 Belt Motor #4 Enable
4+12V 12N/C
5 Belt Motor #1 Enable 13 Belt Motor #4 24V SW
6 0V 14 Belt Motor #4 Direction
7 Belt Motor #1 24V SW 15 Belt Motor #4 0V
8 Belt Motor #1 Direction
15 Way D Type Socket
9
1
15 Way D Type Socket
9
1
MACHINE CONTROL
M36 MACHINE CONTROL ENCLOSURE
Chapter Issue 12, Feb 18 Technical Reference Manual 7.25
M36SK19 (I/O Rear Right)
M36SK20 (Low Current DC In)
Pin No. Signal Pin No. Signal
1 +12V 9 0V
2 Spare Input 10 +12V
3 0V 11 Camera Y Home
(linear drive machines only)
4+12V 120V
5 Spare Input 13 N/C
6 0V 14 Spare Output
7+12V 150V
8 Moving Rail Home
Pin No. Signal Pin No. Signal
1 -12V 9 24V SW
2 -12V 10 24V SW
3 +5.5V 11 0V Return
4 +5.5V 12 0V Return
5 24V US 13 N/C
6 24V US 14 N/C
7 0V Return 15 N/C
80V Return
15 Way D Type Socket
9
1
15 Way D Type Plug
1
9
