MACHINE CONTROL
CAN BUS

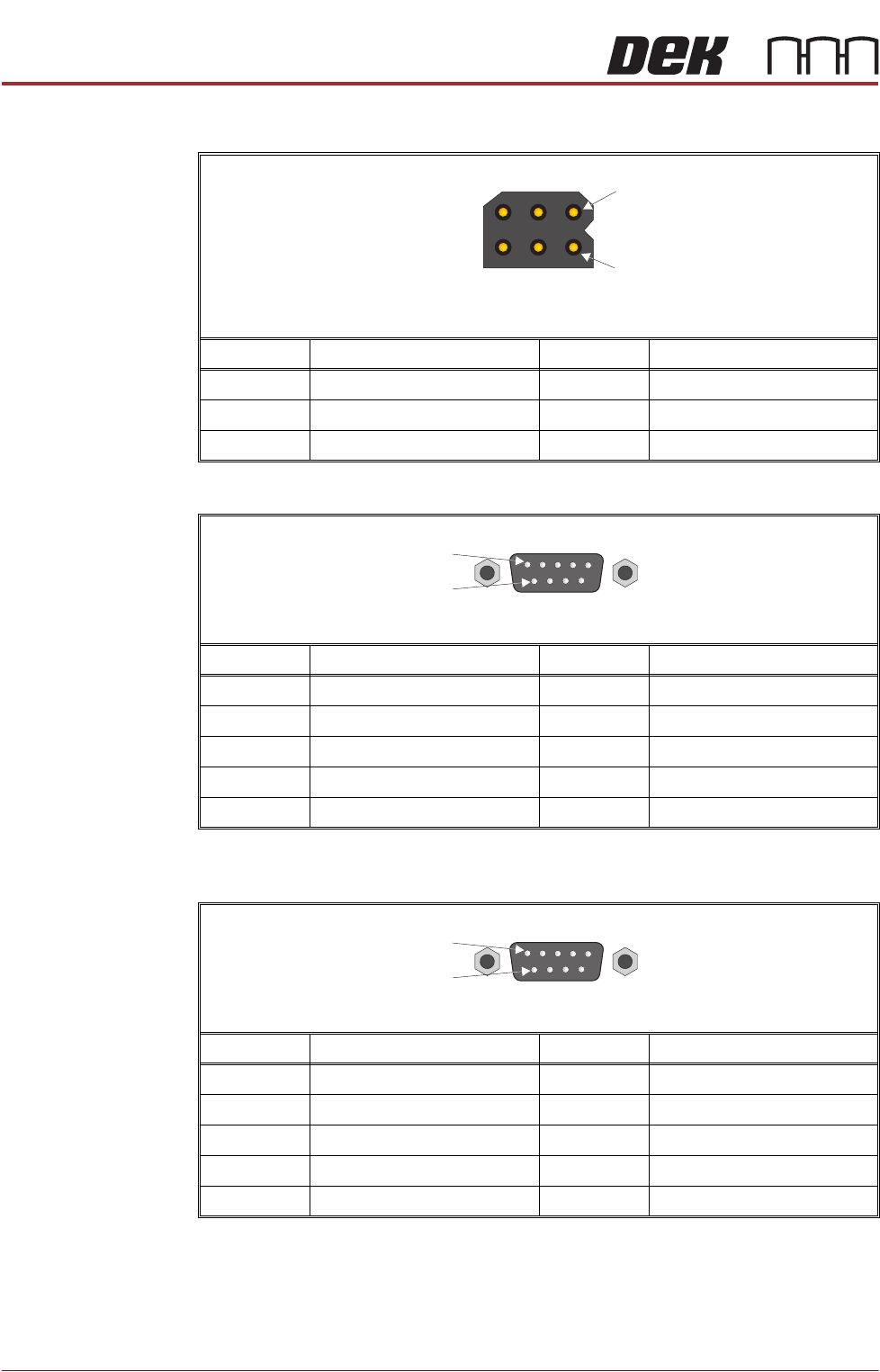

7.32 Technical Reference Manual Chapter Issue 12, Feb 18
N2PL1
N2PL2
N2PL3
Pin No. Signal Pin No. Signal
124V US 40V
2 0V 5 12V
324V SW 60V
4
1
6 Way Trident Connector
(with pins)
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
MACHINE CONTROL
CAN BUS

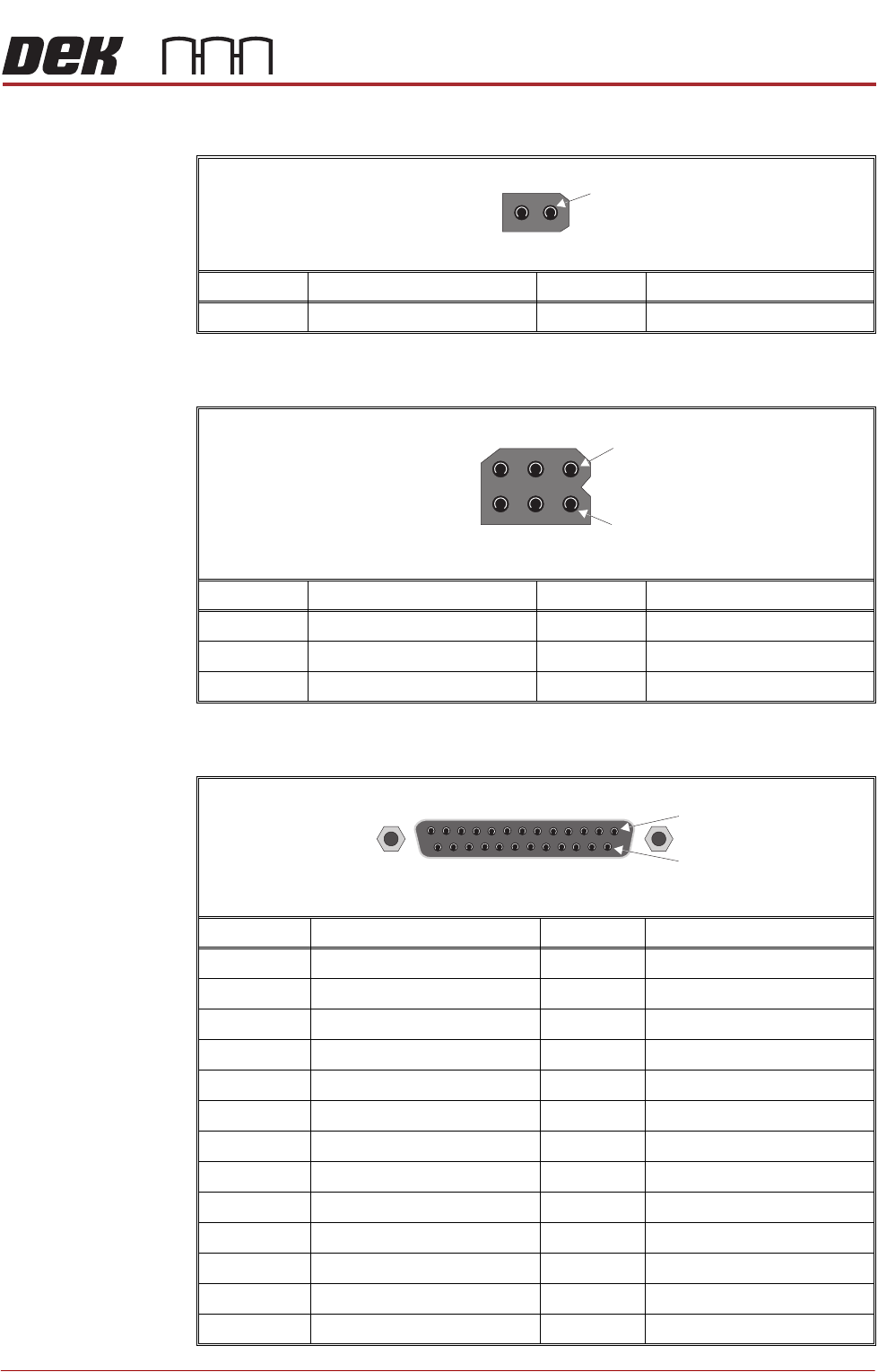

Chapter Issue 12, Feb 18 Technical Reference Manual 7.33
N2SK2
N2SK3
N2SK4
Pin No. Signal Pin No. Signal
1 Vacuum Tooling Power 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 Tricolour Beacon (Green) 4 Tricolour Beacon (Buzzer)
2 Tricolour Beacon (Amber) 5 0V
3 Tricolour Beacon (Red) 6 0V
4
1
6 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Chase Clamps 14 0V
2 Screen Clamps 15 0V
3 Board Clamps 16 0V
4 Board Stop 17 0V
5Lid Bolt 180V
6 Rail Board Stop 19 0V
7 Solvent Tank Pressure 20 0V
80V 210V
9 Cleaner Squeegee 22 Not Used
10 0V 23 0V
11 0V 24 0V
12 0V 25 0V
13 0V
25 Way D Type Socket
14
1
MACHINE CONTROL
CAN BUS
7.34 Technical Reference Manual Chapter Issue 12, Feb 18
N2SK5
N2SK6
N2SK7
N2SK8
Pin No. Signal Pin No. Signal
1 Rising Table Brake 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 Internal Light 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Air Pressure Sensor
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Lid Bolt Extended Sensor
1
3 Way Trident Socket
