MACHINE CONTROL CAN BUS Chapter Issue 12, Feb 18 Technical Reference Manual 7.35 N2SK9 N2SK10 Pin No. Signal Pin No. Signal 1 +12V 3 0V 2 V acuum T ool ing Sensor 1 3 W ay Trident Socket Pin No. Signal Pin No. Signal 1 +…
MACHINE CONTROL
CAN BUS
7.34 Technical Reference Manual Chapter Issue 12, Feb 18
N2SK5
N2SK6
N2SK7
N2SK8
Pin No. Signal Pin No. Signal
1 Rising Table Brake 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 Internal Light 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Air Pressure Sensor
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Lid Bolt Extended Sensor
1
3 Way Trident Socket
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.35

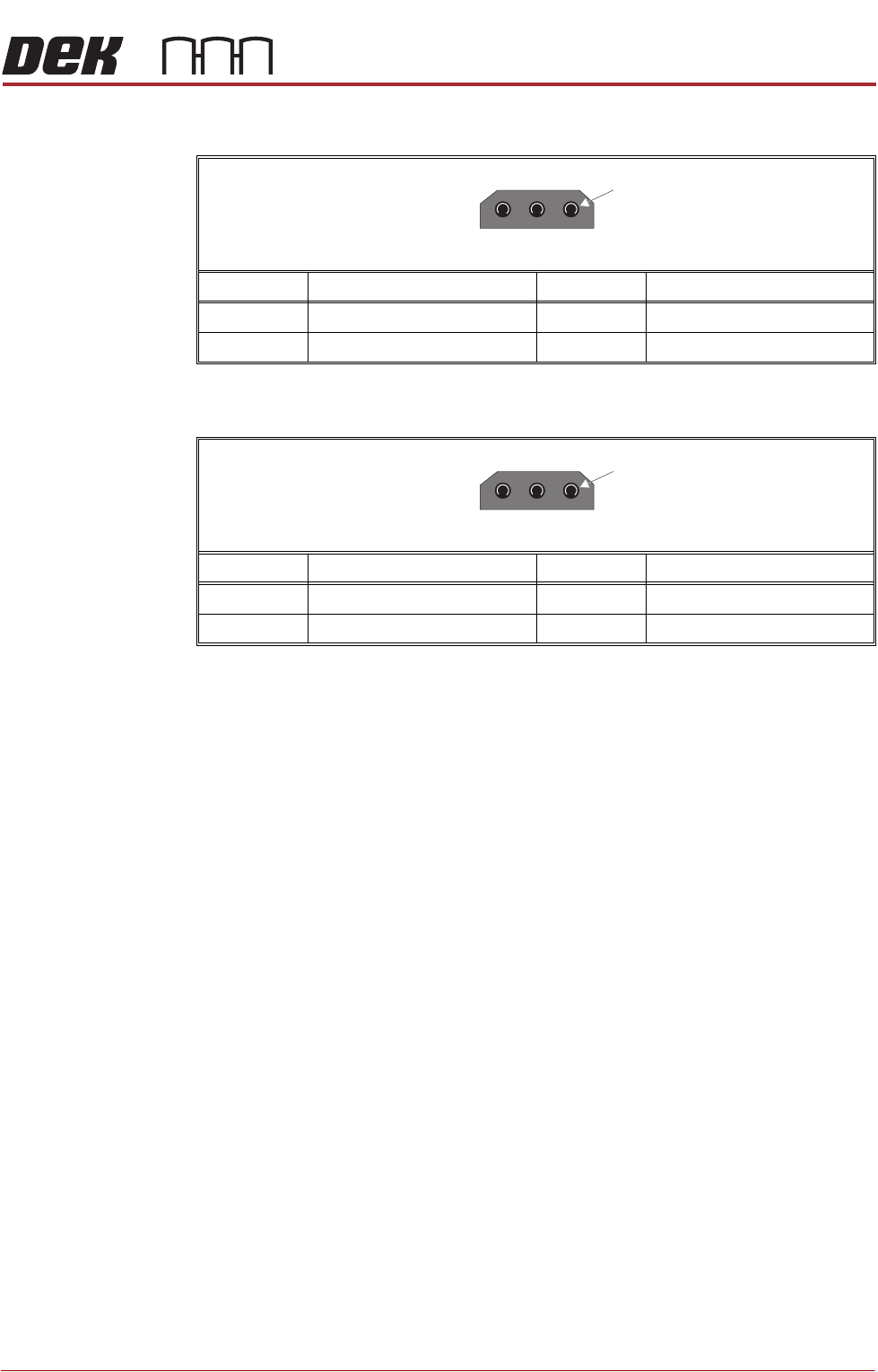

N2SK9
N2SK10
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Vacuum Tooling Sensor
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Screen Sensor
1
3 Way Trident Socket
MACHINE CONTROL
CAN BUS
7.36 Technical Reference Manual Chapter Issue 12, Feb 18

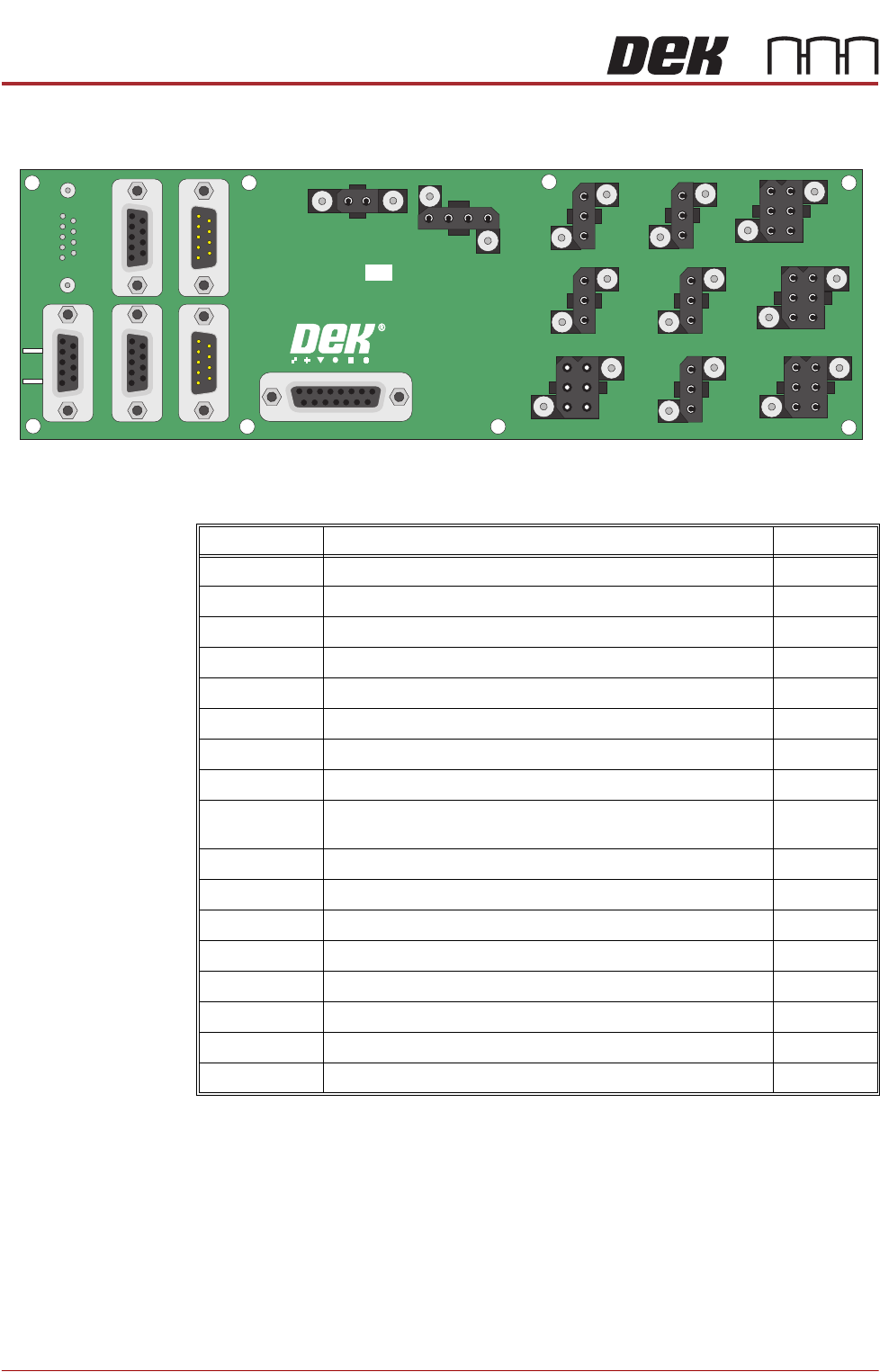

I/O Node 3 (Print Carriage I/O)
Connector Description I/O
N3PL1 Power Input
N3PL2 CAN Signal In Input
N3PL3 CAN Signal Out Output
N3SK1 Spare Output Output
N3SK4 Paste Height Laser - Paste Roll Low Input/Output
N3SK5 Screen Position Input
N3SK6 Spare Output Output
N3SK7 Screen Cylinder Extended & Retracted Sensors Input
N3SK8 ProFlow Paste Pressure - Paste Dispense Solenoid - Paste
Cartridge Tilt - Drip Tray Solenoid - Stencil Actuator
Output
N3SK9 Drip Tray Retracted Sensor Input
N3SK10 Cartridge Horizontal - Cartridge Vertical Input
N3SK11 Cartridge Empty/Paste Level Input
N3SK12 Spare Input Input
N3SK13 ProFlow Pressure Regulator Input/Output
N3SK14 Ball Escape (Ball Bumping only) Input
N3SK15 Temperature/Humidity (External Option) Input
N3SK17 ProFlow Input
NODE 3 PRINT CARRIAGE
181471 ISSUE
N3SK12 N3SK7N3SK9
N3SK17
N3SK8
N3SK6 N3SK1 N3SK14
N3SK5 N3SK4
N3SK11 N3SK10N3PL2
N3PL1N3PL3N3SK15 N3SK13
View on Connector Side of Board
