MACHINE CONTROL CAN BUS 7.40 Technical Reference Manual C hapter Issue 12, Feb 18 N3SK8 N3SK9 N3SK10 Pin No. Signal Pin No. Signal 1 ProFlow Paste Pressure 9 0V 2 Paste Dispense Sol enoid 10 0V 3 Paste Cartridge T ilt 1 …

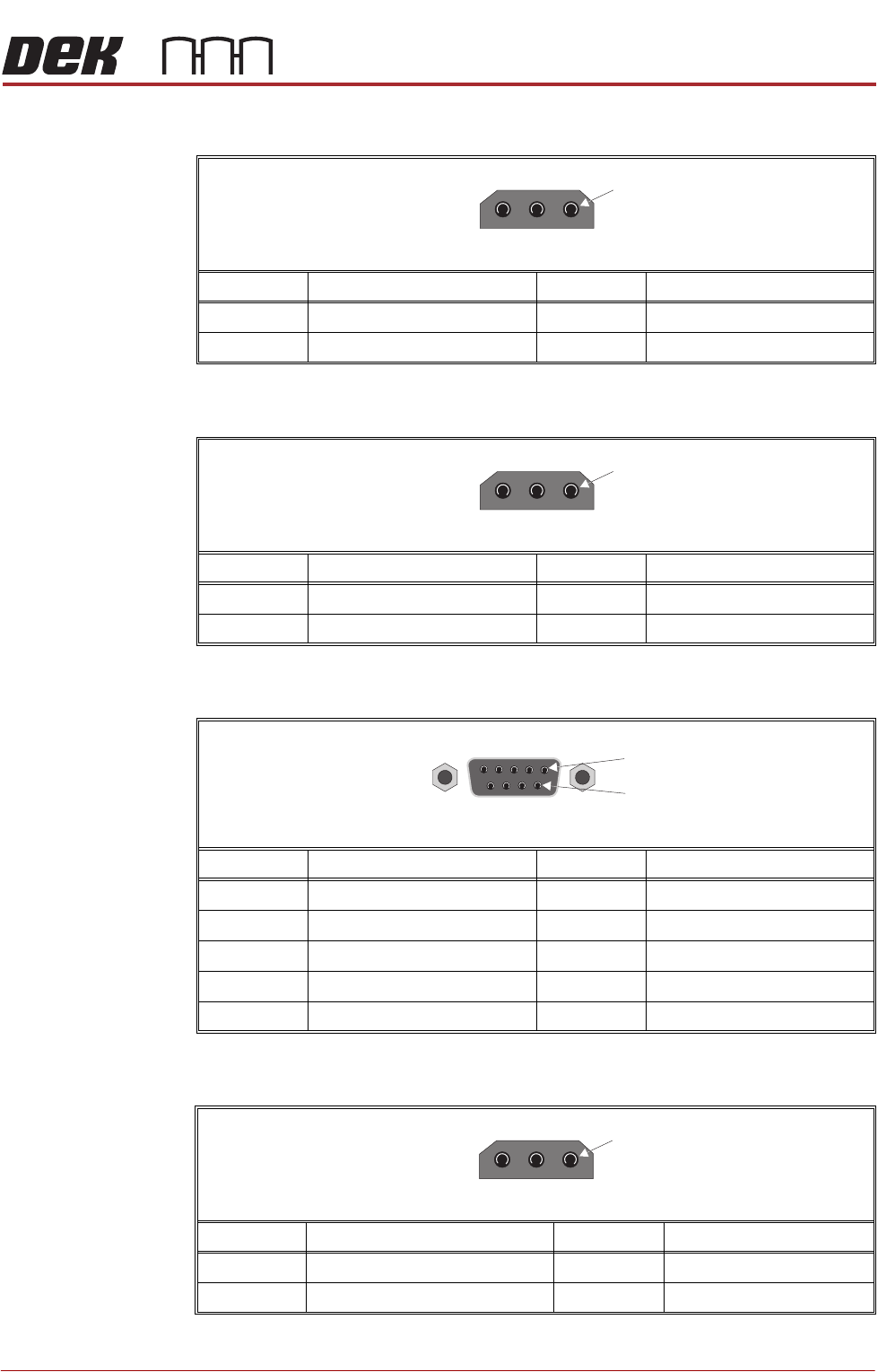

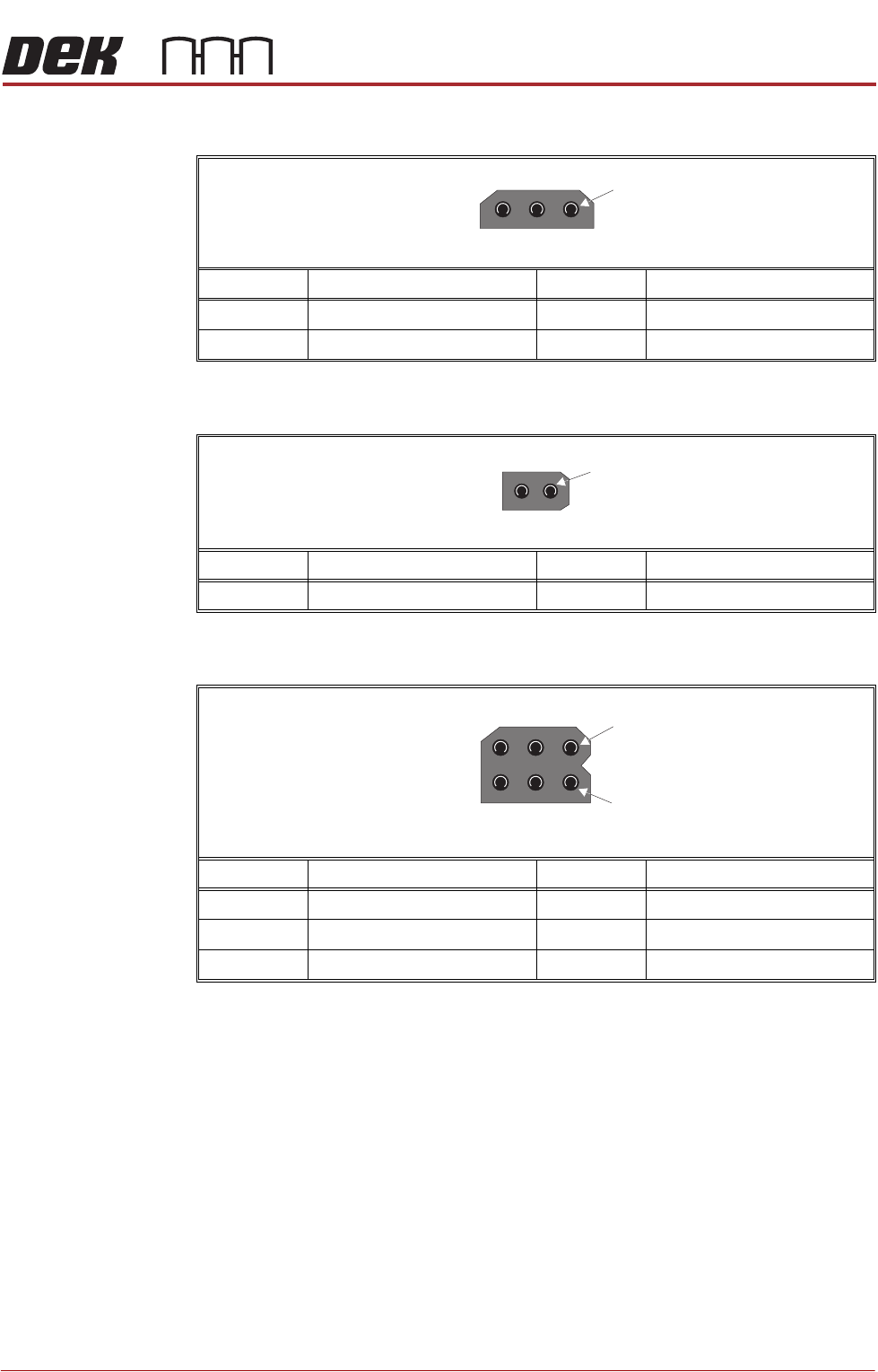

MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.39
N3SK5
N3SK6
N3SK7
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Screen Position
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Spare Output 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Screen Cylinder Extended 5 Screen Cylinder Retracted
30V 60V
4
1
6 Way Trident Socket
MACHINE CONTROL
CAN BUS
7.40 Technical Reference Manual Chapter Issue 12, Feb 18
N3SK8
N3SK9
N3SK10
Pin No. Signal Pin No. Signal
1 ProFlow Paste Pressure 9 0V
2 Paste Dispense Solenoid 10 0V
3 Paste Cartridge Tilt 11 0V
4 Drip Tray Solenoid 12 0V
5 Stencil Actuator 13 0V
60V 140V
70V 150V
80V
15 Way D Type Socket
9
1
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Drip Tray Retracted
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Cartridge Vertical 5 Cartridge Horizontal
30V 60V
4
1
6 Way Trident Socket
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.41
N3SK11
N3SK12
N3SK13
N3SK14
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Cartridge Empty/Paste Level
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Spare Input
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 24V US 6 ProFlow Pressure Demand
2 0V 7 24V US
3 Spare Output 8 0V
4 12V 9 ProFlow Pressure Monitor
50V
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Ball Escape (Ball Bumping only)
1
3 Way Trident Socket
