MACHINE CONTROL CAN BUS Chapter Issue 12, Feb 18 Technical Reference Manual 7.43 Link (LK1) The link LK1 on the component side of I/O node board 3 must be set across Pins 2 & 3. 3 View on Com p onent Side of Board N …
MACHINE CONTROL
CAN BUS
7.42 Technical Reference Manual Chapter Issue 12, Feb 18
N3SK15
N3SK16
N3SK17
Pin No. Signal Pin No. Signal
1 I DAT 6 5.5V
20V 7I CLOCK
3DAT_INT 8IO_B
4 VPP 9 0V
5 IO_C
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
10V 6N/C
2N/C 7Bridge O/P +
3N/C 8Bridge O/P -
4N/C 9N/C
5 +4.1V
9 Way D Type Socket
1
6
Pin No. Signal Pin No. Signal
1 +12V 6 0V
2 0V 7 ProFlow Cassette Low
3 Paste Level 8 0V
4 +12V 9 +12V
5 ProFlow Fitted
9 Way D Type Socket
1
6
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.43

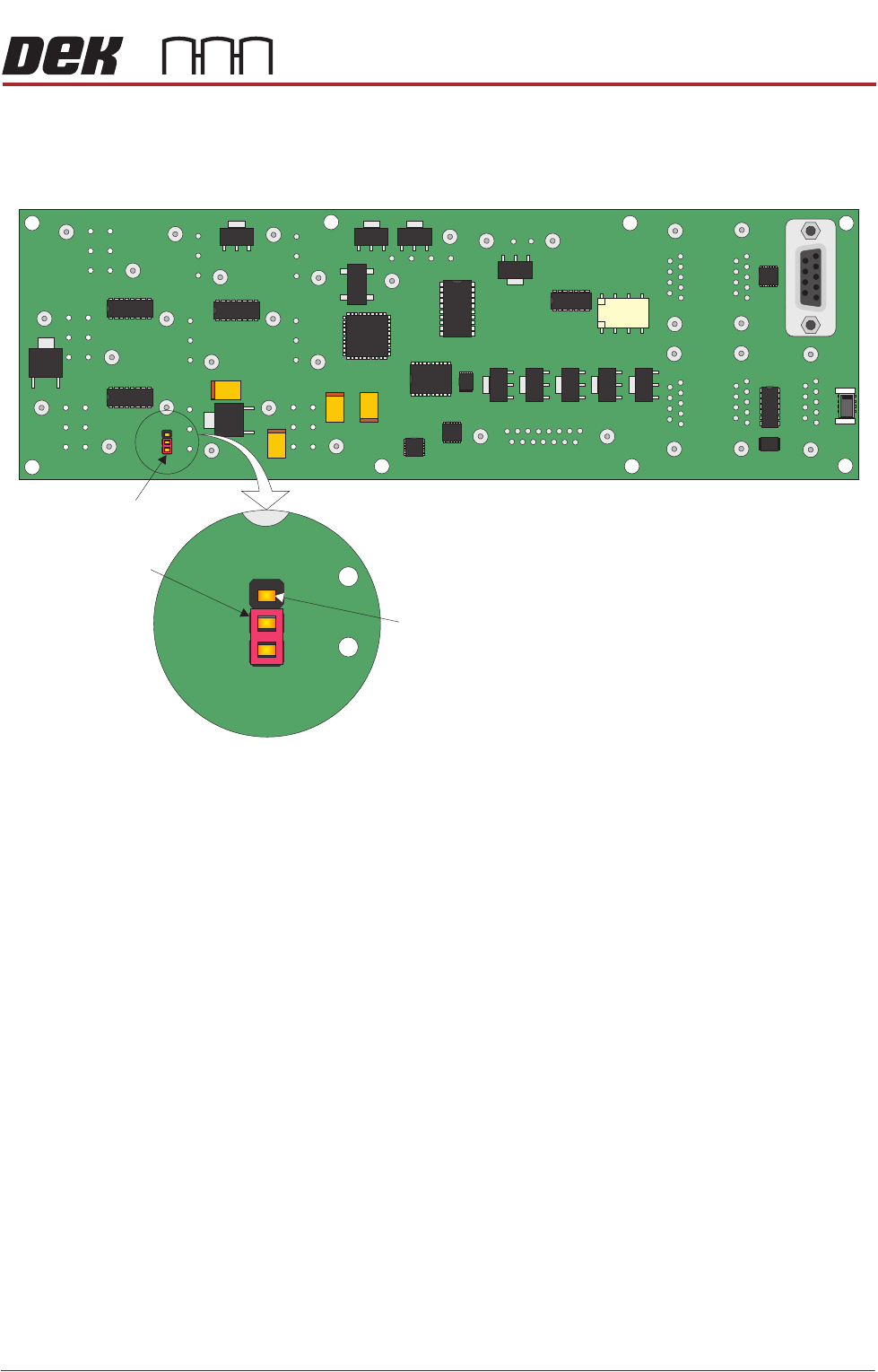

Link (LK1) The link LK1 on the component side of I/O node board 3 must be set across
Pins 2 & 3.
3
View on Component Side of Board
N3SK16
Link (LK1)
3
Jumper
Pin 1
MACHINE CONTROL
CAN BUS
7.44 Technical Reference Manual Chapter Issue 12, Feb 18

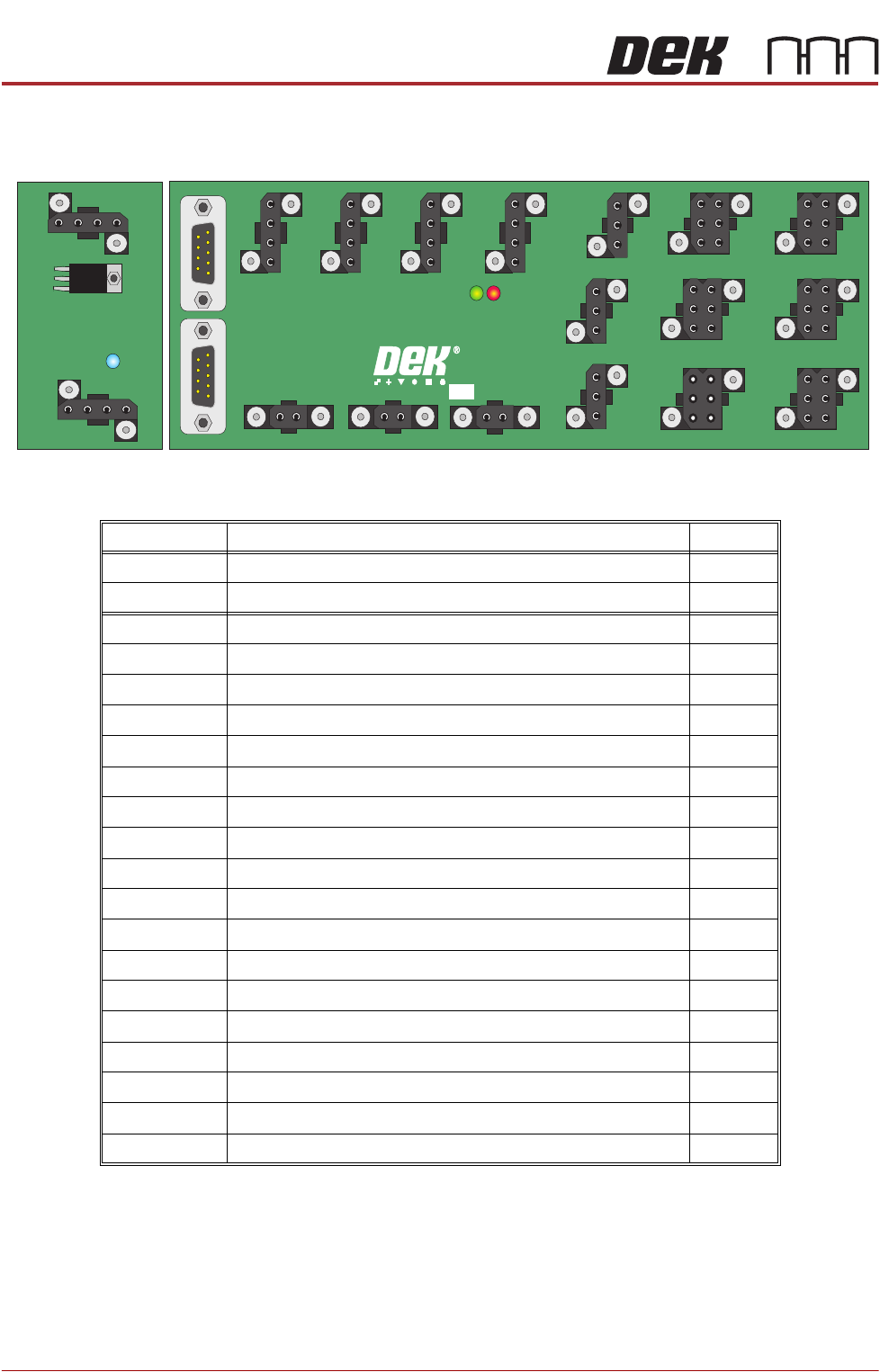

I/O Node 4 (Screen Cleaner I/O)
Connector Description I/O
PL1 Fabric Feed Brake In (Brake FET Gate control) Input
PL2 Fabric Feed Brake Out Output
N4PL1 Power Input
N4PL2 CAN Signal In Input
N4PL3 CAN Signal Out Output
N4SK1 Fabric Low/Fabric Usage - Solvent Low Sensor Input
N4SK2 Cleaner Home Clamps Output
N4SK3 Solvent Pinch Valve - Fabric Feed Motor/Solvent Pump Output
N4SK4 Cleaner Home Input
N4SK5 Spare Output
N4SK6 Cleaner Vacuum Power Output
N4SK7 Cleaner Vacuum Sense Input
N4SK8 Levelness Screen Sensor - Levelness Cylinder Extended Input
N4SK9 Spare Output Output
N4SK10 Board Present - Product Sensor Input
N4SK11 Oscillating Motor Output
N4SK12 Cleaner Dropped Sensor Input
N4SK13 Spare Input Input
N4SK14 Spare Input Input
N4SK15 Cleaner Camera Clamps Output
SCREEN CLEANER NODE 4
DEK CYCLONE
BRAKE
181479 ISSUE
N4PL3
N4PL1
N4PL2
N4SK2
PL2
PL1
N4SK3
N4SK12N4SK14N4SK15
N4SK11
N4SK5
N4SK6
N4SK9
N4SK13 N4SK8 N4SK10
N4SK7 N4SK1 N4SK4
FET
