MACHINE CONTROL CAN BUS 7.50 Technical Reference Manual C hapter Issue 12, Feb 18 N4SK13 N4SK14 N4SK15 Pin No. Signal Pin No. Signal 1 +12V 3 0V 2 Spare Input 1 3 W ay Trident Socket Pin No. Signal Pin No. Signal 1 +12V …
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.49

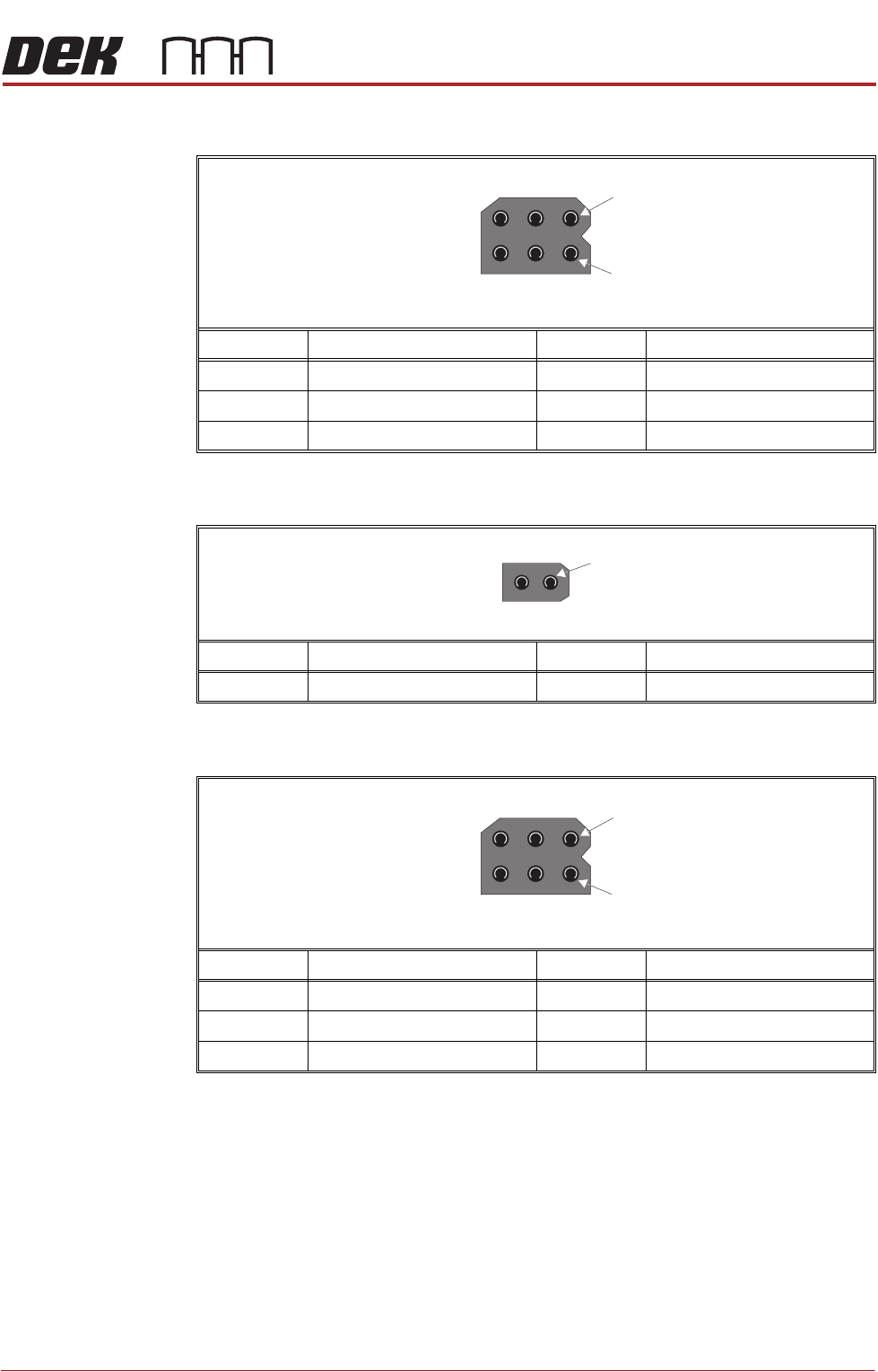

N4SK10
N4SK11
N4SK12
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Board Present 5 Product Sensor
30V 60V
4
1
6 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Oscillating Motor 2 0V
2 Way Trident Socket
1
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Cleaner Dropped 5 Spare Input
30V 60V
4
1
6 Way Trident Socket
MACHINE CONTROL
CAN BUS
7.50 Technical Reference Manual Chapter Issue 12, Feb 18
N4SK13
N4SK14
N4SK15
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Spare Input
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Spare Input
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Cleaner Camera Clamp 2 0V
2 Way Trident Socket
1
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.51
I/O Node 5 (HTC/OTS)
Connector Description
N5PL1 Node Power
N5PL2 CAN Signal In
N5PL3 CAN Signal Out
N5SK1 N/C
N5SK2 N/C
N5SK3 N/C
N5SK4 N/C
N5SK5 N/C
N5SK6 Solenoid Bank (OTS)
N5SK7 N/C
N5SK8 N/C
N5SK9 N/C
N5SK10 Snug / Clamp Pressure
N5SK11 N/C
N5SK12 N/C
