MACHINE CONTROL CAN BUS 7.54 Technical Reference Manual C hapter Issue 12, Feb 18 Servo/Stepper Nodes These nodes can be either servo or st epper motors with built in sensors, controller , drive electronics and CAN encod…

100%1 / 290
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.53
N5SK6
N5SK10
Pin No. Signal Pin No. Signal
1 Mid Plate Up 7 Top Plate Up
2N/C 8N/C
3 Mid Plate Down 9 Vacuum
4N/C 10N/C
5 Over Top Plate Retract 11 Snugger and Brake
6N/C 120V
12 Way Trident Socket
1
12
3
Pin No. Signal Pin No. Signal
1 0V 6 Pressure Demand Input
(Snug)
2 0V 7 Pressure Demand Input
(Clamp)
30V 8+24V US
4 Pressure Monitor Output
(Snug)
9+24V US
5 Pressure Monitor Output
(Clamp)
9 Way D Type Plug
1
6
MACHINE CONTROL
CAN BUS
7.54 Technical Reference Manual Chapter Issue 12, Feb 18

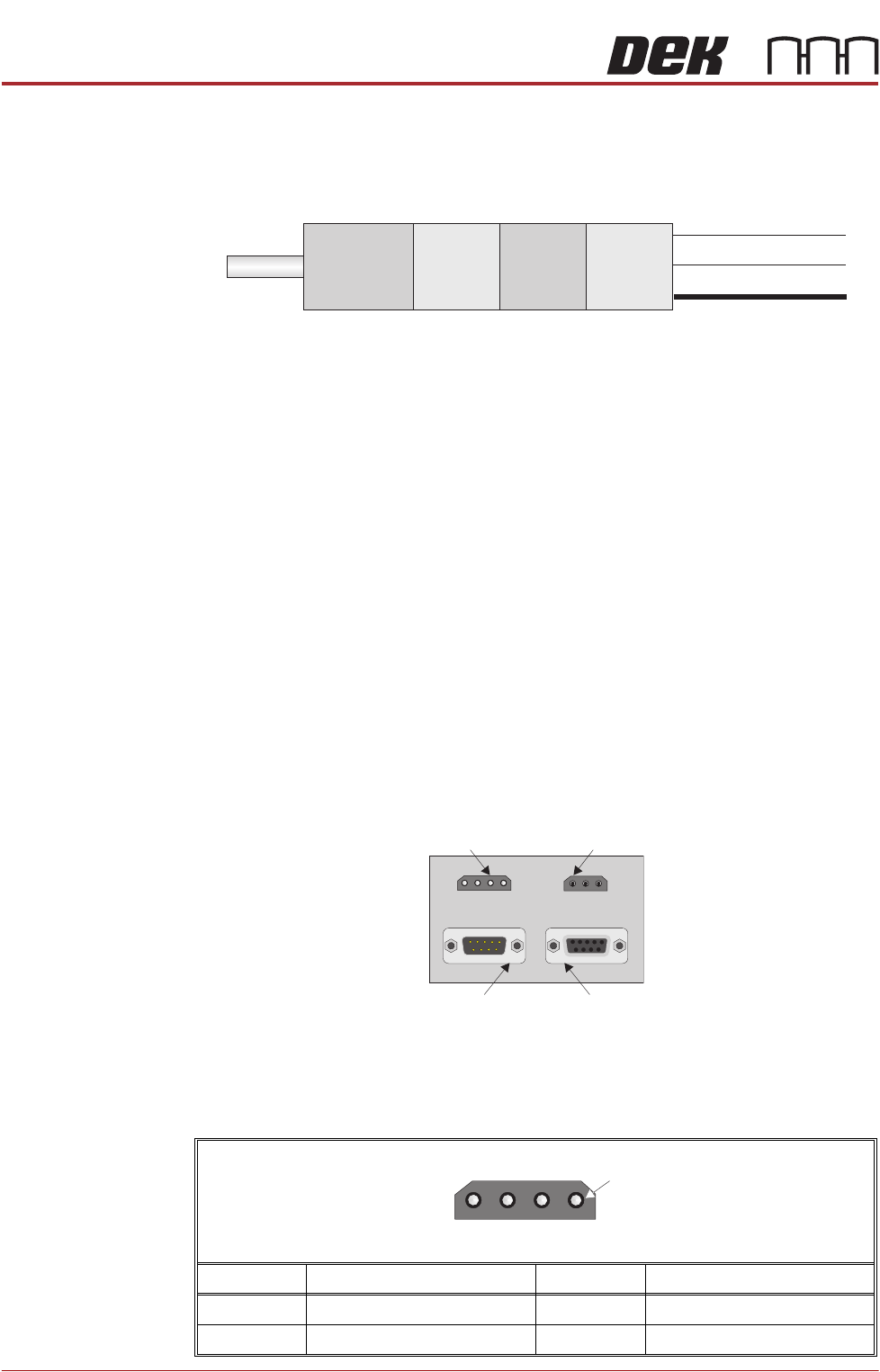

Servo/Stepper
Nodes
These nodes can be either servo or stepper motors with built in sensors,
controller, drive electronics and CAN encoder/decoder. The motor is connected
to the CAN Bus allowing direct communications with the NextMove ES card in
the M36 Machine Control Enclosure.
The following motors are fitted to all machines:
• Servo Node 6 - Rising Table Motor
• Servo Node 7 - Print Carriage Motor
The following motors may be fitted dependant on machine options and variants:
• Servo Node 8 - Camera X Motor (rotary drive machines only)
• Servo Node 9 - Camera Y Motor (rotary drive machines only)
• Stepper Node 10 - Paste Dispenser Motor (optional)
• Servo Node 11 - Board Load Mechanism (RTC Left to Right only)
• Stepper Node 12 - Rail Width Motor (RTC only)
• Stepper Node 15 - Pass Through Lane Rail Width Motor (Dual Lane only)
• Servo Node 16 - Board Load Mechanism (RTC Right to Left only)
Servo Node 6 -
Rising Table Motor
Figure 7-9 Servo Motor Node 6 Connectors
PL1
Servo/Stepper
Motor
(Brushless)
Drive
Electronics
Processor
CAN
Encoder/
Decoder
CAN Bus In
CAN Bus Out
DC Supply In
CAN Motor Block Diagram
Pin No. Signal Pin No. Signal
1 +42V SW 3 +24V US
20V 40V
PL1
(Supply In)
PL2
(Can Out)
SK4
(Supply Out)
SK3
(CAN In)
1
4 Way Trident Plug
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.55

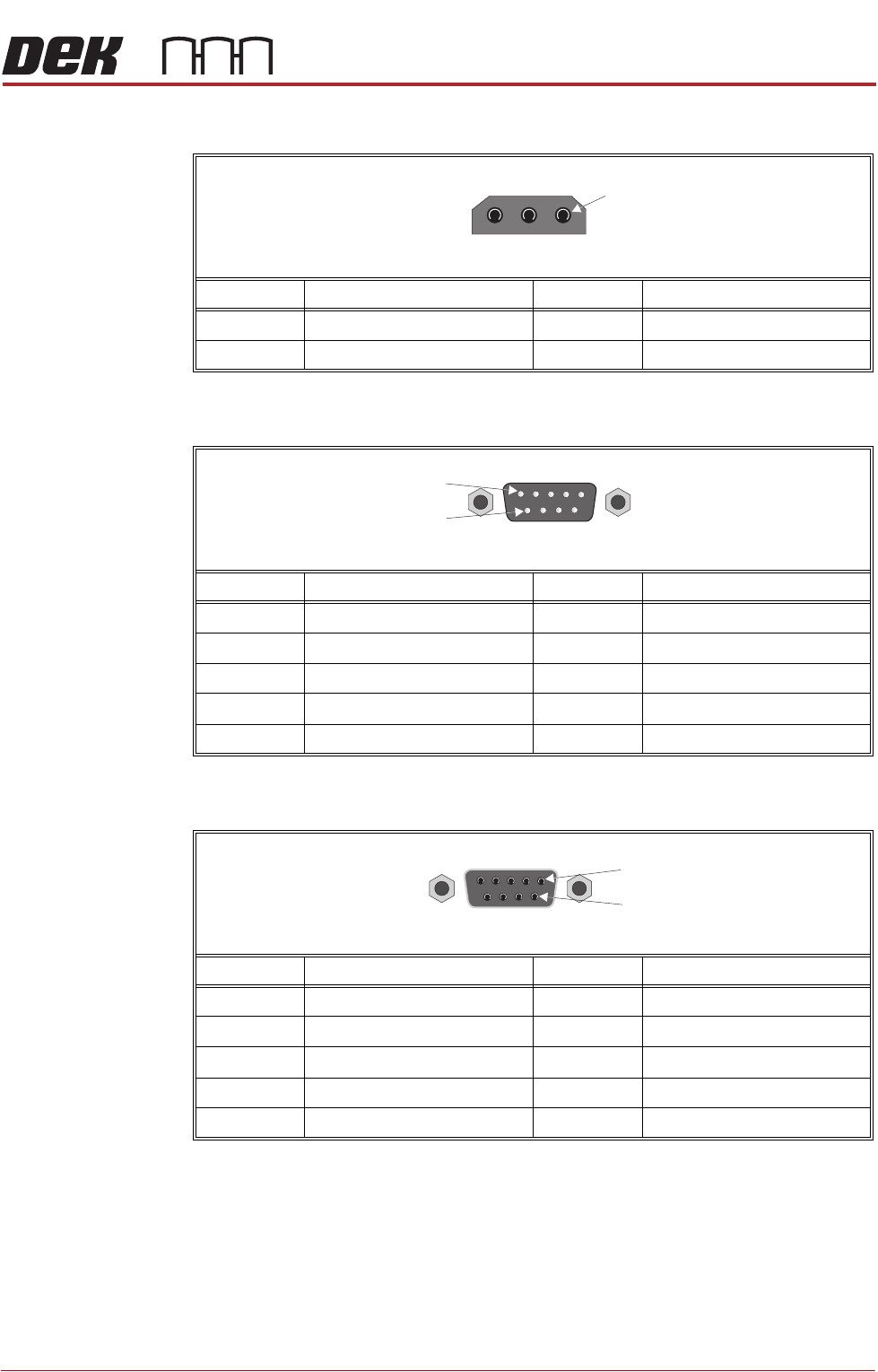

SK4
PL2
SK3
Pin No.SignalPin No.Signal
1 +24V 3 0V
2 Signal Out
Pin No.SignalPin No.Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
Pin No.SignalPin No.Signal
1N/C 6OV
2CAN_L 7CAN_H
3N/C 8N/C
4N/C 9+24V
5N/C
1
3 Way Trident Socket
9 Way D Type Plug
1
6
9 Way D Type Socket
1
6
