MACHINE CONTROL CAN BUS 7.68 Technical Reference Manual C hapter Issue 12, Feb 18 JP1 - Node Interface to Drive Board (50 W ay Ribbon) N18PL01 N18PL04 Pin No. Signal Pin No. Signal 1+ 2 4 V U S 60 V 20 V 7N / C 3+ 2 4 S …
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.67
PL3
SK4
Servo Node 18 -
Proactiv Interface

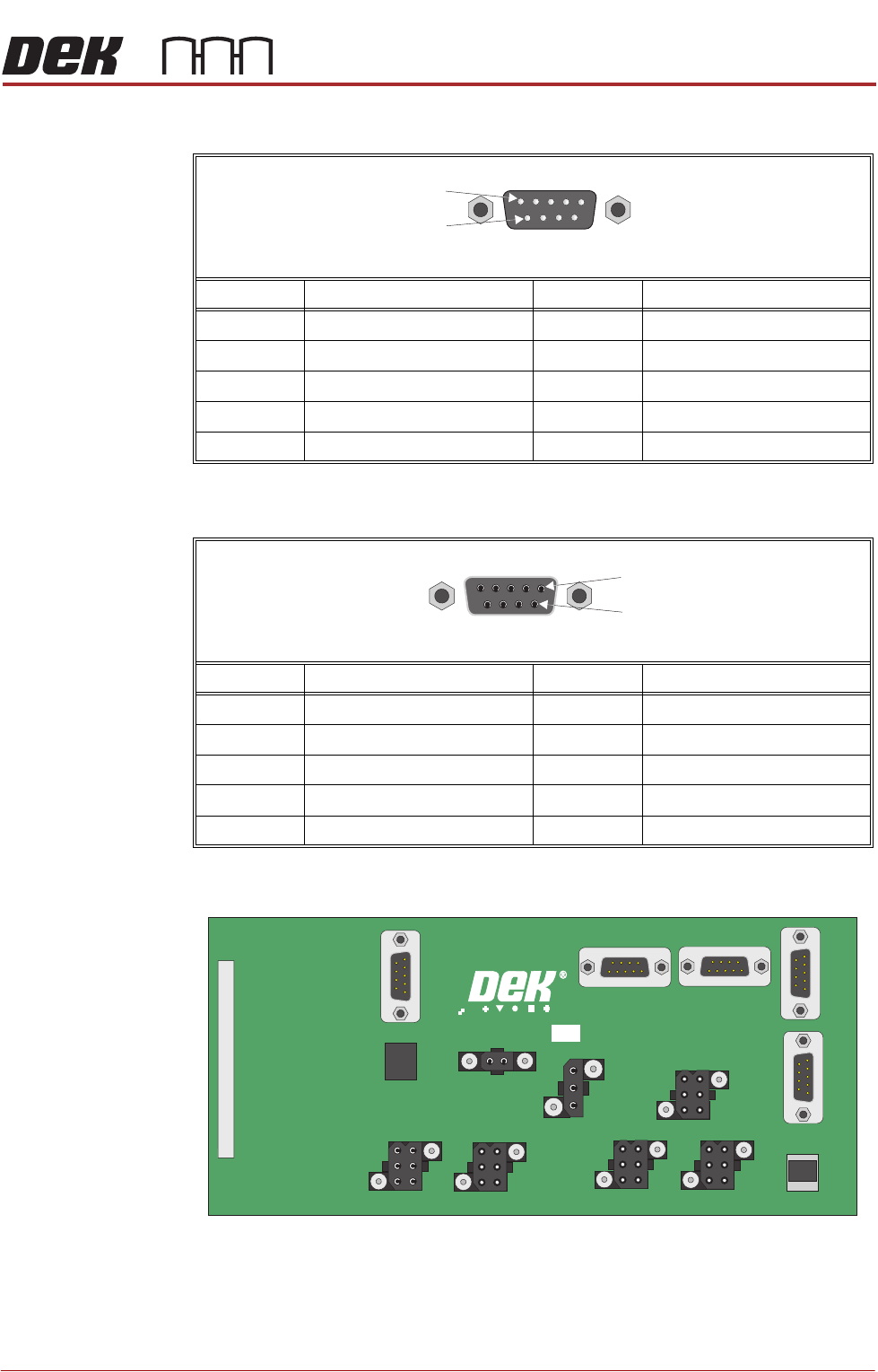

Figure 7-18 Node 18
Pin No.SignalPin No.Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
Pin No.SignalPin No.Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
9 Way D Type Socket
1
6
MAIN I/O NODE 18
200811 ISSUE
N18SK01
N18SK05
N18SK04
JP1
N2SK08
N2SK10
MACHINE CONTROL
CAN BUS
7.68 Technical Reference Manual Chapter Issue 12, Feb 18
JP1 - Node Interface to Drive Board (50 Way Ribbon)
N18PL01
N18PL04
Pin No. Signal Pin No. Signal
1+24V US 60V
20V 7N/C
3+24 SW 8N/C
40V 9N/C
5+12V
Pin No. Signal Pin No. Signal
1+12V 60V
2 DIG IN 0 7 N/C
30V 8N/C
4+12V 9N/C
5 DIG IN 1
9 Way D Type Plug
1
6
9 Way D Type Plug
1
6
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.69
NPL05
N18PL08
N18SK10
Pin No.SignalPin No.Signal
1N/C 4N/C
2 DIG IN 2 5 N/C
30V 6N/C
Pin No.SignalPin No.Signal
1 DIG OUT 0 3 DIG OUT 1
20V 40V
Pin No.SignalPin No.Signal
1 USB SUPPLY 3 USB DATA +VE
2 USB DATA -VE 4 USB GROUND
4
1
6 Way Trident Connector
(with pins)
4
1
6 Way Trident Connector
(with pins)
1
4
USB Type B Socket
