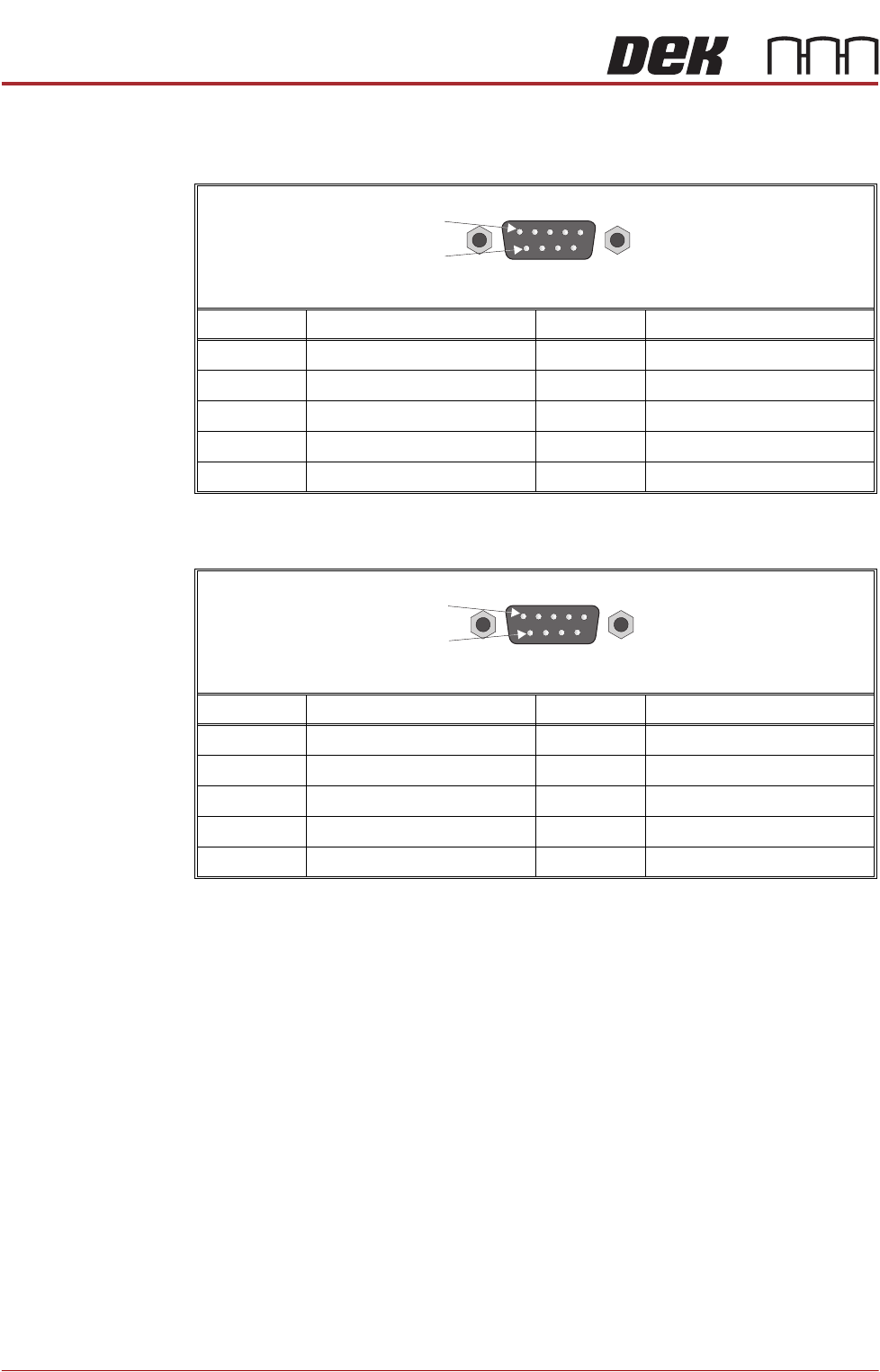

MACHINE CONTROL
CAN BUS
7.68 Technical Reference Manual Chapter Issue 12, Feb 18

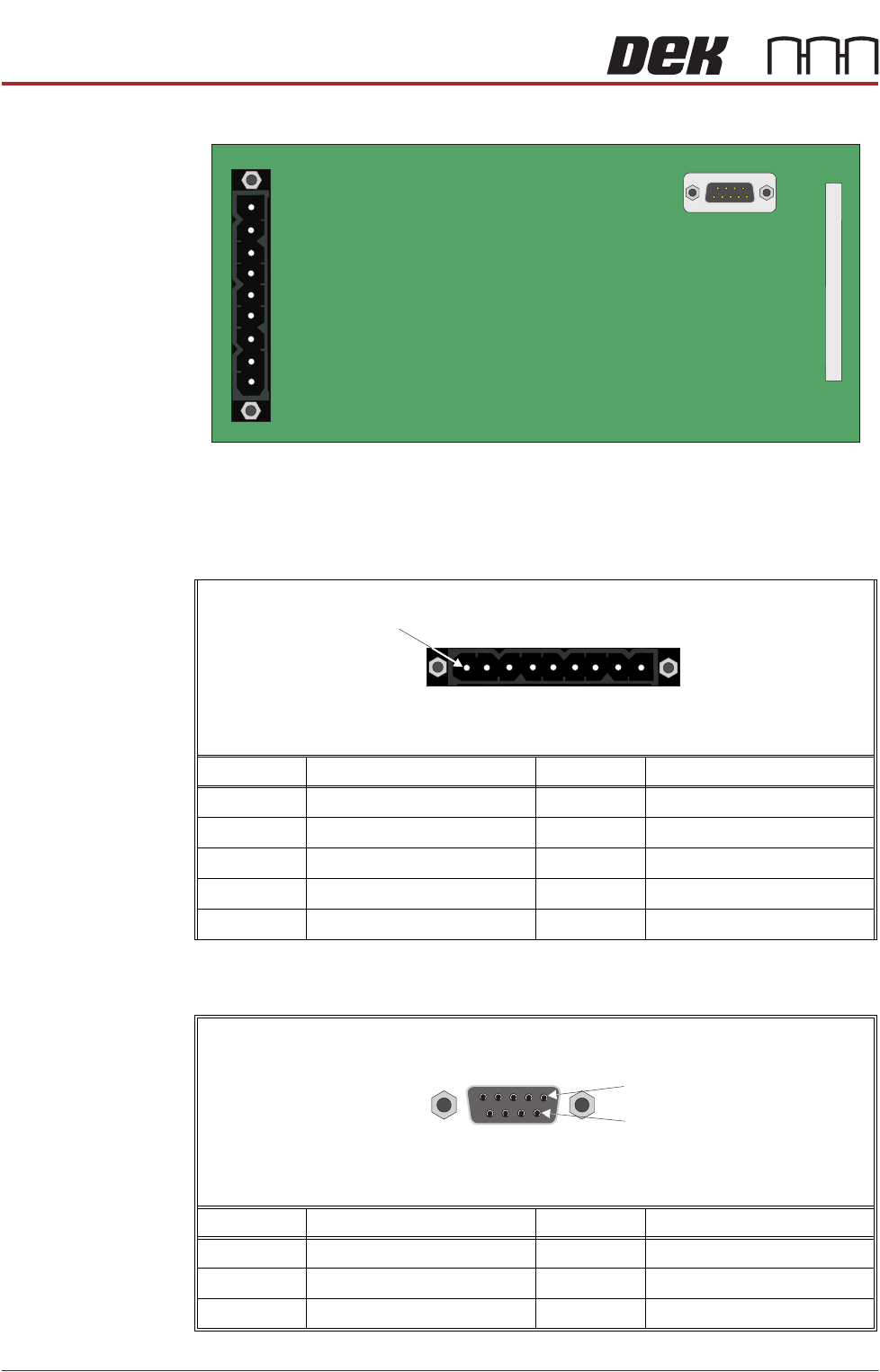

JP1 - Node Interface to Drive Board (50 Way Ribbon)
N18PL01
N18PL04
Pin No. Signal Pin No. Signal
1+24V US 60V
20V 7N/C
3+24 SW 8N/C
40V 9N/C
5+12V
Pin No. Signal Pin No. Signal
1+12V 60V
2 DIG IN 0 7 N/C
30V 8N/C
4+12V 9N/C
5 DIG IN 1
9 Way D Type Plug
1
6
9 Way D Type Plug
1
6
MACHINE CONTROL
CAN BUS
Chapter Issue 12, Feb 18 Technical Reference Manual 7.69
NPL05
N18PL08
N18SK10

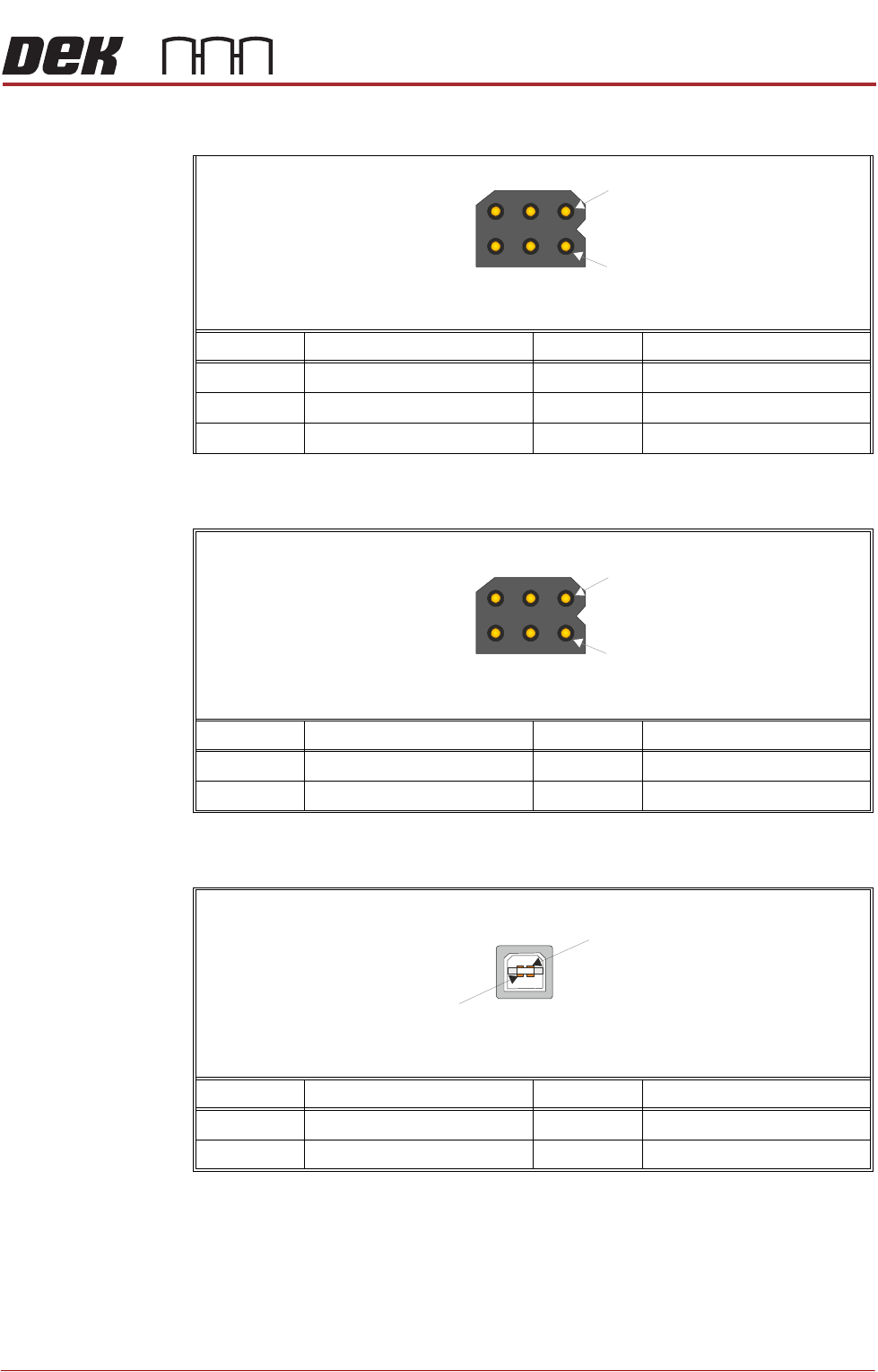

Pin No.SignalPin No.Signal
1N/C 4N/C
2 DIG IN 2 5 N/C
30V 6N/C
Pin No.SignalPin No.Signal
1 DIG OUT 0 3 DIG OUT 1
20V 40V
Pin No.SignalPin No.Signal
1 USB SUPPLY 3 USB DATA +VE
2 USB DATA -VE 4 USB GROUND
4
1
6 Way Trident Connector
(with pins)
4
1
6 Way Trident Connector
(with pins)
1
4
USB Type B Socket
MACHINE CONTROL
CAN BUS
7.70 Technical Reference Manual Chapter Issue 12, Feb 18
Drive Board/
ProActiv Interface
Figure 7-19 ProActiv Drive
JP1 - Node Interface to Drive Board (50 Way Ribbon)
N18SK14
N18SK13
Pin No. Signal Pin No. Signal
1SQY +F 6SQY -R
2SQY -F 7N/C
3PE 8N/C
4PE 9N/C
5SQY +R
Pin No. Signal Pin No. Signal
1+ 42V SW 40V
20V 5N/C
3+ 24V US 6N/C
N18SK14
NOTE 250V RMS
JP1
N18SK13
9 Trident Power PlugWay
1
9 Way D Type Socket
1
6
