PRINT CARRIAGE MODULE OVERVIEW Chapter Issue 5, Aug 14 Technical Reference Manual 8.1 CHAPTER 8 PRINT CARRIAGE MODULE OVER VIEW Item Description Ite m Descr iption 1 Print Carriage Solenoids (Cover Shown T ransparen t) 6…
MACHINE CONTROL
SIGNALS BREAKOUT CONNECTOR
7.72 Technical Reference Manual Chapter Issue 12, Feb 18
PRINT CARRIAGE MODULE
OVERVIEW
Chapter Issue 5, Aug 14 Technical Reference Manual 8.1
CHAPTER 8 PRINT CARRIAGE MODULE
OVERVIEW
Item Description Item Description
1 Print Carriage Solenoids (Cover Shown Transparent) 6 I/O Node Board 3 (Behind Panel)
2 Print Carriage Home Sensor 7 Printhead Mechanism Connector Panel
3 Print Carriage Servo Motor 8 ProFlow Pneumatic Connectors (2 Positions)
4 Screen Loader Mechanism 9 Squeegee Printhead Mechanism
5 Squeegee Drip Tray
Print Carriage Front View (Squeegee Mechanism Fitted)
1
2
4
5
6
7
8
9
8
3
PRINT CARRIAGE MODULE
OVERVIEW
8.2 Technical Reference Manual Chapter Issue 5, Aug 14
Item Description Item Description
1 Right Hand Printhead 5 Right Linear Guide Rail
2 Timing Belt 6 Left Hand Printhead
3 Print Carriage 7 Left Linear Guide Rail
4 Print Carriage Home Vane

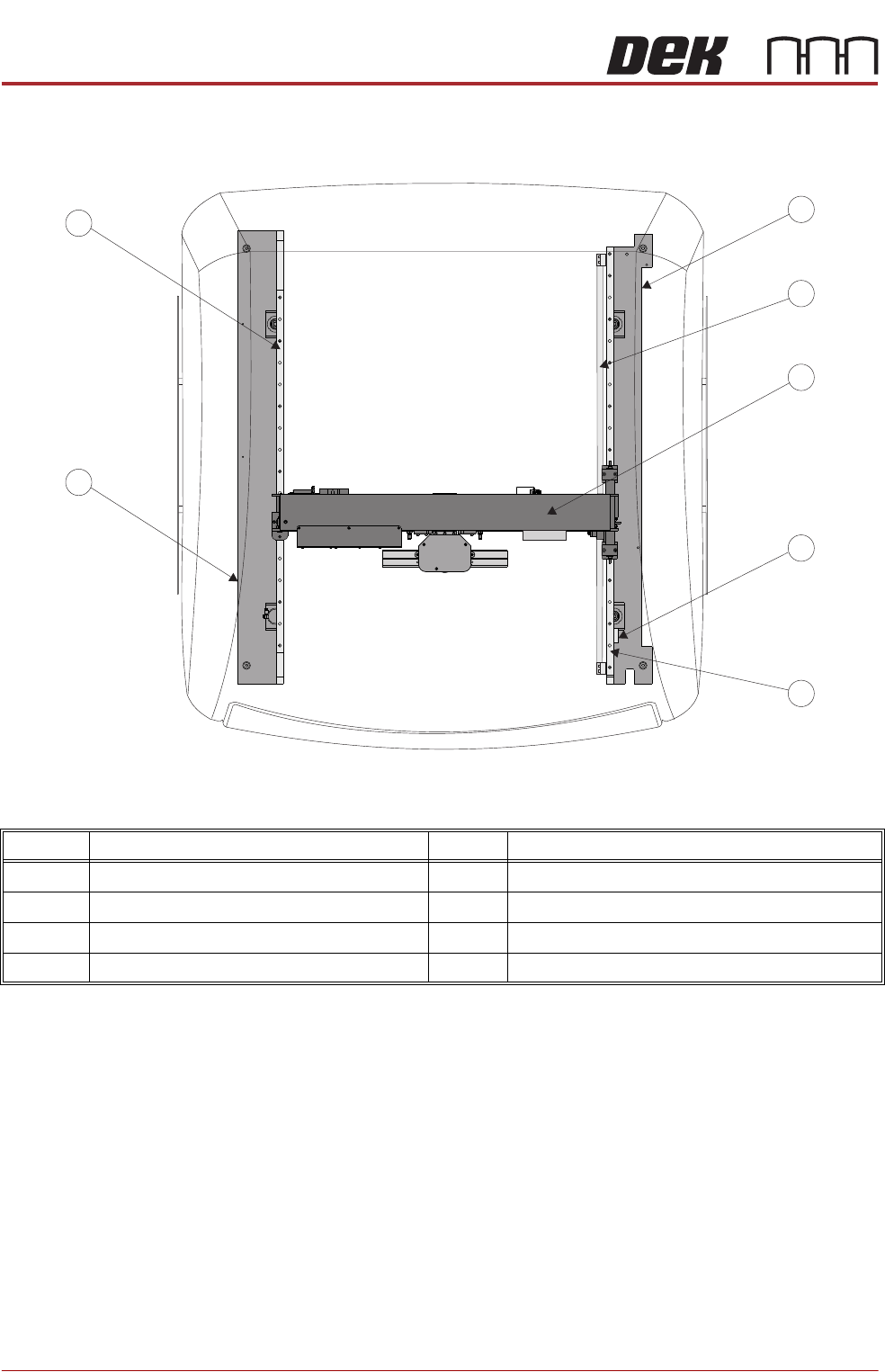

Printhead Plan View
7
6
2
1
3
4
5
