PROACTIV
MECHANICAL DETAIL
Chapter Issue 5, Jan 15 Technical Reference Manual 10.9
proximity switches to trigger, if ProActiv is on, the active drive to the squeegee
blades turns ON. The active squeegee remains on until it is: turned off by the
operator, or the machine is powered down, or emergency stopped, or the
squeegee returns to either the dwell position or the home position.
PROACTIV
ADJUSTMENTS AND SETTINGS
10.10 Technical Reference Manual Chapter Issue 5, Jan 15
ADJUSTMENTS AND SETTINGS
This section details the adjustments and settings required to set up the active
squeegee mechanism (it assumes that standard Squeegees have been fitted
to the printer).
Preparation 1. Power up and initialise the printer.
2. With the printer in the ready page; select Maintenance.
3. Select Machine Setup.
4. Select Options.
5. Select Pressure Hardware.
6. Select Fitted.
7. Select Back.
8. Select Back.
9. Select Back.
10. Select Open Cover Commands.
11. Select Carriage To Front.
12. Open the front printhead cover.
13. Remove the squeegees.
14. Clean and Stow the squeegees.
15. Close the printhead front cover.
16. Press the System Button.
PROACTIV
ADJUSTMENTS AND SETTINGS
Chapter Issue 5, Jan 15 Technical Reference Manual 10.11
Squeegee
Pressure
Calibration
A force meter calibration jig and a squeegee pressure plate are required to
perform the squeegee pressure calibration.
NOTE
The front squeegee mount (foot) has two mounting locations, the inner locations
are for ProActiv, and the outer locations are for mounting the squeegee test jig.

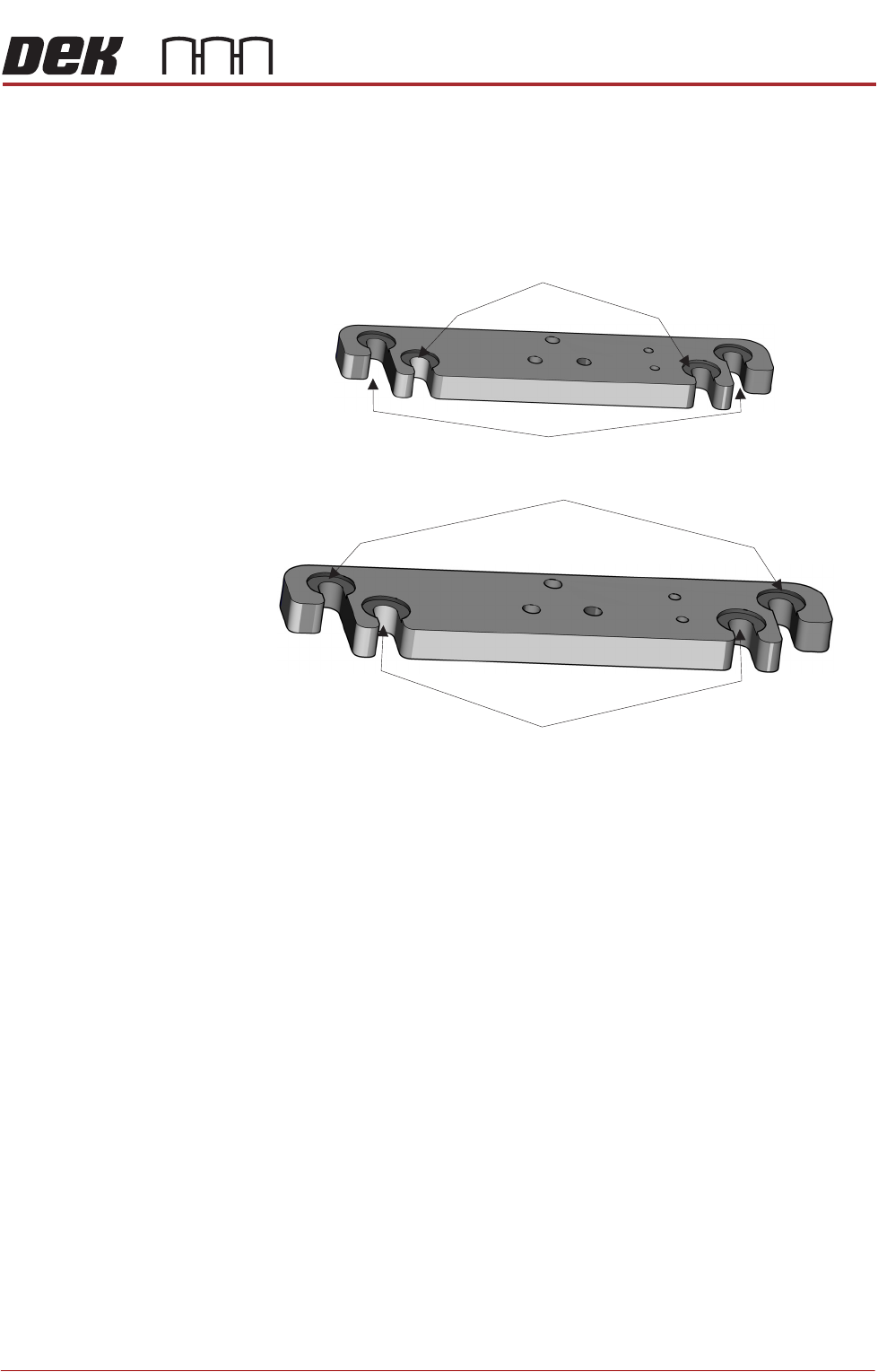

Foot Assemblies
(showing the two squeegee mount locations)
Mount Locations for Pressure Test Jig or Standard Squeegee
Mount Locations for Standard Squeegee
Mount Locations for the Front ProActiv Squeegee Assembly
Mount Locations for the Rear ProActiv Squeegee Assembly
