COVERS
PRINTER COVERS
Chapter Issue 11, Jan 17 Technical Reference Manual 3.3
NOTE
Some of the covers can only be removed in a specific order due to the covers
interlocking with each other.
Cover Removal Before removing covers ensure that the supplies (air and electrical) have been
isolated from the printer.
Ring Head Quarter-
Turn Fasteners
To remove a panel secured with ring head quarter-turn fasteners, turn the
fastener anti-clockwise by a quarter-turn and pull out.

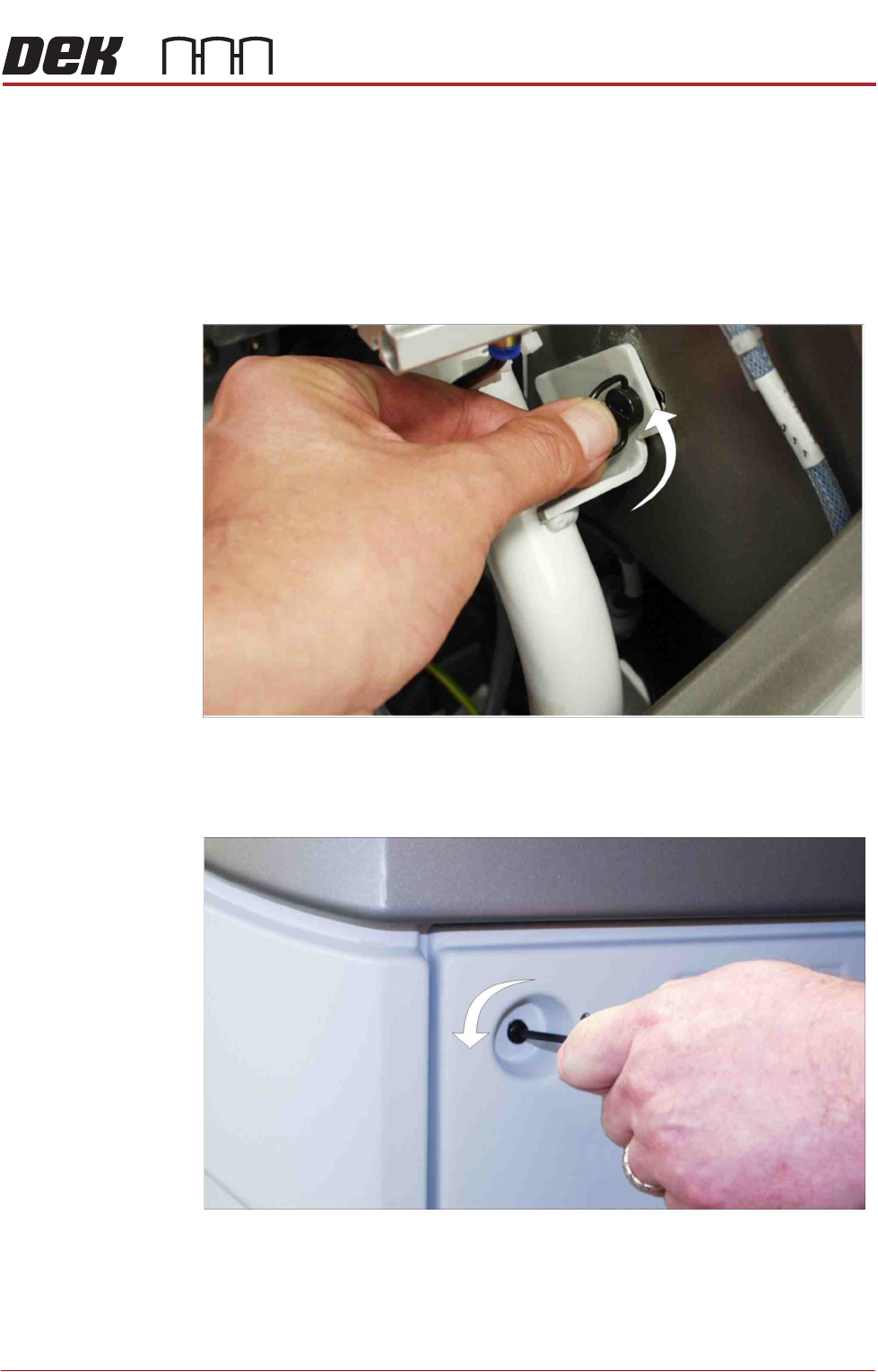

Figure 3-1 Ring Head Quarter-Turn Fastener
Button Head
Quarter-Turn
Fasteners
To remove a panel secured with button head quarter-turn fasteners, using a
4mm Allen key, turn the fastener anti-clockwise by a quarter-turn and pull out.
Figure 3-2 Button Head Quarter-Turn Fastener
COVERS
PRINTER COVERS
3.4 Technical Reference Manual Chapter Issue 11, Jan 17
Front Panel The front panel is secured by a ring head quarter-turn fastener and a button
head quarter-turn fastener.
1. To remove the front panel of the printer, open the front printhead cover and
locate the two quarter-turn fasteners on the inside of the panel.
2. After releasing the fasteners, tilt the top of the panel away from the printer
and lift clear of the guide pins that locate the panel to the printer frame.
Rear Panel Removal of the rear panel requires a 4mm Allen key to release the two button
head quarter-turn fasteners located externally at the top corners of the panel.
After releasing the fasteners, push downwards on the panel to clear the rear
printhead cover, tilt the top of the panel away from the printer and lift clear of the
guide pins that locate the panel to the printer frame.
Safety Covers Safety covers are fitted to the side panels to protect personnel from inadvertent
access to the board entry/exit ports.
NOTE
The lower section of the safety panel can be adjusted to accommodate the
thickness of the product.
To remove the safety cover, remove the four securing screws.
Front Panel
Button Head
Quarter-Turn
Fastener
Front Panel
Ring Head
Quarter-Turn
Fastener
COVERS
PRINTER COVERS
Chapter Issue 11, Jan 17 Technical Reference Manual 3.5
Rear Printhead
Fixed Cover
To remove the rear printhead fixed cover, carry out the following:
1. Remove the rear panel.
2. Release the two quarter-turn fasteners that secure the rear printhead cover
to the cover frame.
3. The rear printhead cover is interlocked with the upper printhead cover using
locating tabs. The rear printhead cover must be lifted to allow the locating
tabs to part.
NOTE
The knock out panel is removed when the printer is connected to a Temper-
ature Control Module (TCM). If a TCM is not fitted the knock out panel must
be intact, or this would contravene the safety requirements the printer is
tested to. Where the knock out panel has been removed and a TCM is not
fitted, ASM recommends fitting a new rear panel.
Rear Printhead
Quarter-Turn
Fastener
Rear Printhead
Quarter-Turn
Fastener
Knock Out
Panel
