Servo unit
Page 4 / 6 23.11.2021
Servo unit
Page 5 / 6 23.11.2021
Pos. Item no. Description Part marking
1 00375965-01 SERVO UNIT SIPLACE CF
2 00337625-04 SERVO AMPLIFIER BOARDTBF120/7
TS (S23-X)
SPARE PART
3 00337626-04 SERVO AMPLIFIER BOARD
TBF120/12TS(S23-Y)
SPARE PART
4 00321734-02 SERVO AMPLIFIER BOARD
TDS120/1D
SPARE PART
5 00334641-01 SERVO AMPLIFIER BOARD SPARE PART
6 03012564-03 SERVO AMPLIFIER TBS/3S1 SPARE PART
8 00334646-02 SERVO AMPLIFIER TRS120/2Z SPARE PART
7 00314164-01 SERVO AMPLIFIER TRS120/2S SPARE PART
9 00344206-05 DYNAMIC BRAKE DBM200/3P-06
11 00344082-01 BALLAST CIRCUIT, REINFORCED
F5HM
SPARE PART
12 00302841S01 POWER SUPPLY (+-15V) SPARE PART
00375963-01 SERVO UNIT BASIC RACK F5HM-CF
00345822-03 SERVO UNIT SIPLACE F5 HM BASE
14 00343908-02 BACKPLANE SERVO
S23/F5CURRENT PRE-REGUL.
Spare Part
15 00320854-02 BACKPLANE SERVO INSERT SPARE PART
16 00321470-03 BACKPLANE SERVO UNIT SPARE PART
17 00337717-01 VOLTMETER SERVO UNIT S23
18 00321949-03 FAN UNIT SERVO UNIT
19 00310847-02 FAN 4414F / 24VDC / 240MA SPARE PART
20 00315209-01 FILTER MAT 230*360 WEAR PART
21 00321785-02 POTENTIAL DISTRIBUTOR SERVO
UNIT S4/F4
22 00300398-03 POTENTIAL DISTRIBUTION BOARD
SERVO-UNIT
Spare Part
23 00321697-02 PLUG-IN SERVO BASE FRAME
24 00337333-01 CRASH BOARD S23/F5HM SPARE PART
00345823-01 CABLE SET FOR SERVO UNIT
80-F5-HM
25 00300163-02 CABLE: TERMINAL BOARD - SERVO
UNIT
26 00300164-02 CABLE: TERMINAL BOARD - SERVO
UNIT
27 00300182-03 CABLE: TERMINAL BOARD - SERVO
UNIT
Servo unit
Page 6 / 6 23.11.2021

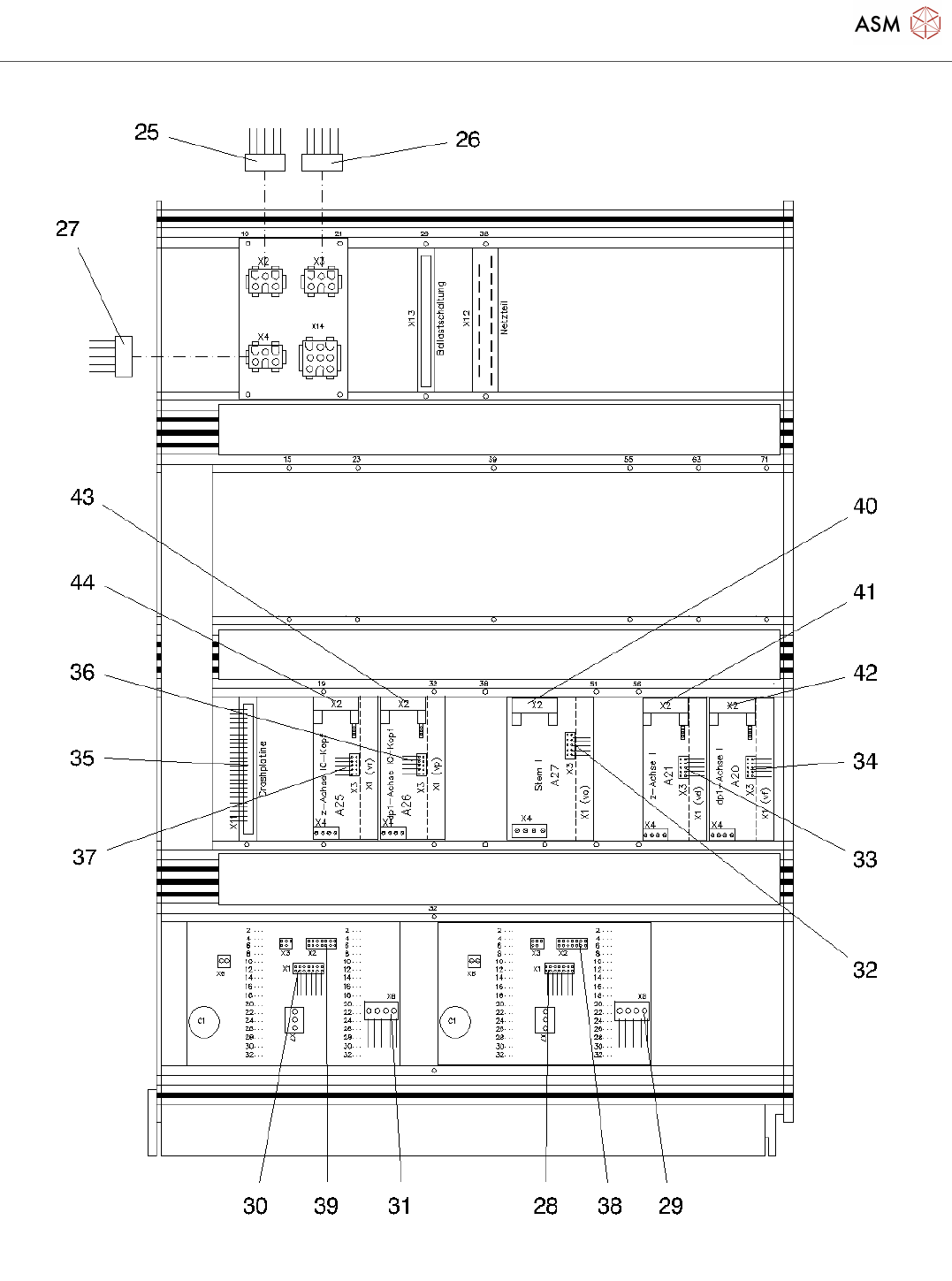

Pos. Item no. Description Part marking
28 00346381-01 CABLE TACHO / CONTROL X-MOTOR
F5-HM
29 00346382-01 CONNECTION CABLE X-MOTOR
F5-HM
30 00346383-01 CABLE TACHO / CONTROL Y-MOTOR
F5-HM
31 00346384-01 PORTAL CABLE (X-MOTOR-F5-HM)
SHIELD
32 00321539-01 CABLE: MOTOR DR-AXIS
SP/IC1-HEAD
33 00321541-03 CABLE: MOTOR/TACHO Z-AXIS
SP/IC1-HEAD
34 00321544-03 CABLE: MOTOR/TACHO DP1-AXIS
W1/W2
35 00321547-03 CABLE: CRASH-BEROS
36 00321796-03 CABLE MOTOR/TACHO Z-AXIS IC2
80F4
37 00321797-03 CABLE MOTOR/TACHO DR-AXIS IC2
80F4
00324359-01 CABLE GROUND TERMINAL BOARD -
SERVO
38 00345488-01 CABLE: CONTROL UNIT - SERVO
UNIT F5HM
39 00345490-01 CABLE: CONTROL UNIT - SERVO
UNIT F5HM
40 00345501-01 CABLE: CONTROL UNIT - SERVO
UNIT F5HM
41 00345502-01 CABLE: CONTROL UNIT - SERVO
UNIT F5HM
42 00345503-01 CABLE: CONTROL UNIT - SERVO
UNIT F5HM
43 00345504-01 CABLE: CONTROL UNIT - SERVO
UNIT F5HM
44 00345505-01 CABLE: CONTROL UNIT - SERVO
UNIT F5HM
