JaNets Instruction Manual 3. Launcher
3-11
Launcher
Display a confirmation message for checked out files on exit:
When this item is checked, the message appears if there is any file checked out with the
Program Explorer on termination.
The default setting is OFF.

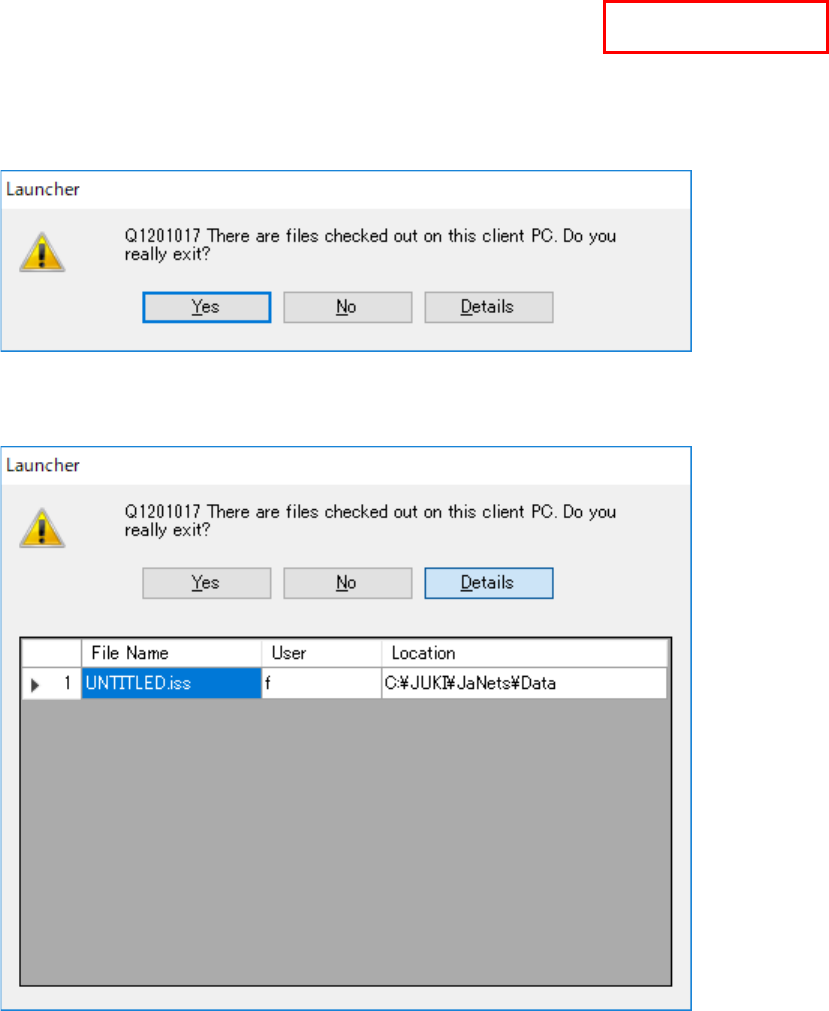

Figure 3.5-5 If there is any file checked out with the Program Explorer
When you press the <Details> button, the list of files checked out appears on the screen.
Figure 3.5-6 List of files checked out
Automatic backup
Validate the automatic backup:
When this item is checked off, the MDB files of the component database, feeder database,
mark database set in the shop floor setup at the end of launcher are backed up. The default
setting is OFF.
Execution interval:
Set up the backup time to be executed in some days subsequent to the last backup. The
default setting is 3 days.
Automatic backup folder:
Specify the folder for backup. Specify a folder that permits writing.
Data Manager
JaNets Instruction Manual 3. Launcher
3-12
TraceMonitor
Use/Not use:
When you select the “Use” radio button, TraceMonitor is displayed
on the “Shared” screen of the Launcher.
Collect:
When you put a checkmark in this check box, information on each device is collected.
If you do not have the TraceMonitor license, it is not displayed on the screen.
When you select “IFS-NX,” you can make settings of the environment for IFS-NX.
When linking to the IFS-NX, select the "Use" of the IFS-NX and set up a server name etc. to
perform a connection test.
When you do not use the IFS-NX, select the "Not use."
Figure 3.5-7 “Set Environments” dialog box (for setting the IFS-NX)
IFS-NX Configuration : Set whether to use the IFS-NX function.
Server Name : Enter a server name directly, or select the <Browse> to specify a
network computer.
Browse : When you click this button, the dialog box for browsing the network
computers appears on the screen.
Port No. : Enter the port number of the IFS-NX server.
When you select the <Connection Test> button after setting a server name, the system performs
the connection test for the IFS-NX. When the system is connected to the IFS-NX successfully, the
following message appears on the screen.
Figure 3.5-8 When the system is connected to the IFS-NX server successfully
When you click the <OK> button, the “Set Environments” dialog box reappears.
TraceMonitor
JaNets Instruction Manual 3. Launcher
3-13

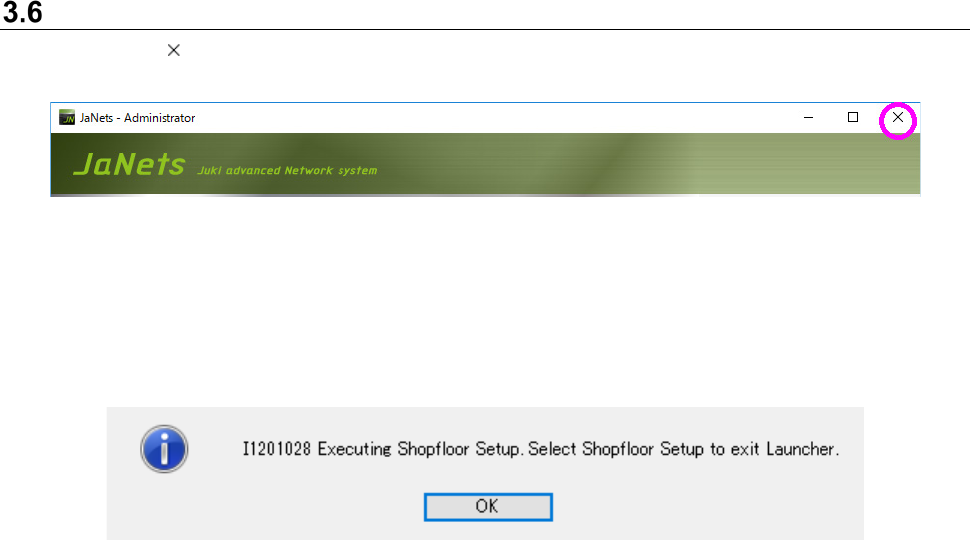

Quitting the Launcher
Click the < > button provided on the upper right side of the launcher.
Figure 3.6-1 Exit button
The confirmation message appears. Click the <Yes> button.
If any JaNets application is running when you try to quit the JaNets Launcher, the following
message indicating that the application is running appears on the screen.
Figure 3.6-2 Message that some application is running
(Example: The Shopfloor Setup application is running.)
