Renaming a production line
Select a desired line (or EPU) from the floor configuration tree, and perform the operation ① or
② below.

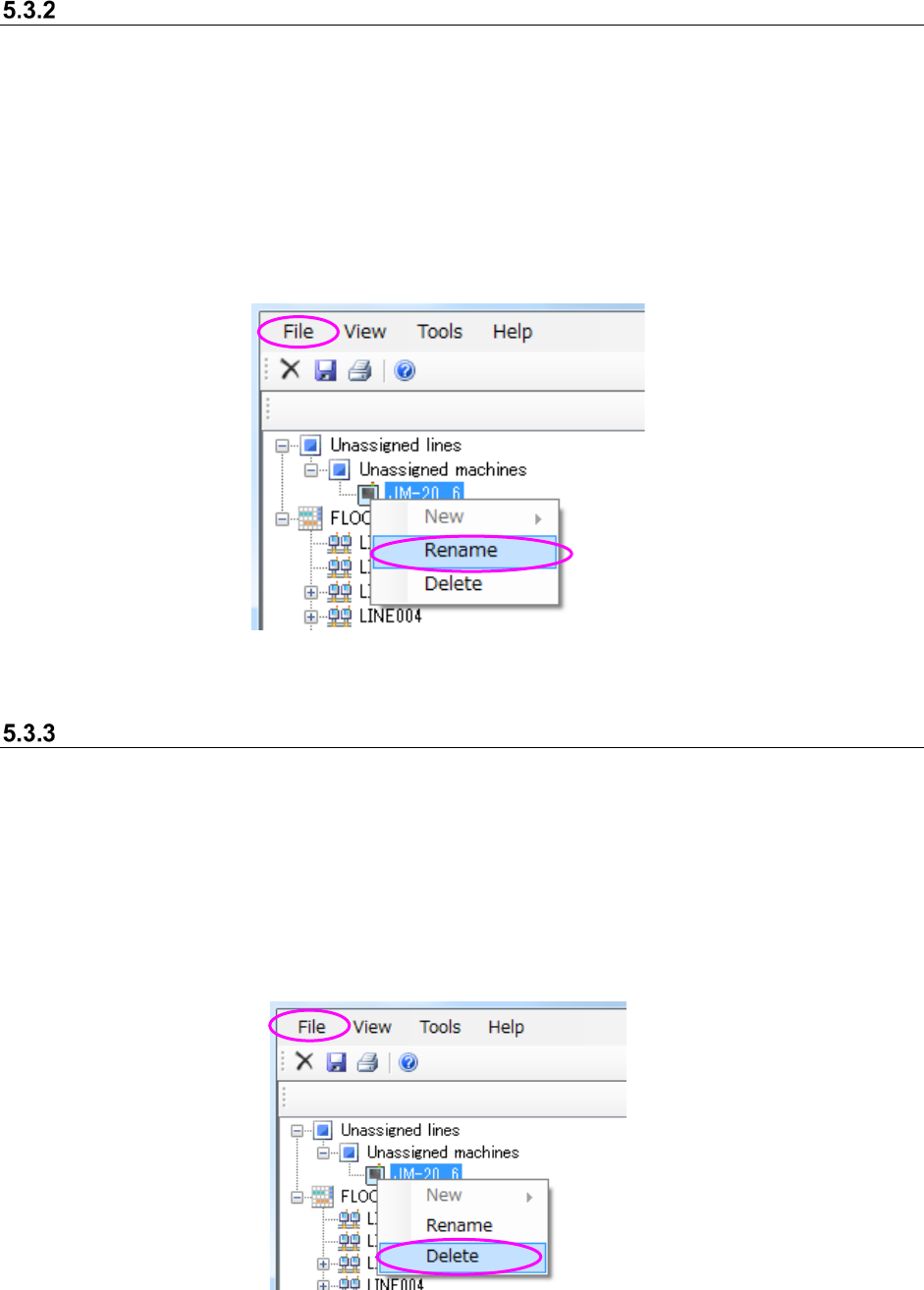

① Select the [File] command from the menu bar, and then the [Rename] command from the “File”
menu.
② Click the right button of a mouse to display the pop-up menu. Select the [Rename] command
from this pop-up menu.
* When you perform the operation ① or ②, the selected production line hierarchy can accept
your input, and you can change the production line name.
Figure 5.3-4 Changing the production line name (Operation ②)
Deleting a production line
Select a production line (or EPU) from the floor configuration tree, and perform the operation ①
or ② below.
① Select the [File] command from the menu bar, and then the [Delete] command from the “File”
menu.
② Click the right button of a mouse to display the pop-up menu. Select the [Delete] command
from this pop-up menu.
* You cannot delete any unassigned machine hierarchy.
Figure 5.3-5 Deleting a production line name (Operation ②)
JaNets Instruction Manual 5. Shopfloor Setup
5-13
Production line view (Production line information display)
Set the order of machines assigned to a production line on the production line view.

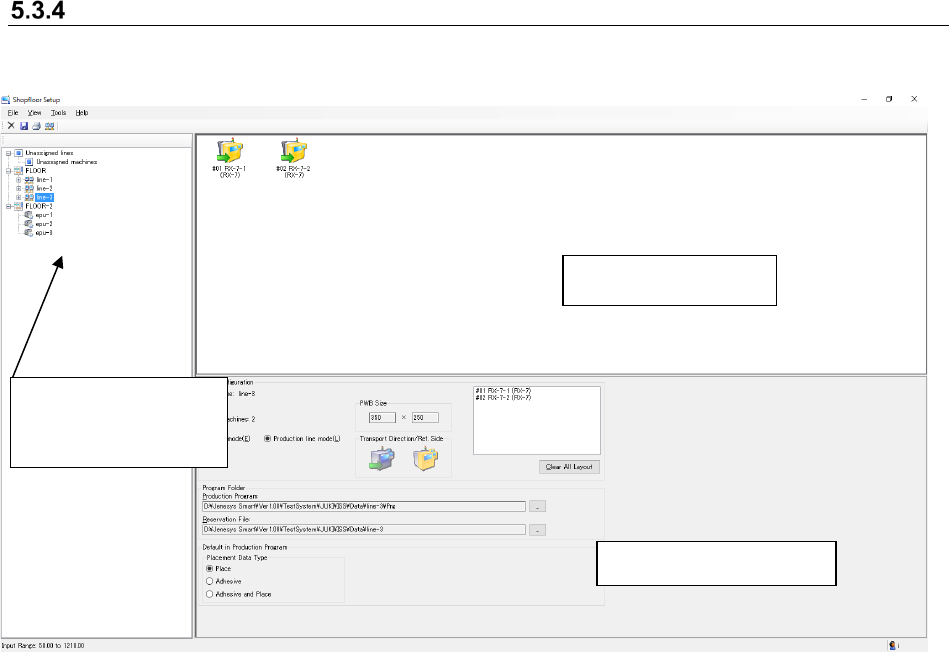

Figure 5.3-6 Example of a screen for selecting a production line
Production line view: You can check the assignment of machines to a production line. You can
change the order of assigned machines.
Production line details: The list of machines in a production line, the maximum value of the board
size for the production line, the board transport direction and the
reference side are displayed here.
Set the line mode or EPU mode. The line mode can be selected only
when a Line Manager option is added.
You can set the initial folder to which a production program is to be output.
Set a placement data type. This can be set in the line mode.
Production line view:
Select the desired
production line on the
floor configuration tree.
Production line details
JaNets Instruction Manual 5. Shopfloor Setup
5-14
Assigning a machine to a production line
Perform the operation ① or ② below.
① Drag a machine located under the “Unassigned” machines of the floor configuration tree to
the production line view.
② Drag a machine located under a production line (or EPU) of the floor configuration tree to the
production line view.
Figure 5.3-7 Before assigning a machine to a production line
Figure 5.3-8 After a machine is assigned to a production line
(Board transport direction: Left to right, Reference side: Front)
* The machine numbers are automatically assigned from #1 to #10.
* You can assign up to ten machines to one production line mode.
* In the EPU mode, the number of machines that can be assigned for 1 line is 1.
* The applicator can be arranged collectively from the head of the line.
* An inserting machine and an adhesive dispenser/mounter are not assigned to the same
production line at the same time.
* The Equipment Manager license is required to assign a printer or an inspection machine to a
production line.
The displayed production line details are changed as shown below:
Figure 5.3-9 Production line details – Before a
machine is assigned to a production line
Figure 5.3-10 Production line details – After a
machine is assigned to a production line
Production line view
The machine icon that indicates the board transport
direction and the reference side, the assignment number,
the machine name and the model name are displayed.
A machine is moved to
the production line
layer of the
