JaNets In structio n Manual 5. Shopflo or Setu p 5- 25 2) Example of a KD - 207 7 adhesive d ispenser Figure 5.4 - 13 Standard Equipment S ervices (KD - 2077) The dispens ing setting screen is displayed. When the n eedle…
JaNets Instruction Manual 5. Shopfloor Setup
5-24
Figure 5.4-11 Option Devices (RX-6)
Figure 5.4-12 Operation Options (RX-6)
* Operation options cannot obtain information with the "Learn Conditions."
The device that cannot be attached at the same time cannot be selected.
Items that can be set with the Machine Setup utility on the machine main unit
are displayed here. You cannot select any item that cannot be set with the
Machine Setup utility.
Select the recognition type
of a standard VCS:
- None
- Side Recognition
- Bottom Recognition
- Side, Bottom
Attaching position of IC Collection Belt
- Mechanical feeder bank
Specify hole number of left end of occupying width.
- Electric feeder bank
(Only machine type to be set.)
Specify the third hole number (center) of left end of
occupying width.
JaNets Instruction Manual 5. Shopfloor Setup
5-25
2) Example of a KD-2077 adhesive dispenser
Figure 5.4-13 Standard Equipment Services (KD-2077)
The dispensing setting screen is
displayed.
When the needle type is “Not use”,
dispensing setting is disabled for the
head.
JaNets Instruction Manual 5. Shopfloor Setup
5-26
Figure 5.4-14 Option Devices (KD-2077)

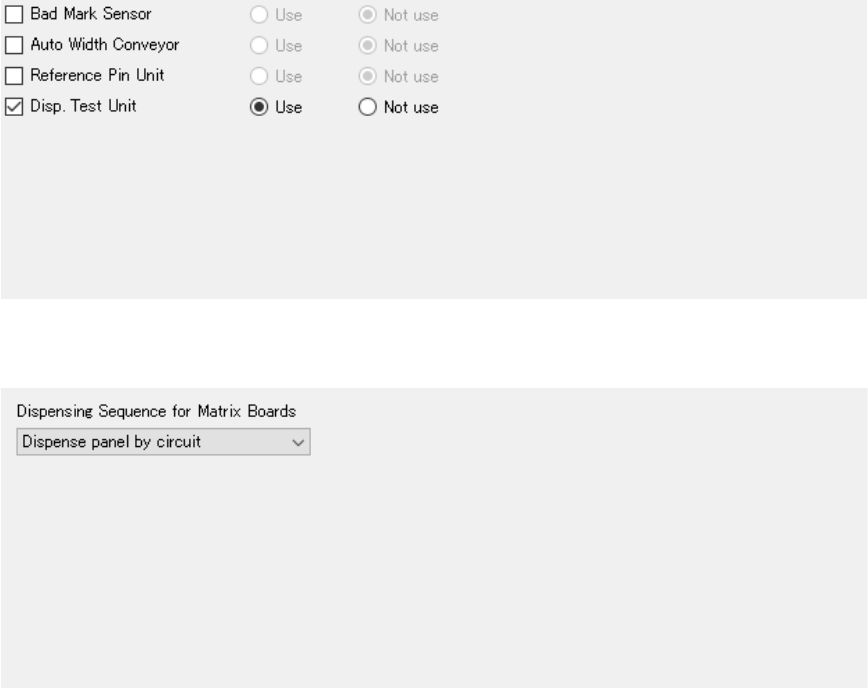

Figure 5.4-15 Operation Options (KD-2077)
* Operation options cannot obtain information with the "Learn Conditions."
