JaNets In structio n Manual 5. Shopflo or Setu p 5- 40 Claw Setting Figure 5.6 - 13 “ Equipment Setup” scree n (Claw ) Import: T ake in C law for JM - 1 00 from INI f ile.
JaNets Instruction Manual 5. Shopfloor Setup
5-39
INS Bulk Feeder setting
Figure 5.6-11 “Equipment Setup” screen (INS bulk feeder)
R-ATC setting
Figure 5.6-12 “Equipment Setup” screen (R-ATC)
Select Model:
Select an R-
ATC machine model whose
information is to be imported.
Import:
The system loads R-ATC information
from the INI file.
Import:
The system obtains the INS bulk feeder setting
from the INI file.
Delete:
The system deletes the INS bulk feeder setting.
Details:
The system displays a component on each lane of
the INS bulk feeder on the screen.
JaNets Instruction Manual 5. Shopfloor Setup
5-40
Claw Setting

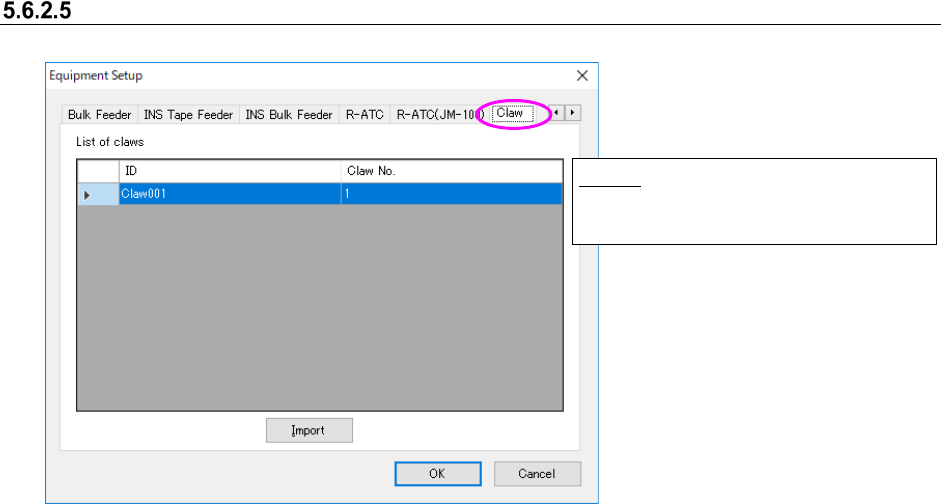

Figure 5.6-13 “Equipment Setup” screen (Claw)
Import:
Take in Claw for JM-100 from INI file.
JaNets Instruction Manual 5. Shopfloor Setup
5-41
Error operation
If any invalid value is entered, the corresponding error message appears on the screen. Click the
<OK> button on the displayed screen, and enter data again on the line on which the error mark is
displayed.

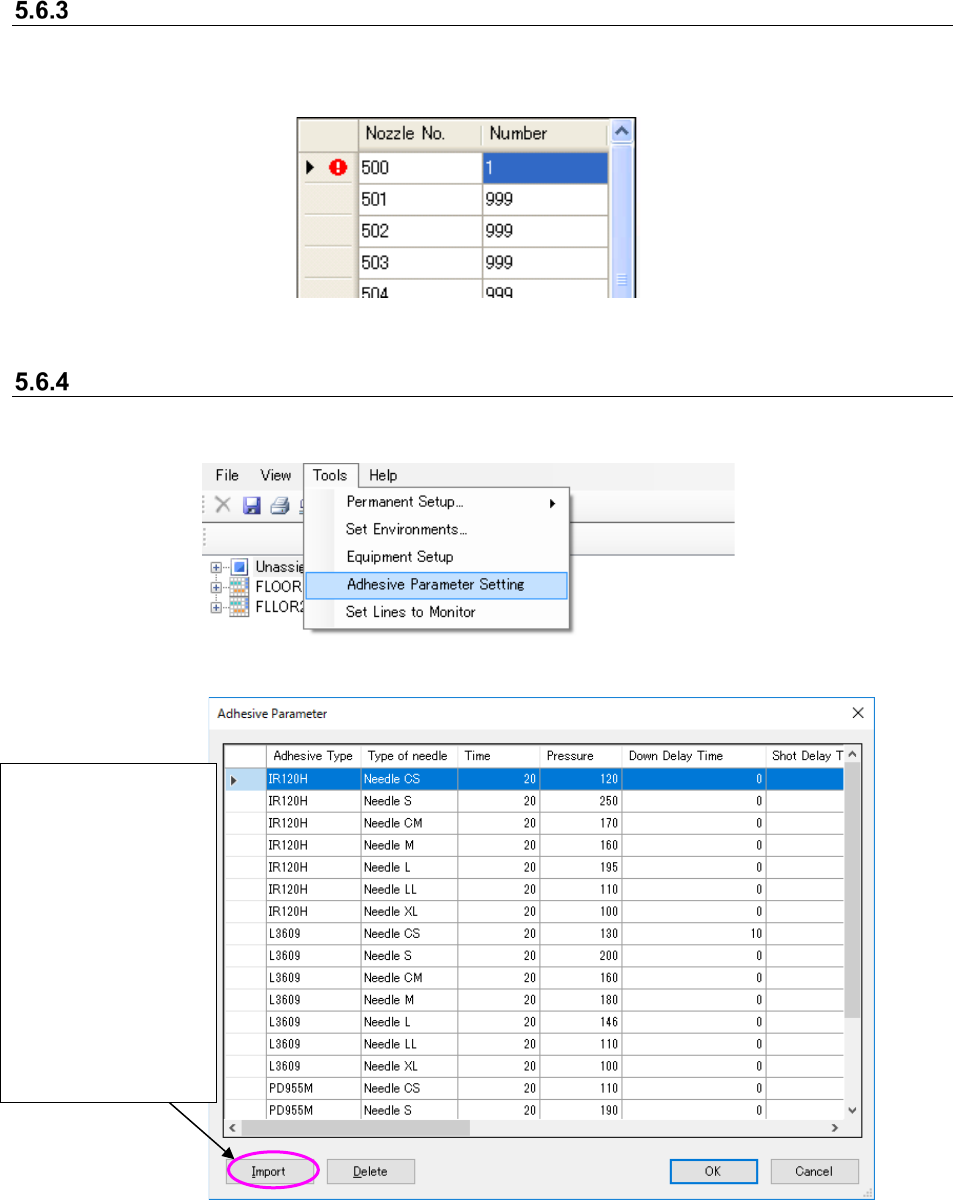

Figure 5.6-14 Input error
Adhesive parameter setting
The list of adhesive parameters that are now registered is displayed by selecting “Tool” -
“Adhesive parameter setting.”
Figure 5.6-15 “Tool” - “Adhesive parameter setting”
Figure 5.6-16 “Adhesive parameter setting” screen
* The adhesive parameter cannot be edited directly.
Import the adhesive
parameter from the
adhesive parameter
file (*AD2).
* The adhesive
parameter that can
be imported is only
the adhesive
parameter file of
*AD2 type.
* Only the imported
adhesive parameter
can be deleted.
