JaNets Instruction Manual 5. Shopfloor Setup
5-59
Error messages displayed on the confirmation screen
When the nozzle confirmation screen appears, the error messages shown below appear on the
screen.
Error condition
Displayed error message
No machine is assigned to the line at start-up.
“Found no machine information. The layout window will be
closed.”
A machine that is not assigned to the line is
selected at start-up.
“Unassigned machine be selected. Before start-up, select
assigned machine.”
A production program selected from the combo
box cannot be loaded.
“Failed to read the production program (only permanent
nozzles of the machine will be displayed).”
A loaded production program does not have
any optimized data.
“Production program " has no optimization condition data
(only permanent nozzles of the machine are displayed).”
The machine configuration of the selected line
is different from that of the production program.
“Machine layout differs between the line and the production
program (for machine No., only permanent nozzles of the
machine are set).”
JaNets Instruction Manual 5. Shopfloor Setup
5-60
Shopfloor Setup – Feeder Layout
What is the Feeder Layout?
This application allows you to handle changes of feeder assignments visually.
Starting Up And Quitting the Feeder Layout
To start up the Feeder Layout: Select the [Tools] command from the Shopfloor Setup menu bar,
the [Permanent Setup] command and then the [Feeder Layout]
command in this order.

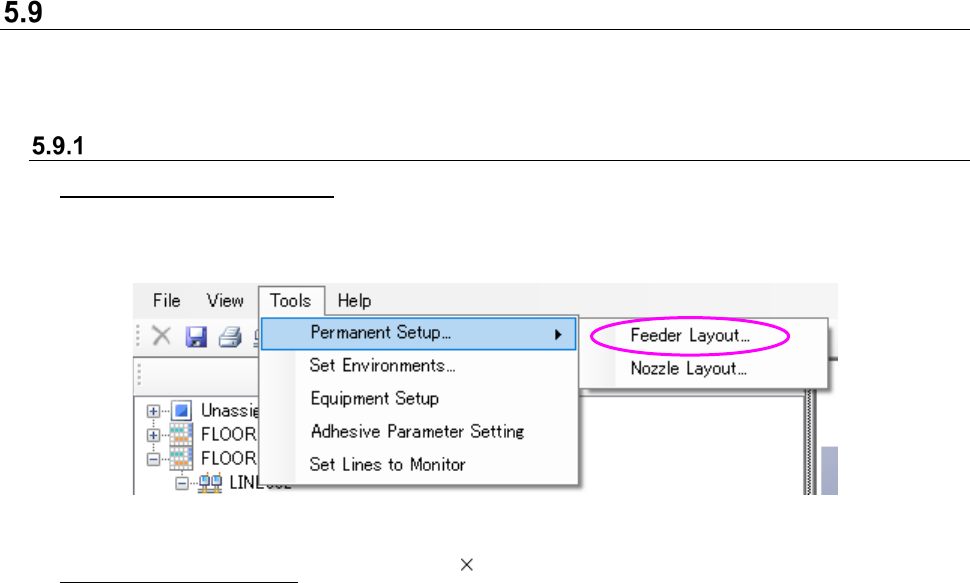

Figure 5.9-1 Starting up the Feeder Layout
To quit the Feeder Layout: Click the “ ” at the upper right corner of the title bar on the
“Permanent Feeder Setup” screen shown in Figure 5.9.2.
JaNets Instruction Manual 5. Shopfloor Setup
5-61
Permanent Feeder Setup Screen
This screen allows you to make settings of a feeder that is always set (fixed) on a machine when
you set the machine with the Shopfloor Setup.
Screen configuration

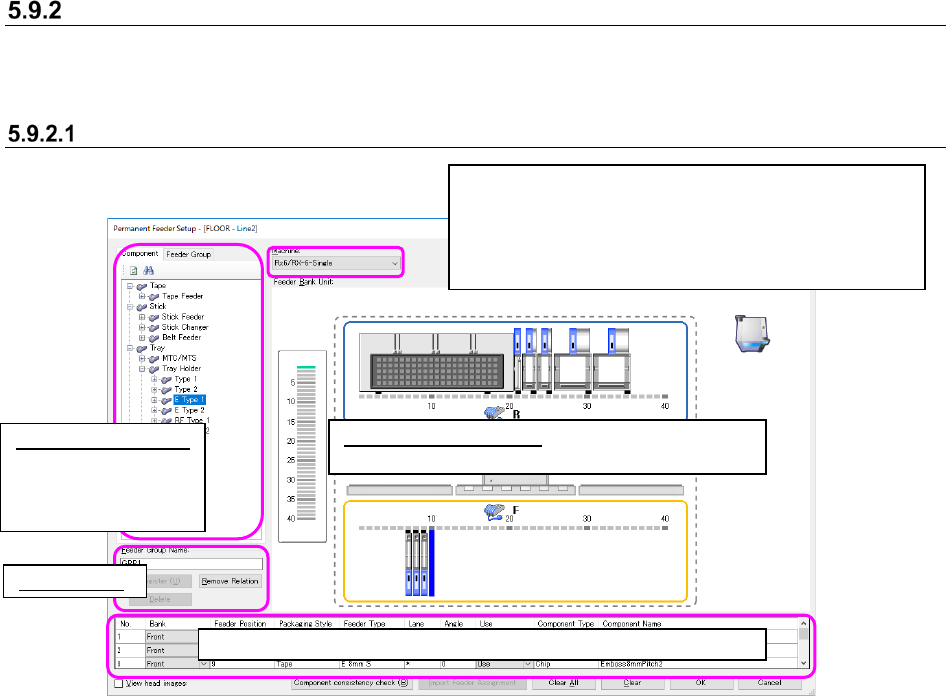

Figure 5.9-2 “Permanent Feeder Setup” screen
Feeder Group Name: Displays the feeder group name currently being referred to. You can enter a
group name when registering a new feeder group here also. If a machine
does not refer to any feeder group, this field becomes blank.
Register: Registers a new feeder group or updates the existing one (when a name
displayed in the “Feeder Group Name” field is the same as that of an existing
feeder group, the system performs the updating process, and when it
indicates the name of a feeder group that does not exist, the system registers
it as a new feeder group name).
If you do not have the privilege to save the Shopfloor Setup settings, the
<Register> and the <OK> buttons become displayed in gray; you cannot
select them.
Details setting screen:
Displays the detailed
information on a
feeder assigned on
the layout screen.
Feeder bank unit screen:
Sets a feeder for a machine (as a permanent feeder).
You can select a “machine name/model type” you want
to set its permanent feeder setup, and the machine
currently being selected appears here.
* A machine such as an adhesive dispenser is not
displayed in this selection field.
Feeder Group
Information setting screen: (“Component” list tree/”Feeder Group” tree)
