JaNets Instruction Manual 7. Program Editor
7-20
7.4.2 Editing placement data
Placement data
When you select the “Placement Data” from the tree view, the following screen appears.

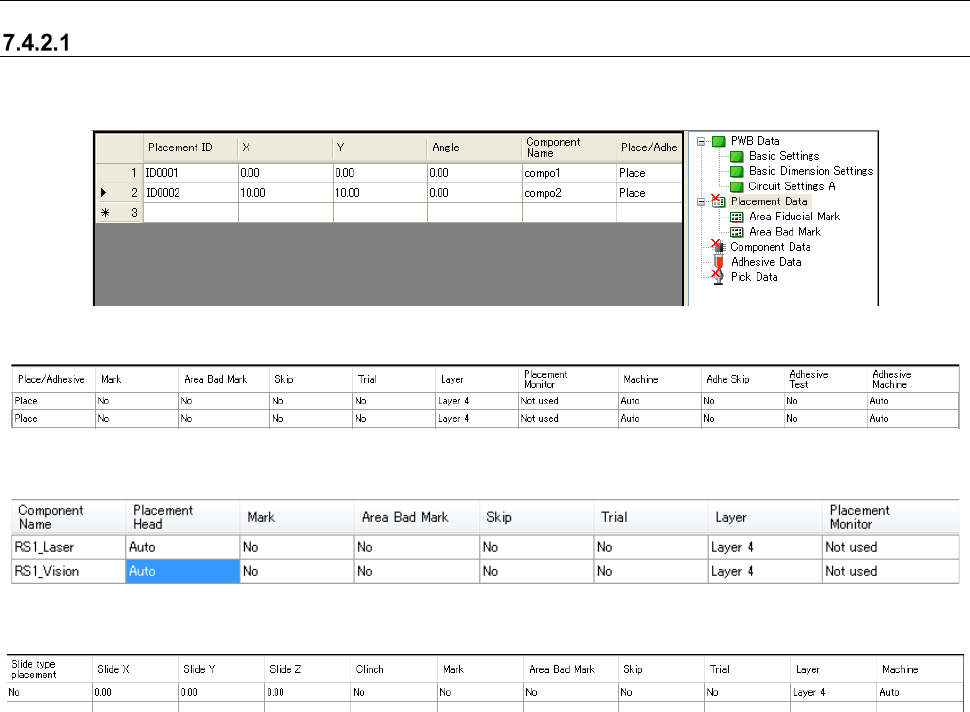

Figure 7.4-22 “Placement Data” screen 1
Figure 7.4-23 “Placement Data” screen 2 (In the line mode)
Figure 7.4-24 “Placement Data” screen 2 (In the EPU mode)
Figure 7.4-25 “Placement Data” screen 2 (In case of the Line Mode Including JM-100)
[When a production line includes a JM series machine]
None of the menu items, “Place/Adhesive,” “Placement Monitor,” “Adhe Skip,” “Adhesive Test” and
“Adhesive Machine” are displayed on the screen.
[When the JM series EPU is used]
The menu item “Placement Monitor” is not displayed on the screen.
[In Case of the Line Including JM-100 and EPU of JM-100]
Slide Mounting, Slide XYZ and Clinch Setting are displayed.
JaNets Instruction Manual 7. Program Editor
7-21
Placement ID and component name can be copied and pasted with the Ctrl+C key and the Ctrl+V
key.
Regarding the placement ID, placement coordinates X/Y, angle, and component name, the data
created with another text editor or Excel can be copied with the Ctrl + C key, and then pasted with
the Ctrl + V key.

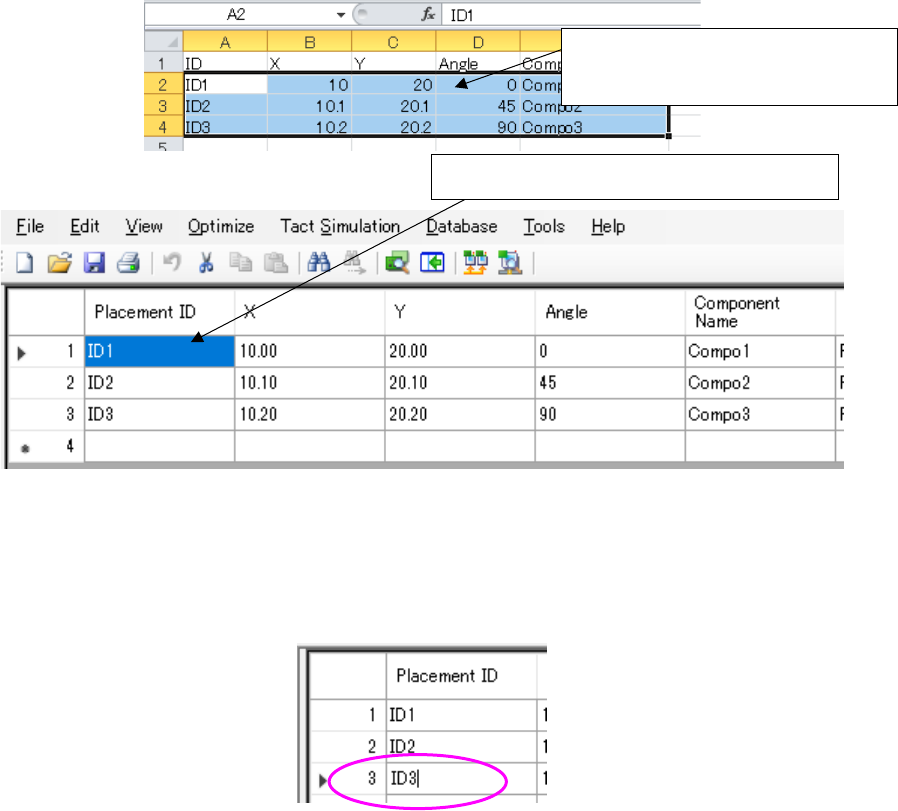

Figure 7.4-26 Copy and paste operation on the Placement data list screen
(If a comma is included in the placement ID, it cannot be pasted correctly. Convert it to another
character and then perform pasting.)
However, when the cell of placement ID and component name is editing, placement ID and com-
ponent name cannot be copied and pasted with the Ctrl+C key and the Ctrl+V key.
Figure 7.4-27 You cannot perform the Ctrl + V operation while editing a “Placement ID.”
Moreover, when the cell of placement ID and component name has a cursor, the "copy" and “paste”
of an edit menu cannot be performed. (The copy and paste of an edit menu is performed to a line
of placement data.)
* In the EPU mode, “Placement/application”, “Machine specification”, “Application skip”,
“Application test” and “Application machine specification” are not displayed.
In the line mode, “Placement head specification” is not displayed.
* Placement layer
A placement layer (displayed in the “Layer” column) is set in “the priority order of placement,”
and you can enter a value in the range of 1 to 10,000 when you use an RX-7 series.
When the placement data is uploaded changing the input range from 8 to 10,000 on the side of
an RX-7 series after being downloaded with the JaNets, the Program Editor considers the
placement data incomplete. (The layer is supposed to be blank.)
In order to re-optimize the placement data, set up again in the range of the layer 1 to 7.
The data row entered with Excel can
be copied at a time.
Copied data is pasted to the “Placement ID”
JaNets Instruction Manual 7. Program Editor
7-22
Area Fiducial Mark
When you select “Edit” or “Browse” in a “Mark” cell on the “Placement Data” screen, the “Area
Fiducial Mark” setting screen appears.

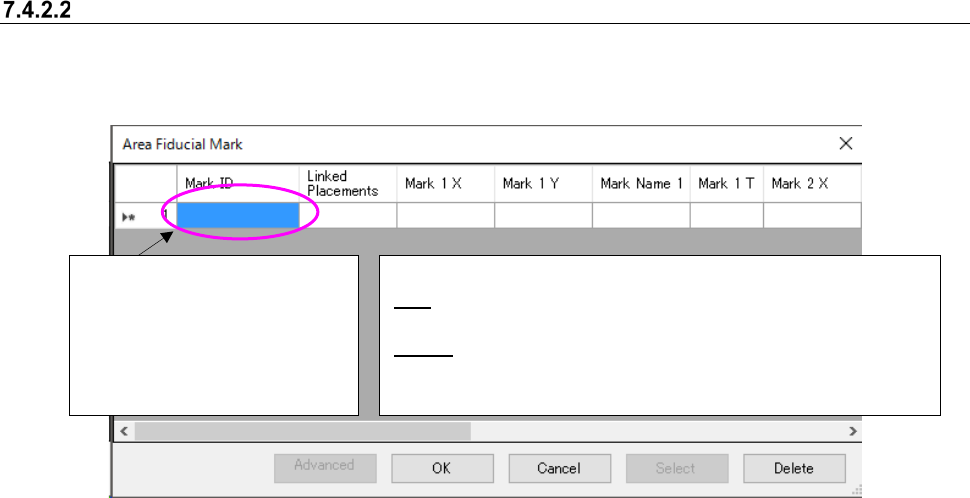

Figure 7.4-28 “Area Fiducial Mark” screen
Mark ID can be copied and pasted with the Ctrl+C key and the Ctrl+V key.
However, when the cell of mark ID is editing, the mark ID cannot be copied and pasted with the
Ctrl+C key and the Ctrl+V key.
[When a JX-350 and RS-1 are used]
If you finish creating one piece of mark data when you select “LED” as the “Mark Type,” the system
determines that Placement data has been completed.
<Operations of the buttons when “Edit” is selected>
OK: Goes back to the “Placement Data” screen, and saves the
input data. “NO” is displayed in the “Mark” cell.
Select: Goes back to the “Placement Data” screen, and displays
the selected mark ID in the “Mark” cell.
<Operations of the buttons when “Browse” is selected>
The mark ID is displayed in the
format “Mxxxx”
(up to eight characters).
The format “Sxxxx” (up to eight
characters): when Mark Type
is ”Solder” or “Solder (PWB)”.
