JaNets Instruction Manual 7. Program Editor

7-23

Area Bad Mark

When you select “Edit” or “Browse” in an “Area Bad Mark” cell on the “Placement Data” screen,

the “Area Bad Mark” setting screen appears. You can set up to 10,000 bad marks for each com-

ponent placement positions. See

Section “7.4.2.2 Area Fiducial Mark” for how to set data.

R10

C10

R10

C10

R10

C10

R10

C10

R10

C10

R10

C10

R10

C10

R10

C10

R10

C10

R10

C10

Circuit

Figure 7.4-29 Image for setting an area bad mark

Figure 7.4-30 “Area Bad Mark” screen

Mark ID can be copied and pasted with the Ctrl+C key and the Ctrl+V key.

However, when the cell of mark ID is editing, the mark ID cannot be copied and pasted with the

Ctrl+C key and the Ctrl+V key.

Bad mark ID

BM001

Bad marks exist on a board.

When the bad mark ID “BM001” is assigned

to a component placement position “U1”

When the bad mark ID “BM001” is assigned to

component placement positions “U1” and “R10”

OK: Goes back to the “Placement Data” screen, and saves the input data. “NO”

appears in the “Mark” cell.

Select: Goes back to the “Placement Data” screen, and the selected mark ID is

displayed in the “Mark” cell.

<Operations of buttons when you select “Browse”>: The <OK> button is disabled.

Delete: Deletes bad mark data, changes all “Area Bad Mark” settings of Placement

data that use the selected bad mark ID to “NO” and goes back to the “Placement

Data” screen.

Reference: Sets the reference position of coordinates. When

you click the right button of a mouse, you can select one of the

followings: “Reference Circuit,” and “Circuit Origin.”

Sets bad mark information for

an RX-7 series.

See Section 7.4.1.3.1 “RX-7

series bad mark information”

for the detailed settings.

JaNets Instruction Manual 7. Program Editor

7-24

Clinch/ Clinch Support

If [Clinch] of Mounting Data Screen is [Clinch No. 1 ~ 4], perform the setting pattern which was set

by the clinch of component data is performed against the component at mounting point.

In case of [Edit] or [Ref.], Clinch Support Setting Screen is displayed.

Figure 7.4-31 “Clinch Support” screen

OK: Goes back to the “Placement Data” screen, and saves the input data. “NO” appears in the “Clinch” cell.

Select: Goes back to the “Placement Data” screen, and the selected mark ID is displayed in the “Clinch” cell.

<Operations of buttons when you select “Browse”>: The <OK> button is disabled.

Delete: Delete the Support Data.

Deletion is unable when the data using Support ID is existed.

JaNets Instruction Manual 7. Program Editor

7-25

7.4.3 Editing component data

Displaying the component data list

When you select the “Component Data” from the tree view, the following screen appears. Com-

ponent data not linked with any placement data is also displayed.

Figure 7.4-32 Component data list

The “Centering (nozzle number)” item to be displayed varies depending on the machine model as

shown below. Only the “Centering” item corresponding to the machine model that configures the

selected production line is displayed.

When the selected production line consist of an RX-6.

Figure 7.4-33 Displayed nozzle pattern

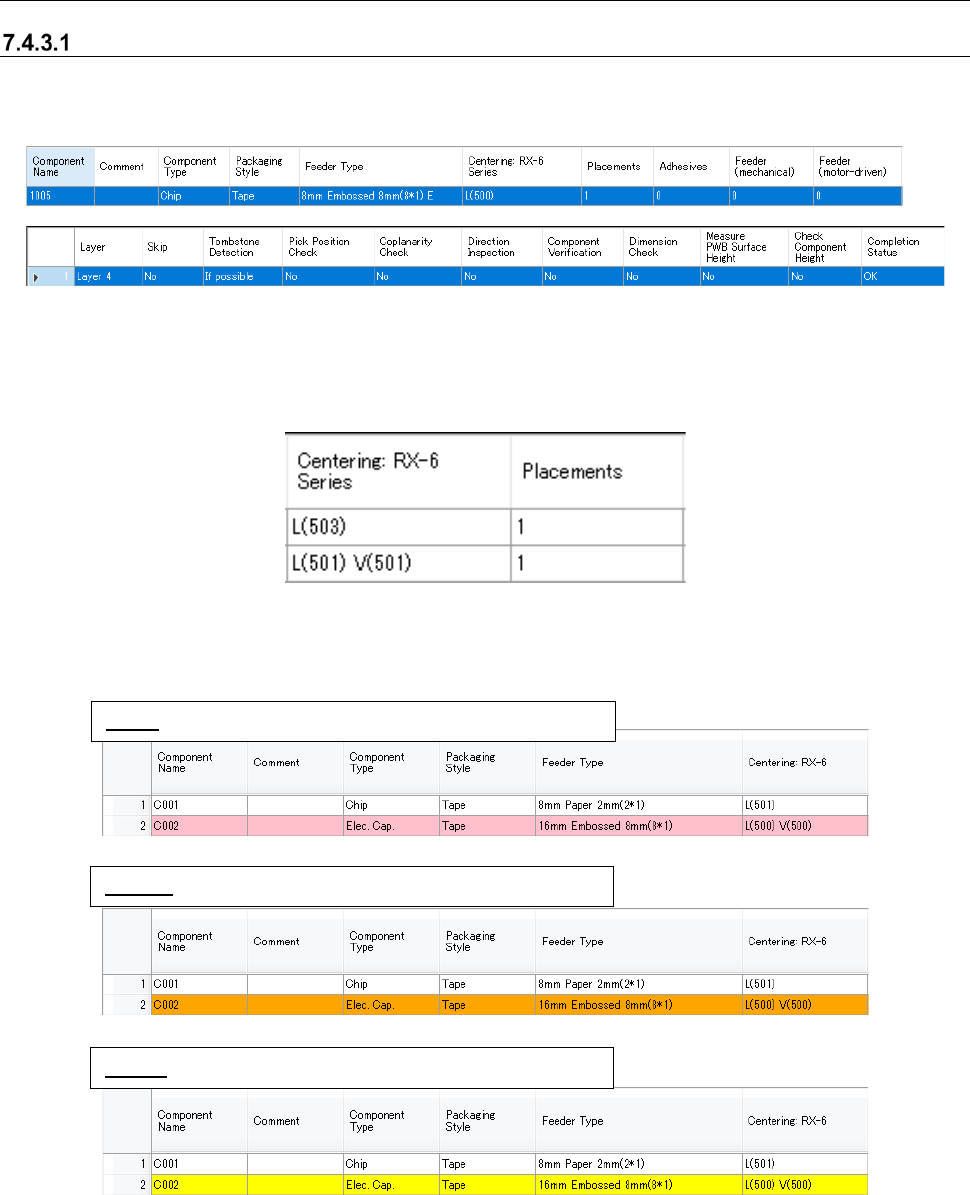

The state indicated with each color on the “Component Data” screen is described below.

Figure 7.4-34 Component data list – displayed colors

* When you perform a key operation: Ctrl + drag and Ctrl + drop or Ctrl +C key and Ctrl +V key for

a line of data on the Component data list screen, you can overwrite the component data with the

copied data.

Pink: Component data not linked with any placement data.

Orange: Data on a component to be skipped.

Yellow: Not completed component data.
