JaNets Instruction Manual 7. Program Editor
7-53
Placement conditions screen (JM-20 Series)
Figure 7.4-73 Placement conditions (JM-20 Series) screen
Table 7.4-38 Placement condition (JM-20 Series) screen items
Item Description
Z Two-Step Speed
Control
Specifies whether to control in two steps the speed at which the nozzle moves up or
down to place a component on a board.
When you want to control the speed in two steps, enter the height at which the
speed shall be controlled for the second time to move up and move down a nozzle
respectively.
Control Mode
Selects how the end of a nozzle should be pushed to place a component on a board,
“Stroke” or “Load.”
Picking Stroke
(Stroke)
Specifies how much to push the end of the nozzle to place a component on a board
in the unit of mm.
Default: 0.20 mm. When a gripper nozzle is used: 0.000 mm. When “Tray” is
selected as the packaging style: 1.000 mm. When the length of the shorter side
of the outer dimensions is less than 0.45 mm: 0.000 mm
Picking Stroke
(Load)
Specifies how much to push the end of the nozzle to pick up a component in the unit
of gram.
The input range and the default value vary depending on the nozzle number and the
centering requirements.
Vacuum Control
Specifies whether to make an adjustment of vacuum time to pick up a component.
To make an adjustment, enter the adjusting time in the unit of ms.
Placement conditions screen (JM-10 Series)
Figure 7.4-74 Placement conditions (JM-10 Series) screen
Table 7.4-39 Placement condition (JM-10 Series) screen items
Item Description
Picking Stroke
Specifies how much to push the end of the nozzle to place a component on a board.
Vacuum Control
Specifies whether to make an adjustment of vacuum time to pick up a component.
To make an adjustment, enter the adjusting time in the unit of ms.
JaNets Instruction Manual 7. Program Editor
7-54
Placement conditions screen (JM-100 Series)
Figure 7.4-75 Placement conditions (JM-100 Series) screen
Table 7.4-40 Placement condition (JM-100 Series) screen items
Item
Description
Picking Stroke
Specifies how much to push the end of the nozzle to place a component on a board.
Vacuum Control
Specifies whether to make an adjustment of vacuum time to pick up a component.
To make an adjustment, enter the adjusting time in the unit of ms.
JaNets Instruction Manual 7. Program Editor
7-55

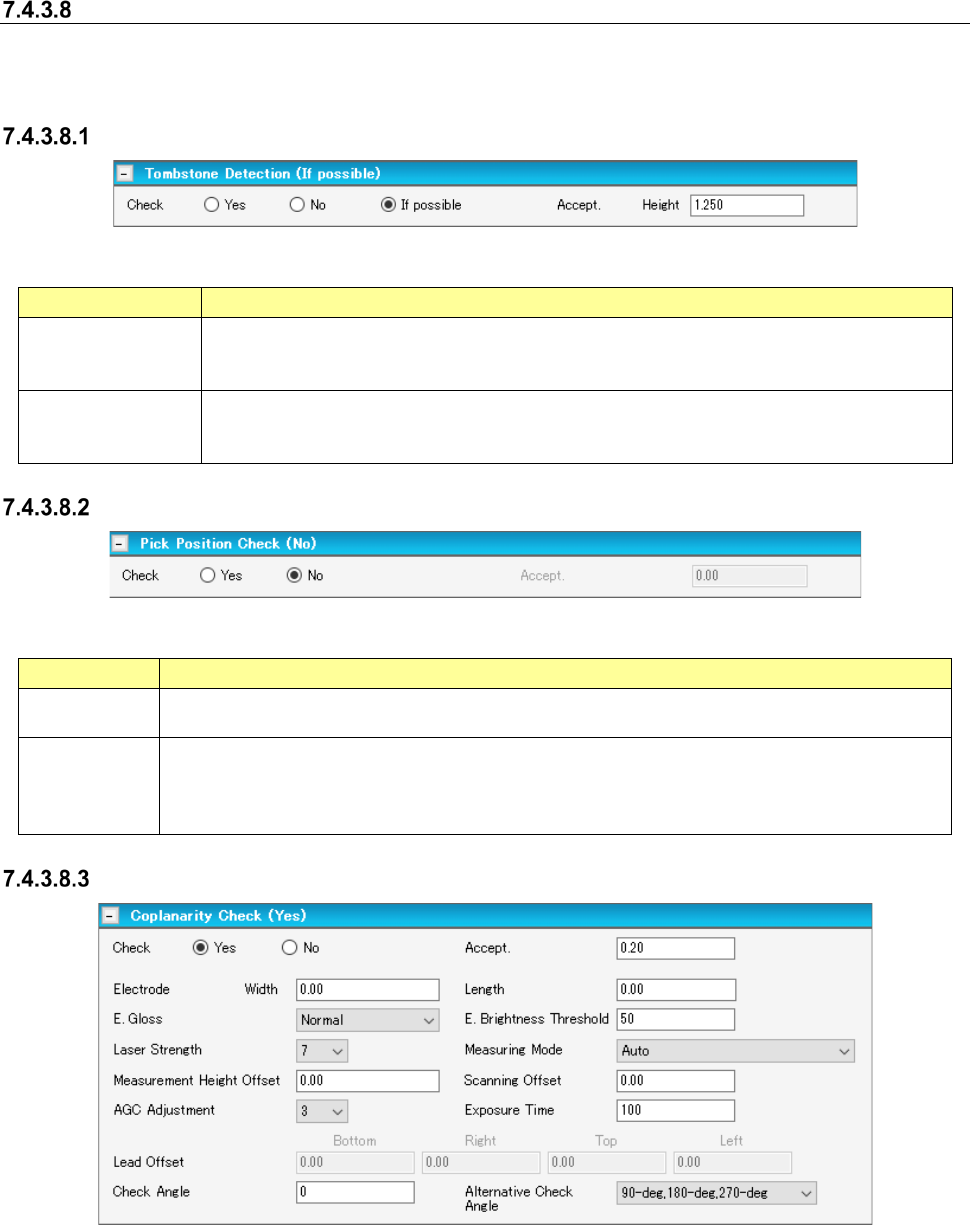

Component check detailed information setting screen
When you select “Component Data” from the tree view, and then “Check,” the following screen
appears.
Tombstone Detection
Figure 7.4-76 “Tombstone Detection” screen
Table 7.4-41 Check items displayed on the “Tombstone Detection” screen
Item
Description
Check
Yes/No/If possible
Specify whether to run a tombstone error check or not by selecting the corresponding radio
button.
The “If possible” radio button is selected by default.
Accept.
Height
You can enter a value in this field when you select the “If possible” radio button of the
“Check” menu item. Enter the height as the judgment value.
The input range varies depending on the component type.
Pick Position Check
Figure 7.4-77 “Pick Position Check” screen
Table 7.4-42 Check items displayed on the “Pick Position Check” screen
Item Description
Check
Yes/No/
Specify whether to run a pick position check or not by selecting the corresponding radio button.
The “No” radio button is selected by default.
Pick Position
Check
Accept.
You can enter a value in this field when you select the “Yes” radio button of the “Check” menu
item. Enter the height as the judgment value.
The default value and the input range respectively vary depending on the component size and the
component supply angle.
Coplanarity Check
Figure 7.4-78 “Coplanarity Check” screen
