JaNets Instruction Manual 7. Program Editor
7-158
Feeder option
This option allows you to specify the feeder option when restricting the number of a feeder used
for every optimization.
When you select the “Feeder” option in the option selecting area, the following screen appears in
the option setting area.
You cannot specify a user default for this item.
The item of a feeder is enabled only when the electric (EF) bank is equipped with the production
line. You cannot select the item of a "Feeder" when not equipped.
If the electric (RF/EF) bank on the line has been fitted, to display the configuration control of the
RF feeder, but it does not do the view if they have not been fitted.
In the EPU mode, the data may be changed automatically according to the upper limit value
available in the target machine.

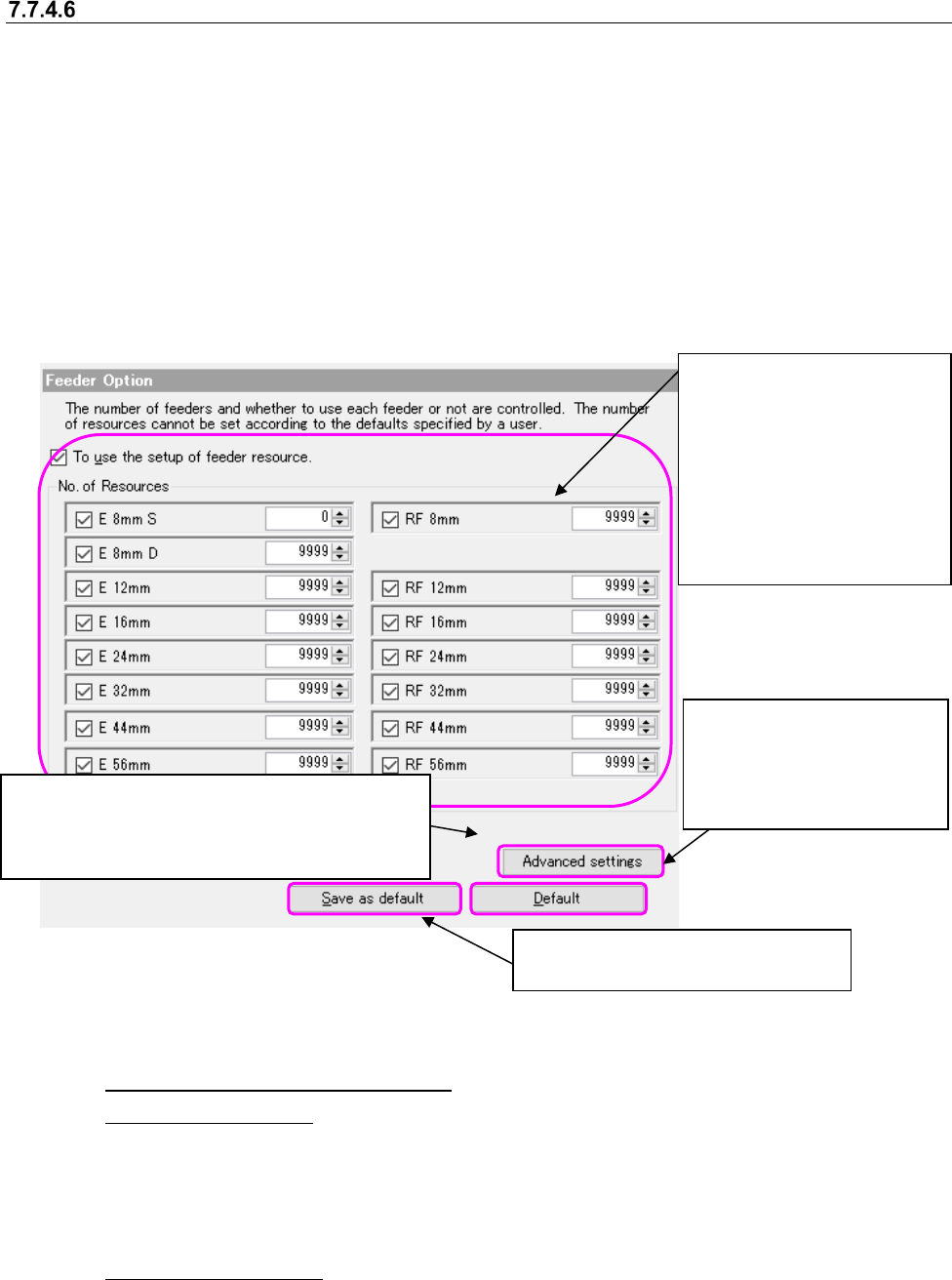

Figure 7.7-12 Feeder option
(1) To use the setup of feeder resource
◆Use in the line mode
Select whether to use this option. When using it, use the number of resources in the group
box under a checkbox. When not using it, use the value set on the “Equipment Setup” screen
of the Shopfloor Setup application. The "Not used" is a default in the setup of a feeder re-
source.
◆Use in the EPU mode
This option is enabled at all time and an option cannot be selected. Regarding the displayed
feeder, the equipment setting values set in the shop floor setup are ignored.
The setting of the number of resources
is not saved as the default value.
This is displayed only when the production line is
equipped with an electrical bank (RF).
You can set the use conditions of the attachment
and an “E 8mm D” feeder.
This setting is to be applied to
the feeder options other than
the number of resources.
(This is applied to the ad-
vanced settings also.
)
When you put a checkmark in
the check box “Use of the
feeder resource settings,” the
settings of the “Number of re-
sources” group are enabled.
When you uncheck the check
box for each feeder, the cor-
responding feeder is not used
as long as it is not a permanent
feeder.
JaNets Instruction Manual 7. Program Editor
7-159
(2) No. of Resources
The number of resources is an enabled option when you use the setup of a feeder resource.
The input possible range is as follows, respectively.
Table 7.7-4 Input range of resources
Mode
Minimum
Maximum
Line mode The number of feeders that is used
as a permanent feeder within a
production floor of the Shopfloor
Setup application
A value set on the “Equipment
Setup” screen of the Shopfloor
Setup application
EPU mode
0
9999
The number of resource
◆Use in the line mode
The number of resources expresses the number of the feeders which can be used within a pro-
duction floor.
Among them, a permanent feeder is treated as a used feeder because it is actually assigned. For
this reason, the number of feeder which can be newly assigned becomes less than the number of
resources that is input when a permanent feeder is used.
In addition, when a permanent feeder is used within a production program, it is already regarded
as being used as a permanent feeder, and does not go into the frame of the feeder which can be
newly assigned.
An example is below shown about the relation between the value input in the item of the number of
resources and the number of resources which can actually be used.
Table 7.7-5 The relation among the number of resources to specify,
a permanent feeder and the feeder which can be newly assigned
Equipment
No. of resources
Permanent feeder
Feeder which can be newly assigned
E 8mm S
100
80
20
E 8mm D
80
20
60
In the case of the above table, the number of feeder which can be newly assigned is 20 sets of E
8mm S and 60 sets of E 8mm D respectively if you consider a used number of a permanent feeder
even when setting 100 sets of E 8mm S and 80 sets of E 8mm D respectively when specifying the
number of resource.
◆
Use in the EPU mode
The number of available feeders is indicated. The number of other regular lines is not taken into
consideration.
JaNets Instruction Manual 7. Program Editor
7-160
Attachment
You can specify the use conditions of an attachment of an electrical bank (RF/EF) to execute the
optimization function.
You can select each production line (with the “Line” radio button) or each machine (with the “Indi-
vidual machine” radio button) to specify the use condition. When you select the “Individual ma-
chine” radio button, you can specify the use condition for each bank also.
Figure 7.7-13 Attachment” option
7.7.4.6.2 E 8mm D
This tab allows you to specify the use conditions of an “E 8mm D” feeder on the electrical bank
(RF/EF) to be applied when you perform the optimization function.
You can select the “Line” radio button or the “Individual machine” radio button. When you select
the “Individual machine” radio button, you can specify the use condition for each bank.
Figure 7.7-14 E 8mm D option
If you put a checkmark here, you can specify the use
condition of the “E 8mm D” feeder. Otherwise, the system
functions without using any “E 8mm D” tape feeder.
You can select one of the following two settings
as the use condition.
Not used: Any “E 8mm D” feeder cannot be
assigned to the electrical bank (RF/EF).
Used: An “E 8mm D” feeder can be assigned to
the electrical bank (RF/EF). Since the system
checks this setting and the setting of the at-
tachment option at the same time, you cannot
assign any “E 8mm D” feeder to the electrical
bank if the “Used” radio button is not selected
for the “Attachment” option.
You can select one of the following two settings as
the use condition.
Not used: Any electrical feeder cannot be as-
signed to the electrical bank (RF/EF).
Used: An electrical feeder can be assigned to the
electrical bank (RF/EF). When you want to assign
an “E 8mm D” feeder to the bank, you have to
make settings of the “E 8mm D” feeder.
Line: Select this radio button to specify the attachment use condition of the entire
production line.
Individual machine: Select this radio button to specify the attachment use condition
of the bank for each machine.
If you put a checkmark here, you can specify the
attachment use condition. Otherwise, the system
operates without using an attachment.
Line: Select this radio button to specify the “E 8mm D” feeder
use condition of the entire production line.
Individual machine: Select this radio button to specify the “E
8mm D” feeder use condition of the bank for each machine.
