Manually closing the “Optimizing” dialog box after the optimization
If you put a check mark in "After completion of optimization, the log screen is manually closed." on
the “Optimizing” dialog box and run the optimization, the system keeps displaying the "Optimizing"
dialog box after completing the optimization.
Click the <End> button to close the dialog box. It goes back to the Program Editor screen.
Figure 7.7-28 Dialog box after the optimization on Program Editor
The option setting of "After completion of optimization, the log screen is manually closed." is saved
without relation to the functions of "Save as default" and "Default."
JaNets Instruction Manual 7. Program Editor
7-174
Skipping in optimization is performed automatically
When “Skip” in optimization is performed automatically.” is not checked, the “Stop button” may be
changed to “Skip button” during optimization.
This is displayed when the optimization time is anticipated to be very long.
When the Skip button is not clicked, retrieval is continued until an answer can be found out. This
retrieval may take a lot of time. If Skip is authorized by clicking “Skip”, the later retrieval of an
answer will be cancelled at a fixed number.

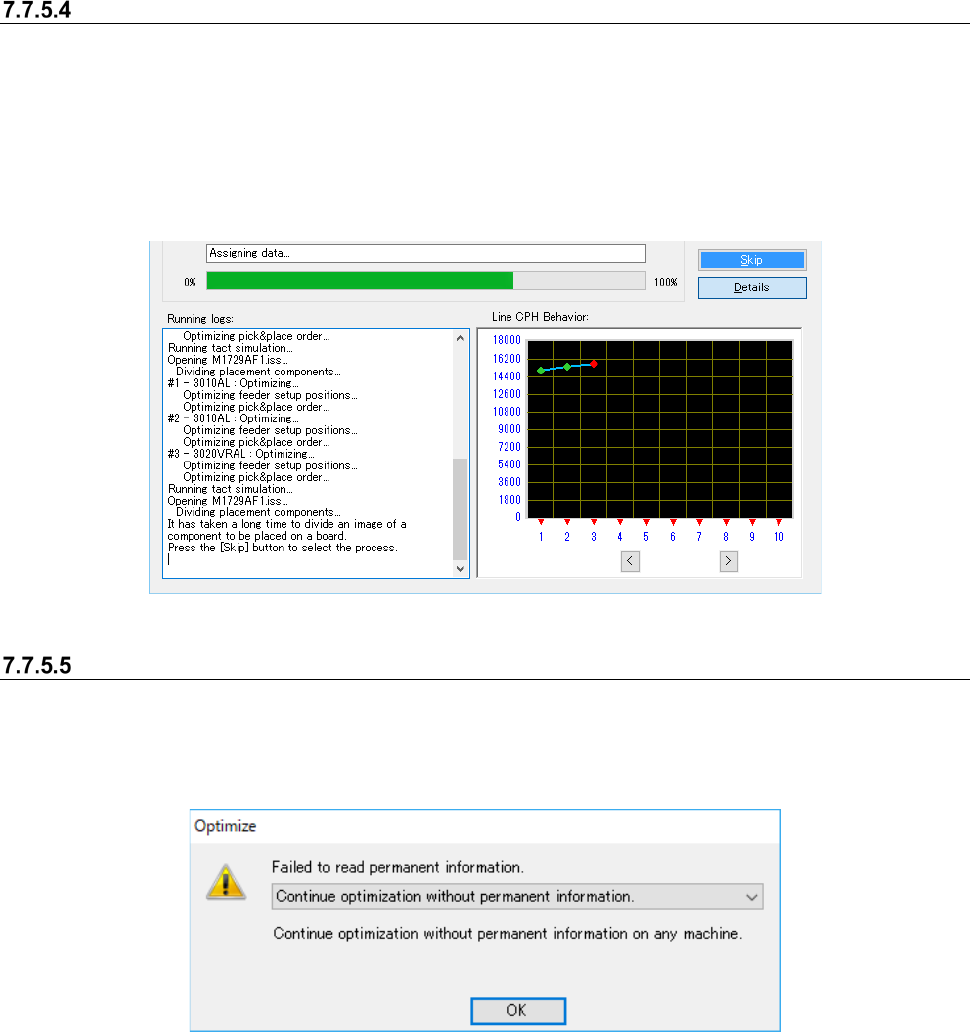

Figure 7.7-29 Skipping state during optimization
If the system fails to load the permanent information
If the system fails to load the permanent information during optimization that uses a permanent
feeder, the following error appears on the screen. You can select one of two options: whether to
continue the current optimization without using any permanent information or cancel the current
optimization.
Figure 7.7-30 If the system fails to load the permanent information
The possible causes of this failure are described below:
- Component data of a permanent feeder does not match that of the Component database (*1).
*1 If any of the component type (such as “Chip” and “SOT)), the packaging style (such as “Tape ”
and “Stick”) and the feeder type (such as “8 mm paper” and “8 mm emboss”) of a permanent
feeder does not match that of the Component database, the system decides that Component
data of a permanent feeder is not consistent with that of the Component database, and then
stops loading the permanent information. Note that if any of the component type, the pack-
aging style, the feeder type and the feeding pitch of a production program does not match that
of the Component database even though the information described above of the permanent
feeder matches that of the Component database, the optimization fails.
JaNets Instruction Manual 7. Program Editor
7-175
Optimize previous results
In the program editor, when you select the "Optimize previous results" and select "Auto assign all
data" for the pick distribution option of pick data and optimize with feedback and there are speci-
fied pick data of the pick position, optimized specified pick position at the first and measure the tact
time, then optimize with " Auto assign all data ".
In this way, you can leave the result of manually adjusting the pick position and the better result of
optimizing with "Auto assign all data".
However, when you change the layer, or if it can not be optimized at the specified position by
changing the unit such as VCS, an error will occur, please uncheck and optimize.
When you set the feedback count to 0, it will not be optimized if you select "Optimize previous
results".
The selection is saved in the computer, not the production program.
Multi Algorithm Optimization
When you check off the check box “Multi Algorithm Optimization” and then the check box “Execute
tact simulation and feedback division” with the Program Editor to perform optimization, the system
performs optimization according to another algorithm in addition to normal optimization.
By optimizing with multiple algorithms, you can expect better results than normal optimization.
However, the execution time will be about twice as much as normal optimization.
When you specify “0” for the menu item “Max. Loop Count” and check off the check box “Order
placements from smalls to largest nozzle size,” the system does not perform “Multi Algorithm Op-
timization.”
The checking state of each check box is saved not in a production program but in the PC.
