JaNets Instruction Manual 8. Job Optimizer
8-2
Menu Structure

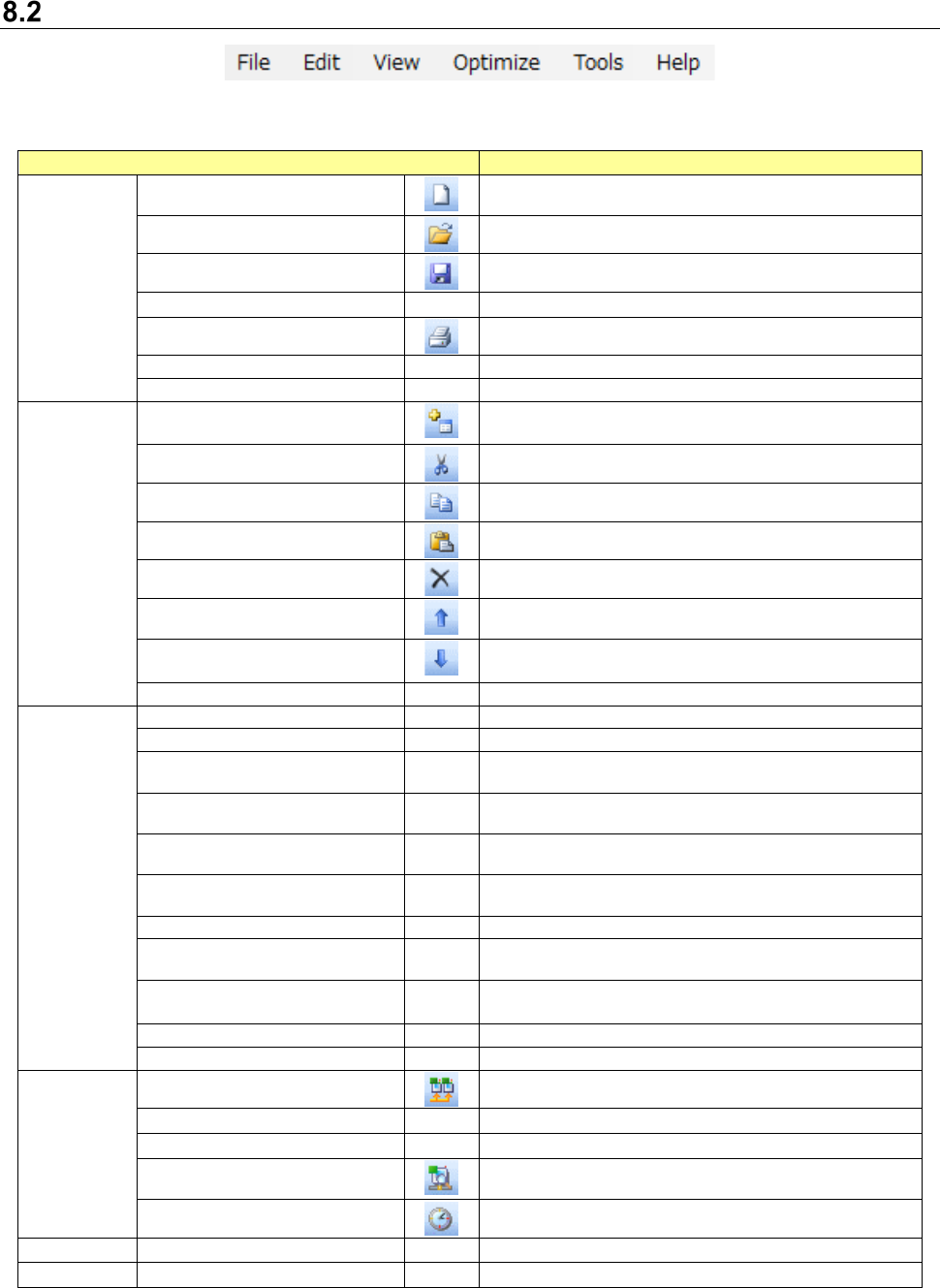

Table 8.2-1 Menu items
Menu item
Description
File (F)
New (N) Ctrl + N
Creates a new Reservation list “production program
reservation area.”
Open (O) Ctrl + O
Displays the “Open” dialog box.
Save (S) Ctrl + S
Overwrites a reservation file, and then saves it.
Save as (A)
Displays the “Save as” dialog box.
Print (P) Ctrl + P
Displays the “Print” dialog box.
Save as Text (T)
Displays the “Save as Text” dialog box.
Exit Job Optimizer (X)
Quits the Job Optimizer.
Edit (E)
Add Reservation (R)
Ctrl + R
Adds a production program on the last line of the
Reservation list.
Cut (T) Ctrl + X
Cuts the selected data and copies it onto the clipboard.
Copy (C) Ctrl + C
Copies the selected data onto the clipboard.
Paste (P) Ctrl + V
Pastes the data stored on the clipboard.
Delete (D) Del
Deletes the selected line from the Reservation list.
Up (U) Ctrl + Up
Moves the selected line of the Reservation list upward
by one line.
Down (N) Ctrl +
Down
Moves the selected line of the Reservation list
downward by one line.
Select All (L) Ctrl + A
Selects all lines.
View (V)
Feeder Layout (F)
Displays the “Feeder Layout” dialog box.
Nozzle Layout (N)
Displays the “Nozzle Layout” dialog box.
No. of Components (O)
Displays the number of components on the “Detailed
data display area.”
Component Histogram (H)
Displays the component histogram on the “Detailed
data display area.”
Divided Placement Data (P)
Displays the divided placement data on the “Detailed
data display area.”
Feeder Setup Information (I)
Displays the feeder setup information on the “Detailed
data display area.”
Status (S)
Displays the status on the “Detailed data display area.”
Data Coherence Check
Results (R)
Displays the list of the coherence check errors on the
“Detailed data display area.”
Line Explorer (E)
/
Program Explorer (E)
Displays/hides the Line Explorer.
Displays/hides the Program Explorer.
Toolbar (T)
Displays or hides the toolbar.
Status Bar (B)
Displays or hides the status bar.
Optimize
(O)
Optimize (O)
Displays the “Optimize” dialog box.
Change Line (L)
Displays the “Change Line” dialog box.
Number of Feeders (U)
Displays the “Number of Feeders” dialog box.
Data Coherence Check (D)
Performs a coherence check between the reserved
production program and the line.
Time Estimate (E)
Displays the “Time Estimate” dialog box.
Tool (T)
Set Environments (E)
Displays the “Set Environments” dialog box.
Help (H)
About (A)
Displays the version information.
JaNets Instruction Manual 8. Job Optimizer
8-3
Toolbar

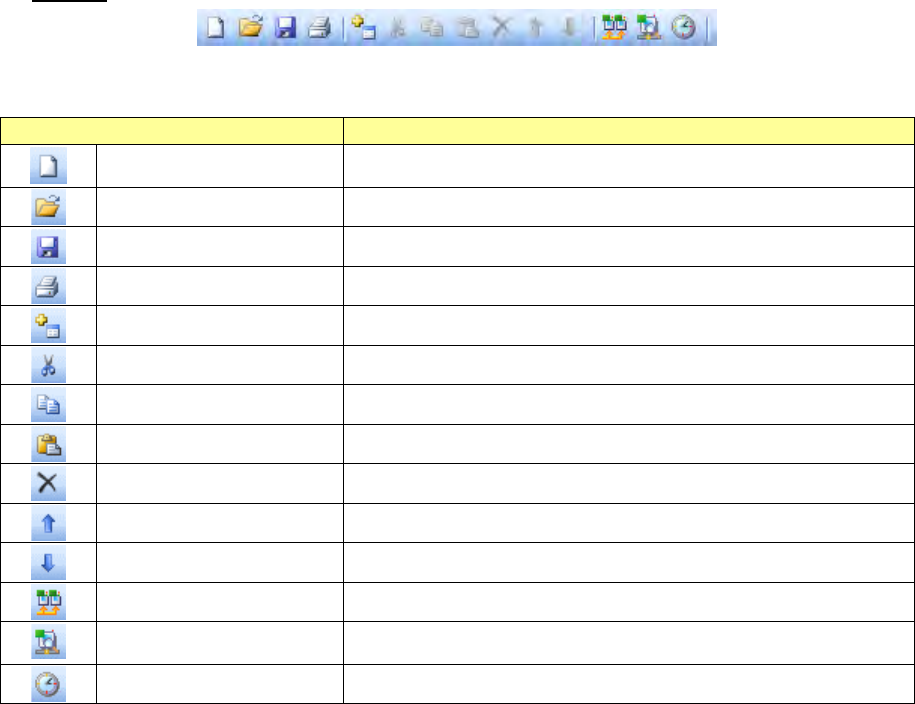

Table8.2-2 Toolbar items
Toolbar item
Description
New Ctrl + N
Creates a new Reservation list “production program reservation
area.”
Open Ctrl + O
Displays the “Open” dialog box.
Save Ctrl + S
Overwrites a reservation file, and then saves it.
Print (P) Ctrl + P
Displays the “Print” dialog box.
Add Reservation Ctrl + R
Adds a production program on the last line of the Reservation list.
Cut Ctrl + X
Deletes the selected data and copies it onto the clipboard.
Copy Ctrl + C
Copies the selected data onto the clipboard.
Paste Ctrl + V
Pastes the data stored on the clipboard.
Delete Del
Deletes the selected line from the Reservation list.
Up Ctrl + Up
Moves the selected line of the Reservation list upward by one line.
Down Ctrl + Down
Moves the selected line of the Reservation list downward by one line.
Optimize
Displays the “Optimize” dialog box.
Data Coherence Check
Performs the coherence check between the reserved production
program and the line.
Time Estimate
Displays the “Time Estimate” dialog box.
JaNets Instruction Manual 8. Job Optimizer
8-4
How to Operate the Job Optimizer
Explanation of the main screen

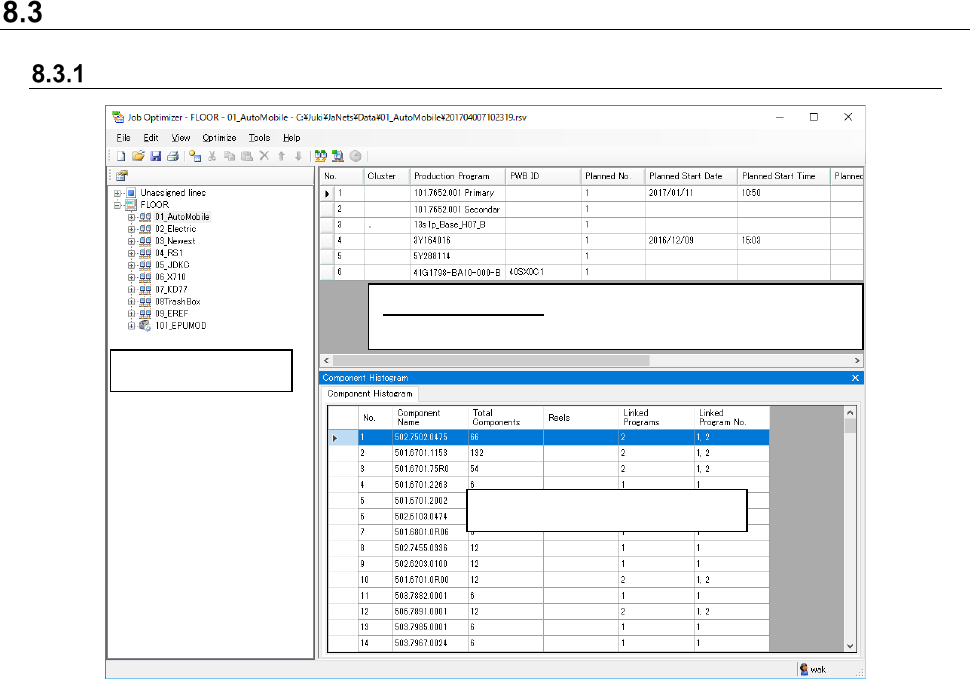

Figure 8.3-1 Main screen
Line explorer
Reservation list: up to 100 production programs
can be reserved.
Detailed data display area
