JaNets Instruction Manual 10. Feeder Set Database
10-6
Data Creation Wizard 3 (for adding feeder set data) 10.3.4
Add feeder set data to a feeder group on this screen.

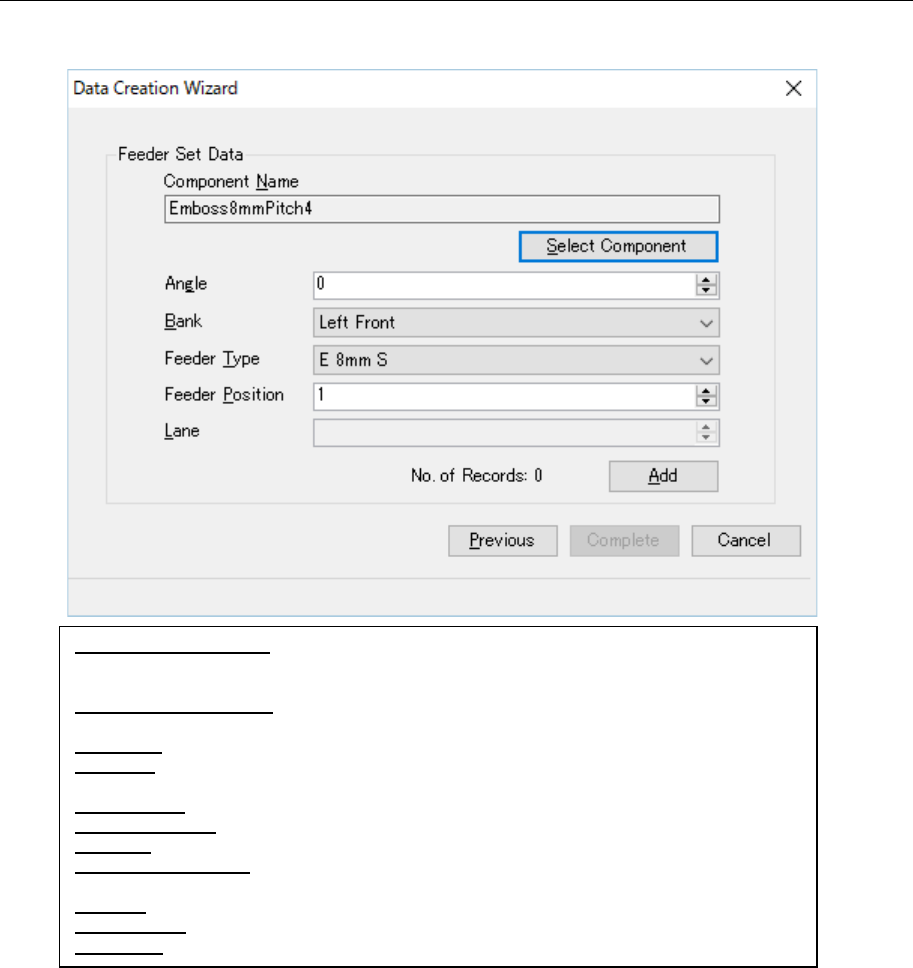

Figure 10.3-3 “Data Creation Wizard” 3 (for adding feeder set data)
*1 No data is registered in the database unless you select the <Complete> button.
*2 When you change the machine type or the bank type on the “Data Creation Wizard” 2 (for
setting a bank) screen, the added feeder set data is cleared.
Component Name (N): A component name to be set in feeder set data is displayed here.
The component name selected on the screen for selecting a component is displayed
here, and you cannot edit it directly.
Select Component (S): Displays the screen shown in Figure 10.3.4.1 “Screen for selecting
a component.”
Angle (G): Enter a component pick-up angle.
Bank (B): Select the component supply position from the bank information set to the feeder
group that is to be created.
Feeder Type: Select a feeder type that can be set to the feeder position.
Feeder Position: Enter the pick position number to set the feeder.
Lane (L): Enter the lane number of the component pick-up position.
No. of data records: The number of feeder set data records added to the feeder group is
displayed here.
Add (A): Adds the feeder set data you have set to the feeder group. (*1)
Previous (P): Goes back to the “Data Creation Wizard” 2 (for setting a bank) screen. (*2)
Complete: Registers the feeder group, and closes this screen.
JaNets Instruction Manual 10. Feeder Set Database
10-7
10.3.4.1 Screen for selecting a component
The list of components registered in the component database is displayed on the screen for
selecting a component.

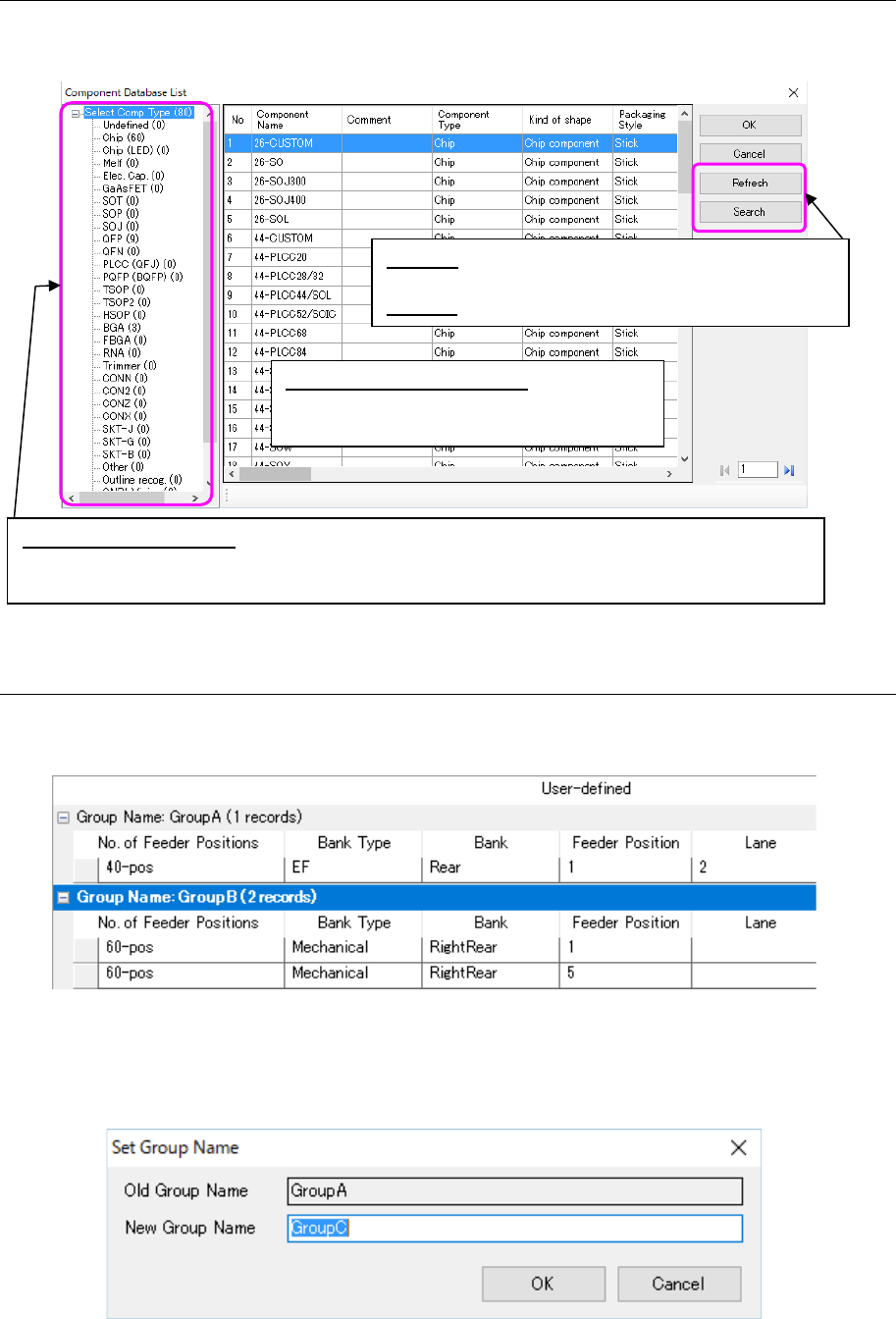

Figure 10.3-4 Screen for selecting a component
Changing a name of a feeder group 10.3.5
You can change a name of a controlled feeder group. First, select a group whose name you
want to change from the “User-defined” feeder list.
Figure 10.3-5 Selecting a feeder group
When you select the [Edit] command from the menu bar, and then the [Rename Group] com-
mand from the “Edit” menu, the “Set Group Name” screen appears, and you can change a
group name.
Figure 10.3-6 “Set Group Name” screen
Component data list screen: Displays the list
of the component data whose type is se-
lected from the tree on the left side.
“Select Comp Type” tree: Displays all component types. When you select “Select Comp Type,” all
component types are displayed in the form of a list. When you select each component type,
Component data of the selected type is displayed on the list on the left side.
Refresh:
Obtains information on all components from the
database again to update the displayed data.
Search: Displays the screen for searching a component.
JaNets Instruction Manual 10. Feeder Set Database
10-8
Changing the bank type of a feeder group 10.3.6
You can change the bank type of a registered feeder group.
Select a feeder group to be changed from the “User-defined” list.
Figure 10.3-7 Selecting a feeder group
Click the [Edit] command from the menu bar, and then the [Change] to display the screen,
“Data Change Wizard” 1 (for setting a bank).
10.3.6.1 Data Change Wizard 1 (for setting a bank)
Change the bank type on this screen.
Figure 10.3-8 “Data Change Wizard” 1 (for setting a bank)
*1 The machine type cannot be changed on this screen, which is opened by the “Change”
command.
*2 For the machine that can work with both of the bank type, you can change it by selecting a
method from the combo box. If there is no choice, the “Bank Type” cell is displayed in gray.
If “Feeder Set Data” has already been assigned to the feeder bank when you change
“Bank Type”, the added “Feeder Set Data” is cleared after displaying a confirmation mes-
sage.
Select Model: Machine type that is set in the feeder group is displayed here. (*1)
Feeder Bank: Bank information that are set in the feeder group is displayed here.
The menu items “Station,” “Bank,” “No. of Feeder Positions” and “Bank Type” are
displayed. (*2)
Next: Validates your settings and goes to the “Data Change Wizard” 2 (for adding
feeder set data) screen.
