JaNets Instruction Manual 13. Program Downloader

13-20

13.9.5 Forced termination of production

The “Termination Production” command terminates PWB production of the active production line

even though the number of produced PWBs does not reach the planned number of PWBs to be

produced set in a downloaded production program. Note that this operation is available only if all

machines of the production line are put in the “production waiting state.”

Select the “Production” command from the menu bar, and then the “Termination Production”

command from the “Production” menu (or click the “ ” tool button of the toolbar), the following

dialog box appears on the screen.

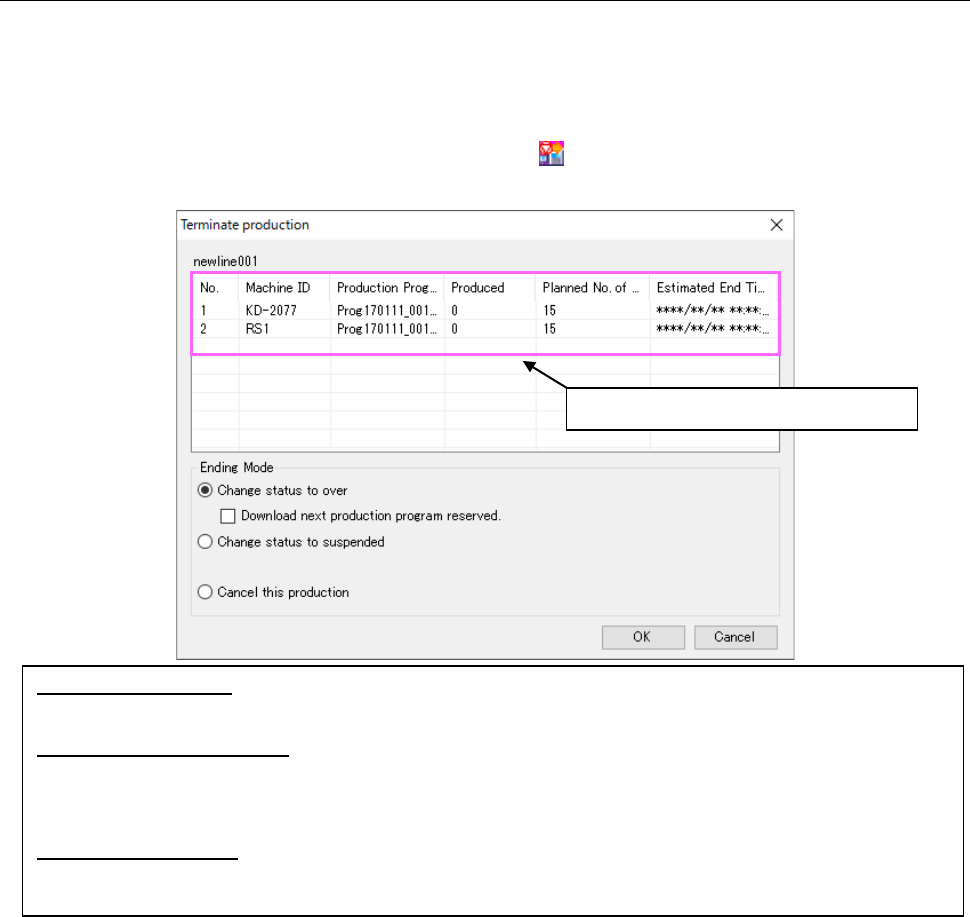

Figure 13.9-6 “Terminate production” dialog box

In “Production status”, the items other than “Status” in “13.5.3.3 Machine production status” of the

machine production status are displayed. The contents of the settings in “13.15.2 Production

status of machine” of the display item setting are not incorporated.

* When you select the radio button either “Change status to over” or “Change status to

suspended,” the system uploads a production program from each machine of the production

line.

* When the production program that was uploaded in the status of “Terminate in the status on the

way of production” is downloaded again, this production program will not be downloaded into

RX-7 series. The download processing checks whether RX-7 series can continue online

production. Therefore, to produce PWBs on the way of production in succession, do not cancel

the production program on the RX-7 series side or do not set another production program.

Otherwise, production cannot be continued.

* If all machines of a production line do not produce PWBs according to the same production

program when production is set to be performed according to a production program, the check

box “Download next production program reserved.” is disabled. When all machines of a

production line do not produce PWBs according to the same reservation file when production is

Change status to over:

Terminates the PWB production by supposing that it is finished (the production result is saved too). * You cannot

select this radio button during PWB production.

Change status to suspended:

Terminates the PWB production by saving the result of production quit in the middle. When you download the

production program again, you can start the production from the state prior to uploading. You can also forcibly

change the status of the production to “Over”.

* You cannot select this radio button during PWB production.

Cancel this production:

Restores the PWB production condition to the state prior to uploading of the production program, and cancels the

production. Uploading operation is not supposed to be performed (the production result is not saved either).

“Production status” is displayed here.

JaNets Instruction Manual 13. Program Downloader

13-21

set to be performed according to a reservation file, the check box “Download next production

program reserved.” is disabled

13.9.6 Machine individual download/upload

Specify a machine of the active production line to download or upload each production program

downloaded to the machine. When you select the “Production” command from the menu bar, and

then the “Individual Machine” command from the “Production” menu, the following dialog box

appears on the screen.

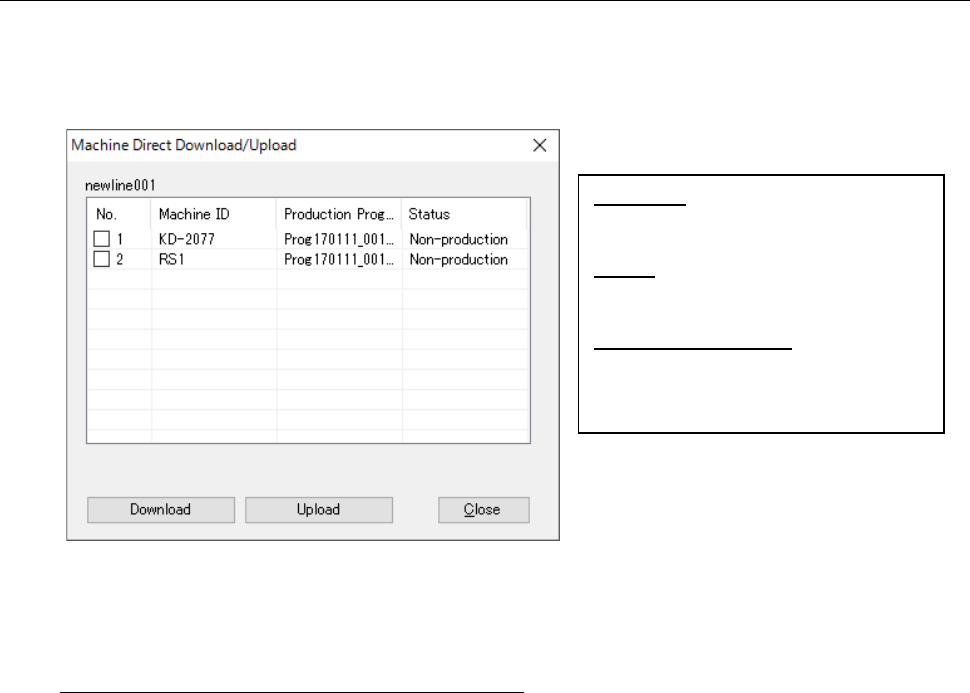

Figure 13.9-7 “Machine Direct Download/Upload” dialog box

* Individual download cannot be performed to an RX-7 series.

Force-termination function for individual uploading

To force the machine that has not produced the planned number of PWBs by itself to switch a

production program with another one, put a checkmark in the “Change status to over” check box,

and then click the <Upload> button. If a production program is already uploaded or if all lines have

finished using the production program, the system executes the combination process for the

production programs. If the successive machine does not finish using the production program, the

system waits for the successive machine to finish using the production program, and then

combines the production programs. When the system finishes combining the production programs,

it disables the <Download> button and <Upload> button, and then closes the dialog box shown

above. Next, the system downloads the next production program to the selected machine. (If the

machine finishes using the last production program, the system terminates PWB production.)

* The “Change status to over” check box is displayed only when the “Machine” radio button is

selected as the “Loading Mode.” It is not displayed when the “Line” radio button is selected.

* To update the production status of a reservation file when the system closes the dialog box, the

system disables these two buttons, <Download> button and <Upload> button when it finishes

executing the process for terminating production of an individual machine forcibly.

Download:

Downloads a production program to the

selected machine.

Upload:

Uploads a production program from the

selected machine.

Change status to over

：

Uploads a production program to the

selected machine, and then puts the

machine in a production completed state.

JaNets Instruction Manual 13. Program Downloader

13-22

13.9.7 Changing the planned number of PWBs to be produced (from the menu)

Form the menu, it is possible to change the planned number of PWBs by selecting “File” –

“Change of planned number of PWBs” only when production is performed by selecting production

program.

You cannot execute this process for the production line that is producing PWBs.

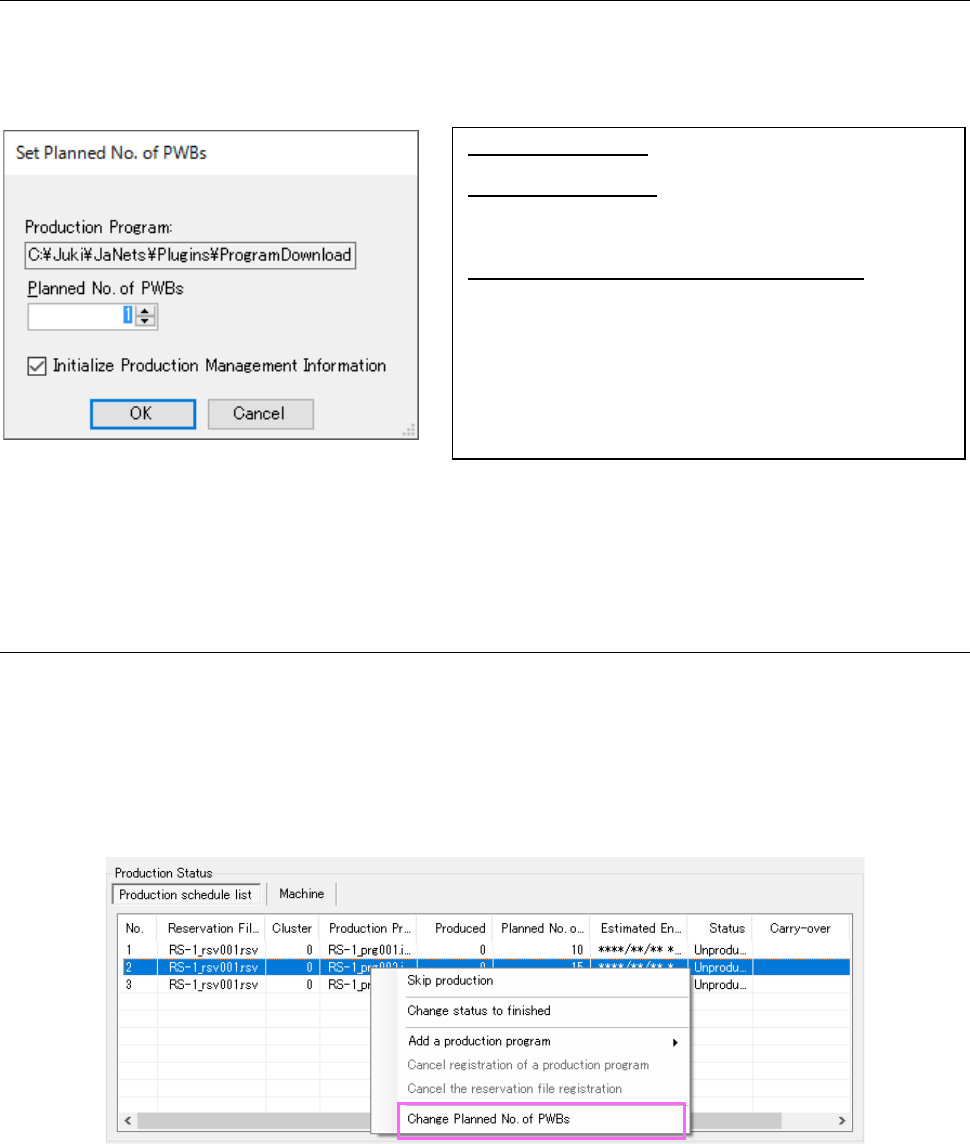

Figure 13.9-8 “Set Planned No. of PWBs” dialog box

* The planned number of PWBs cannot be changed for the line in which an RX-7series exists.

13.9.8 Changing the planned number of PWBs to be produced (Production

schedule list)

Changing the planned number of PWBs to be produced (from the Production schedule list)

Select the menu command [Change Planned No. of PWBs] from the menu displayed when you

select a production program in the “Production schedule list” and then click the mouse right button.

* This function for changing the planned number of PWBs to be produced is supported with the

following machine models only: RS-1 series, RX-6 series, RX-7 series, KE-3000 series and

JM-100.

Figure 13.9-9 [Change Planned No. of PWBs] menu command

<Notes>

[1] When you select two or more production programs, the [Change Planned No. of PWBs] menu

command is disactivated, and you cannot select it.

[2] If any of the following headers are not displayed in the “Production schedule list”: “Production

program,” “Produced,” “Planned no. of” and “Status,” the [Change Planned No. of PWBs]

menu command is disactivated, and you cannot select it.

Production Program:

Name of a production program to be downloaded.

Planned No. of PWBs:

Enter the number of PWBs you want to produce. You

cannot set any value smaller than the current number of

PWBs already produced.

Initialize Production Management Information:

When this check box is checked, the production status is

changed to “Unproduced” after you press the “OK” button.

When you do not check this check box, the production

status is changed to “Suspended” after you press the “OK”

button. However, when the number of PWBs already

produced is “0,” the production status becomes

“Unproduced” even though you press the “OK” button when

this check box is not checked.
