JaNets Instruction Manual 13. Program Downloader
13-47
13.10.2.6 Deleting a serial code
The <Delete a serial code> button deletes a serial code and information on its associated
production program from association information of the serial code and the production program.
Select data to be deleted from the list, and then click the <Delete a serial code> button. The
selected data is deleted from the list.
Figure 13.10-8 Deleting a serial code
13.10.2.7 Saving the association information
When you click the <Apply> button, the association information is saved.
13.10.2.8 Terminating association operation of a seral code and a production program
When you click the <OK> button or the <Cancel> button, the system terminates association
operation. When you click the <OK> button, the system saves the association information before
terminating the association operation. When you click the <Cancel> button, it does not save the
information.
JaNets Instruction Manual 13. Program Downloader
13-48
13.10.3 Associating a serial code with a production program
(Data Manager)
To associate a seral code with a production program that is saved to the Data Manager, you have
to select the “Data Manager” radio button for the menu item “Search” of the setting item
“Management of production program” on the “Set Environments” screen of the Program
Downloader (see Section 13.14.2.7).
<Note>
Even though you make the setting as described above, if the Data Manager connection license is
invalid or if the Data Manager is set to be unused with the JaNets launcher, the association screen
for a serial code and a production program saved locally appears.
See Section 17.3.9 “Associating a serial code with a production program” of Chapter 17 “Program
Explorer” for how to associate them.
13.10.4 Opening a production program associated with a serial code
Open the production program associated with the read serial code.
The target to be searched for is decided according to selection of the “Search” radio button of the
setting item “Management of production program” on the “Set Environments” screen of the
Program Downloader (see Section 13.14.2.7).
13.10.4.1 Calling the seral code reading screen

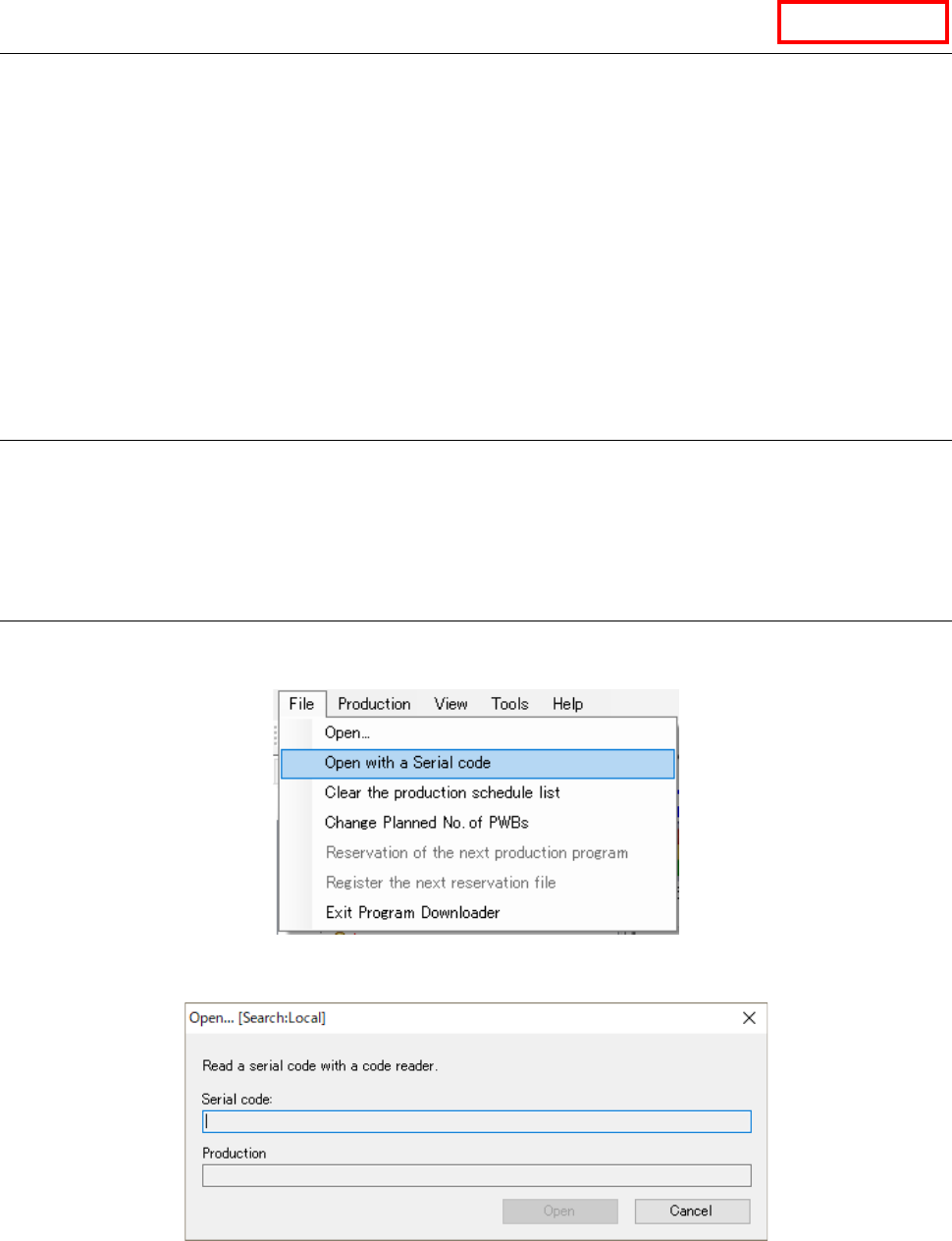

Select the menu commands: [File] – [Open with a Serial code] from the menu bar, the screen for
reading a serial code is displayed.
Figure 13.9-9 [Open with a Serial code] menu command
Figure 13.9-10 Screen for reading a serial code
The target association information to be searched for (Local/Data Manager) is displayed on the
title bar of the screen.
Data Manager
JaNets Instruction Manual 13. Program Downloader
13-49
13.10.4.2 Reading a serial code
Read with a code reader a serial code to be used for association with a production program. A
production program is associated with the read serial code, and when the system confirms that a
production program associated with the read serial code exists, its program name is displayed on
the screen and the <Open> button is activated.
Figure 13.10-11 Screen displayed after a serial code is read
13.10.4.3 Opening a production program
When you click the <Open> button, a production program is opened. If it is registered in the Data
Manager, it is checked out (if it is not yet), and then opened.
The process for opening a production program associated with a read serial code varies
depending on the condition of the active production line at start-up of the screen for reading a
serial code.
Table 13.10-1 Operation for opening a production program associated with a serial code
Condition of an active production line Process for opening a production program
A production program is not downloaded to
the machine.
The system opens a production program as a normal one.
(Same operation as that to be performed when you select [Open]
from the “File” menu displayed on the menu bar)
The requirements for reserving the next
production program are satisfied (see
Section13.8.8).
The system reserves a production program as the next production
program.
(Same operation as that to be performed when you select the menu
commands: [File] – [Reservation of the next production program]
from the menu bar)
