JaNets Instruction Manual 13. Program Downloader
13-49
13.10.4.2 Reading a serial code
Read with a code reader a serial code to be used for association with a production program. A
production program is associated with the read serial code, and when the system confirms that a
production program associated with the read serial code exists, its program name is displayed on
the screen and the <Open> button is activated.
Figure 13.10-11 Screen displayed after a serial code is read
13.10.4.3 Opening a production program
When you click the <Open> button, a production program is opened. If it is registered in the Data
Manager, it is checked out (if it is not yet), and then opened.
The process for opening a production program associated with a read serial code varies
depending on the condition of the active production line at start-up of the screen for reading a
serial code.
Table 13.10-1 Operation for opening a production program associated with a serial code
Condition of an active production line Process for opening a production program
A production program is not downloaded to
the machine.
The system opens a production program as a normal one.
(Same operation as that to be performed when you select [Open]
from the “File” menu displayed on the menu bar)
The requirements for reserving the next
production program are satisfied (see
Section13.8.8).
The system reserves a production program as the next production
program.
(Same operation as that to be performed when you select the menu
commands: [File] – [Reservation of the next production program]
from the menu bar)
JaNets Instruction Manual 13. Program Downloader
13-50
13.11 Number-of-components
Now, set the number of components to be used for the target mounter for downloading into the
production program.
* For RX-7 series, it is impossible to set any number-of-components data.
13.11.1 Number-of-components data

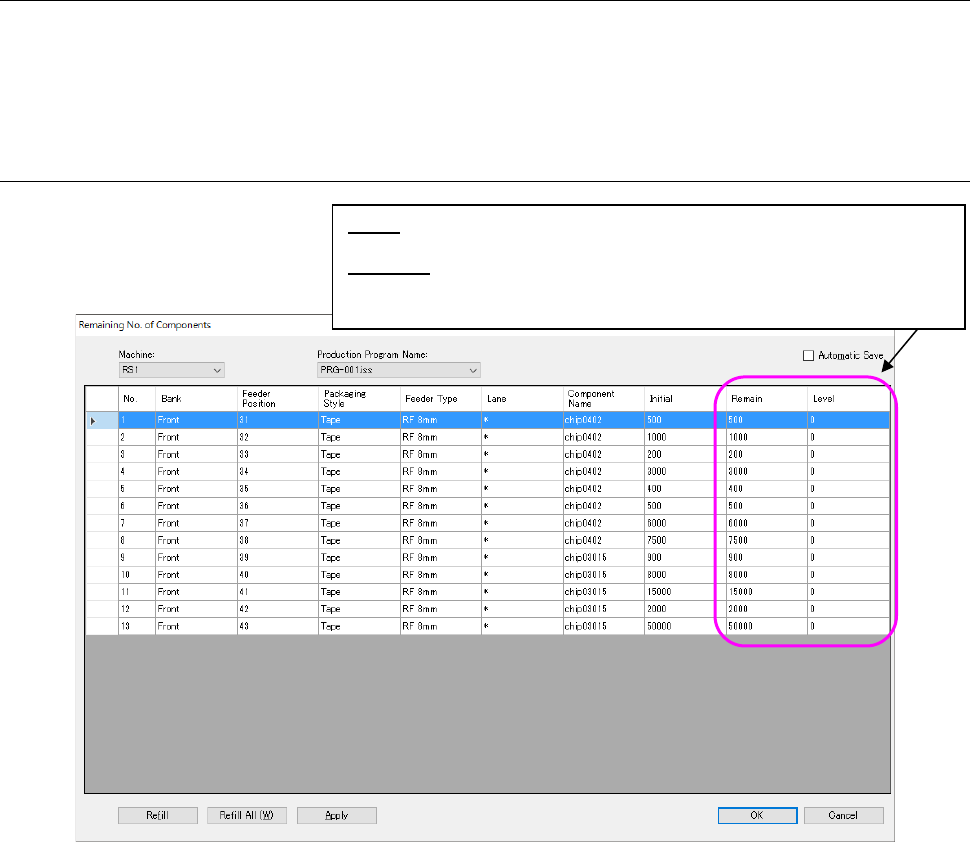

Figure 13.11-1 Number-of-components data
* Before downloading in a non-production status, the value set by job optimizer is displayed. In
the case of “on the way of production” or “after production”, the production result is displayed.
Level: Displays the residual number of components that will be used for the
reference for the issue of a warning.
Warning: Displays a component supply error.
* Displays that the residual number of components is less than the level.
If any case is not an error, this remains blank.
JaNets Instruction Manual 13. Program Downloader
13-51
13.11.2 Number-of-components setting
If downloading is not yet performed, it is possible to change only the initial value, residual number
and the level setting for each production program.
Figure 13.11-2 Selection of machine or production program

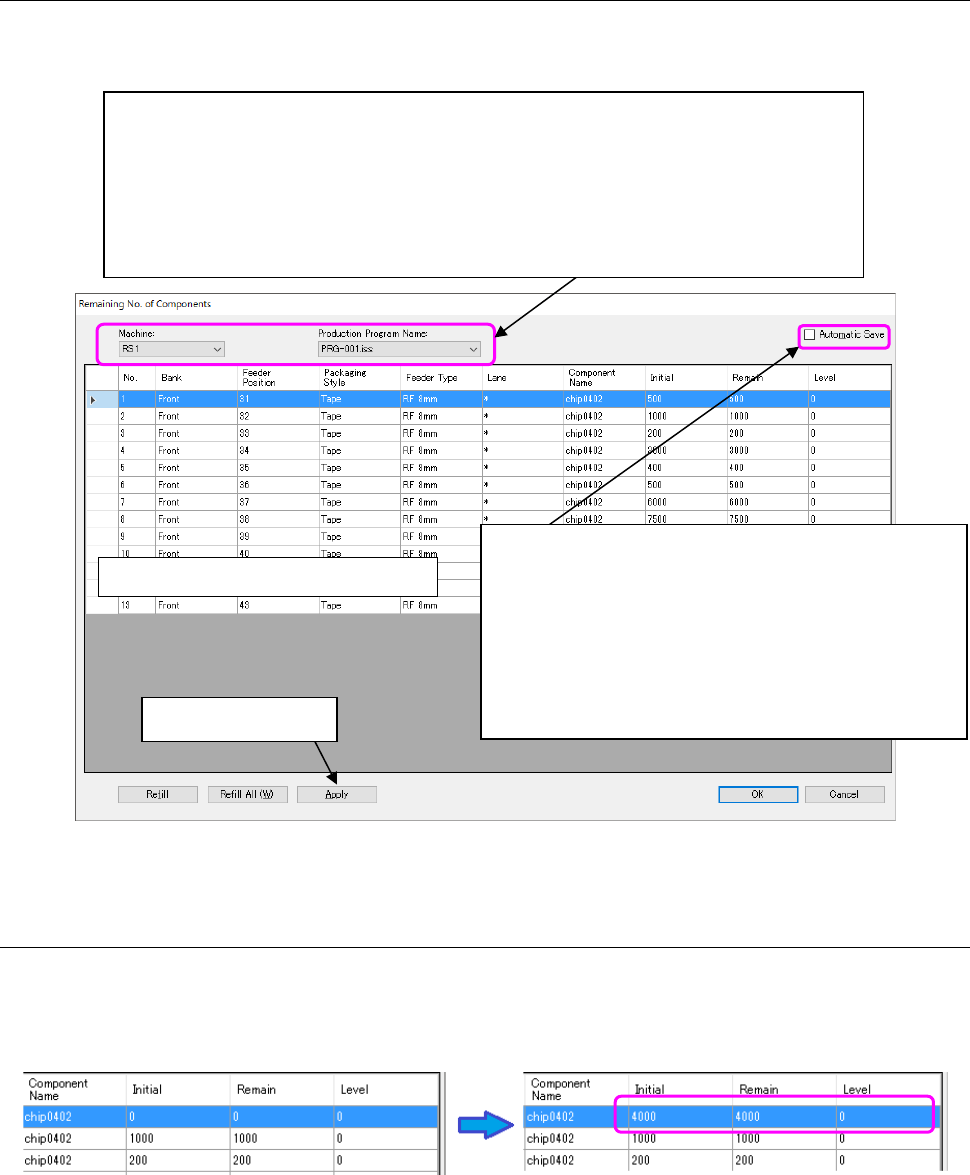

13.11.3 Change of the initial value/residual number/level
Enter a numeric value directly by clicking the “Initial value” cell. After the initial value is changed,
this initial value is incorporated into the residual number. Likewise, the “Residual number” and
“Level” cells can be changed.
Figure 13.11-3 Change of initial value
Area of number-of-components data
Select a machine displayed by the “Machine” combo box and select a production program
for setting the number of components in the table of reserved production programs that is
displayed by the “Production program” combo box.
After this selection, the data on the selected machine and production program is displayed
in the area of “Number-of-components” data.
Select each cell of the line of the component whose setting is to be changed, and then save
the contents by “Application” after entering each value.
Auto saving:
This function saves the number-of-components setting
automatically when the machine or production program is
changed over to another on the number-of-components
display screen. Unless this item is checked off, a dada
updating check message is displayed when the machine
or production program is changed over.
“Application” button
