JaNets Instruction Manual 13. Program Downloader
13-50
13.11 Number-of-components
Now, set the number of components to be used for the target mounter for downloading into the
production program.
* For RX-7 series, it is impossible to set any number-of-components data.
13.11.1 Number-of-components data
Figure 13.11-1 Number-of-components data
* Before downloading in a non-production status, the value set by job optimizer is displayed. In
the case of “on the way of production” or “after production”, the production result is displayed.
Level: Displays the residual number of components that will be used for the
reference for the issue of a warning.
Warning: Displays a component supply error.
* Displays that the residual number of components is less than the level.
If any case is not an error, this remains blank.
JaNets Instruction Manual 13. Program Downloader
13-51
13.11.2 Number-of-components setting
If downloading is not yet performed, it is possible to change only the initial value, residual number
and the level setting for each production program.
Figure 13.11-2 Selection of machine or production program
13.11.3 Change of the initial value/residual number/level
Enter a numeric value directly by clicking the “Initial value” cell. After the initial value is changed,
this initial value is incorporated into the residual number. Likewise, the “Residual number” and
“Level” cells can be changed.
Figure 13.11-3 Change of initial value
Area of number-of-components data
Select a machine displayed by the “Machine” combo box and select a production program
for setting the number of components in the table of reserved production programs that is
displayed by the “Production program” combo box.
After this selection, the data on the selected machine and production program is displayed
in the area of “Number-of-components” data.
Select each cell of the line of the component whose setting is to be changed, and then save
the contents by “Application” after entering each value.
Auto saving:
This function saves the number-of-components setting
automatically when the machine or production program is
changed over to another on the number-of-components
display screen. Unless this item is checked off, a dada
updating check message is displayed when the machine
or production program is changed over.
“Application” button
JaNets Instruction Manual 13. Program Downloader
13-52
13.11.4 Full-level replenishment
The residual number is equalized to the “Initial value.” Select lines of the component for setting
change (multiple lines are selectable). Then, the residual number of components selected by
“Full-level replenishment” are replenished by initial value. The level is not changed.

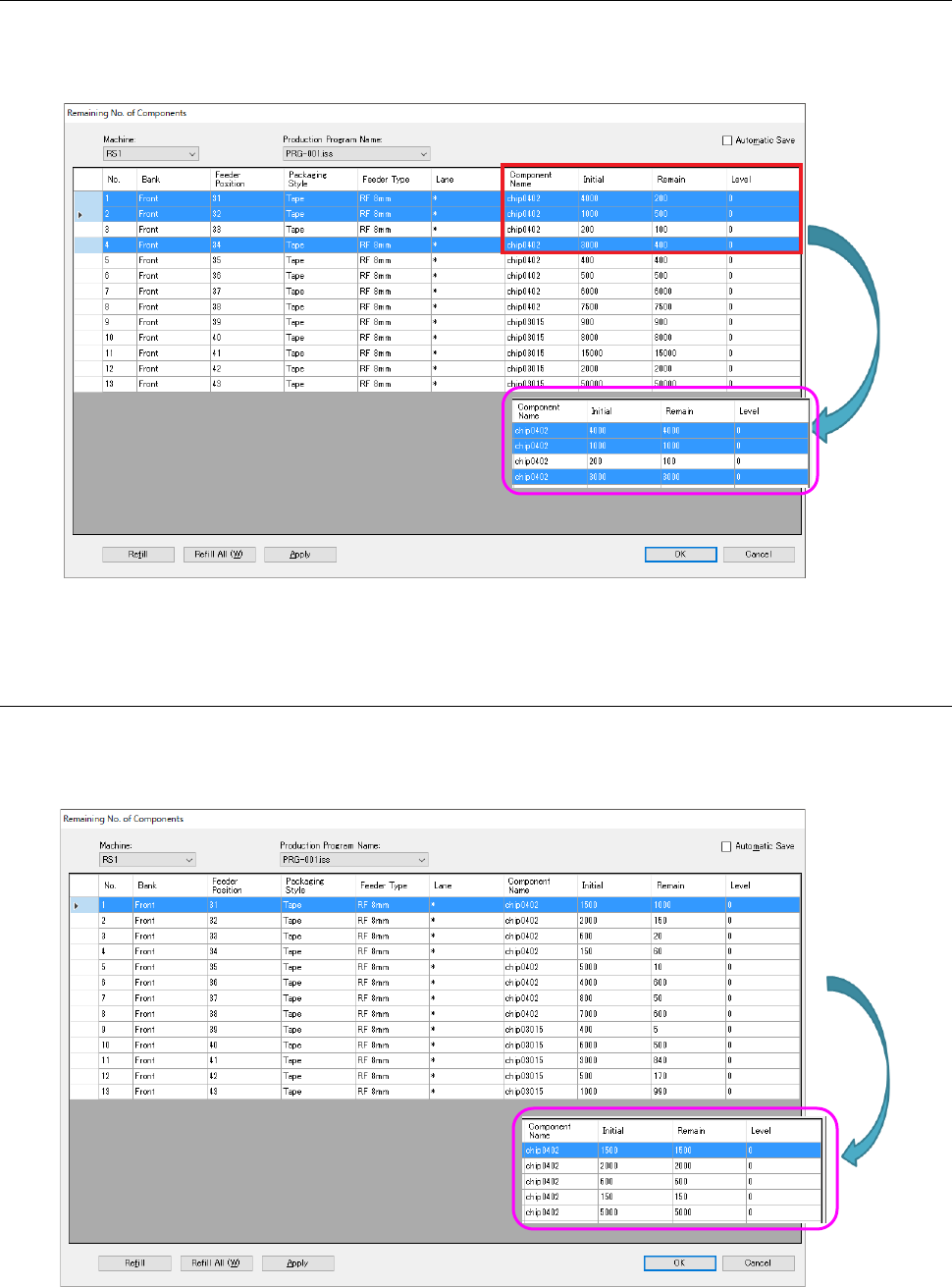

Figure 13.11-4 Full-level replenishment
13.11.5 All full-level replenishment
All the components are replenished up to the full level by “All full-level replenishment” button
without selecting any component.
Even if any component has been selected, all the components are replenished.
Figure 13.11-5 All full-level replenishment
