JaNets Instruction Manual 15. Log Control Tool
15-4
15.1.3.2 Menu displayed when you click the right button of a mouse on the Tree View
for applications
Figure 15.1-5 Menu displayed when you click the right button of a mouse
View New Log File:
Newly displays a
log of the selected
item in the Viewer.
Add Log File:
Additionally
displays a log of
the selected item in
the Viewer.
Log Setup: Displays
the “Log Setup”
dialog box for the
selected item.
Tree View:
Displays/hides the Tree
View for applications.
Information View:
Displays/hides the
detailed information
view of logs.
Refresh:
Reads a log file being
displayed in the Log
Viewer again to display
it again.
Erase current view:
Erases the log file
currently being
displayed on the
viewer.
JaNets Instruction Manual 15. Log Control Tool
15-5
15.1.3.3 Displaying/hiding the Tree View for applications
Every time you select the [View] command from the menu bar, and then the [Tree View]
command from the “View” menu, the check box is selected or deselected.
Figure 15.1-6 Displaying/hiding the Tree View
When not checked:
Hides the Tree View for applications.
When checked:
Displays the Tree View for applications.
JaNets Instruction Manual 15. Log Control Tool
15-6
15.1.4 Configuration of the Log Viewer
The Log Viewer consists of two screens: the log display area and the detailed information view
(Information View).
* When you select a log without the detailed information, the “Information” column becomes
blank.
<Checking whether there is any detailed information or not>
Figure 15.1-7 Displaying the detailed information
15.1.4.1 Menu displayed when you click the right button of a mouse on the Log Viewer
Figure 15.1-8 Menu displayed when you click the right button of
a mouse on the Log Viewer

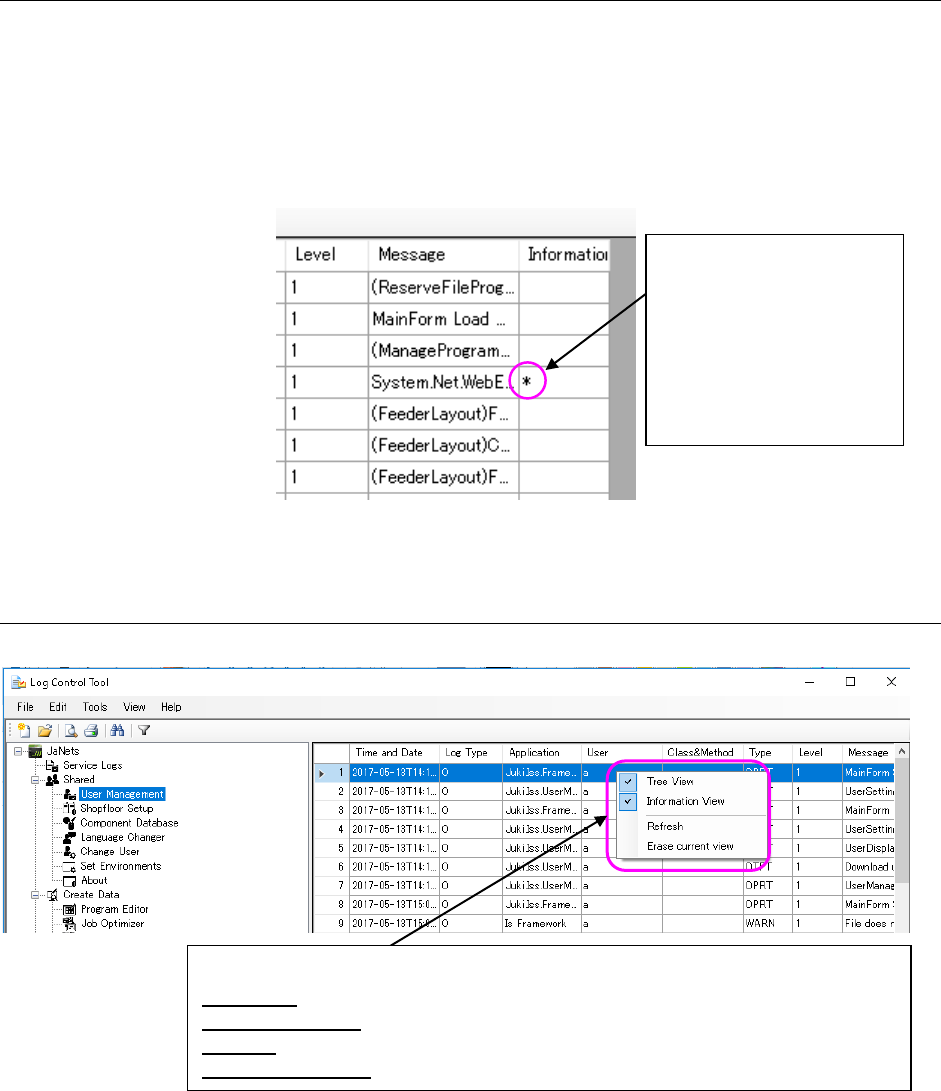

An asterisk mark (*) is
displayed in the
“Information” column of a
log having the detailed
information, so you can
check whether each log has
its detailed information or
not.
<Menu items displayed on the pop-up menu>
Tree View: Displays/hides the Tree View for applications.
Information View: Displays/hides the Information View of logs.
Refresh: Reads a log file being displayed in the Log Viewer again to display it again.
Erase current view: Erases the log file currently being displayed on the viewer.
