JaNets Instruction Manual 16 Component Database
16-13
Verify settings
General setting
These are items for the general setting of all currently recorded components.
Figure 16.3-6 IFS General Setting
Splicing settings
This item should be specified when the package style is tape. Note that this item is not applied to
a 32-mm adhesive paper tape.
Figure 16.3-7 Splicing settings
Bulk option
This item only makes settings for bulk components.
Figure 16.3-8 Bulk option
Ejected to Feeder: Enter the number of components
loaded in one bulk.
After the splicing operation, if the pickup error is counted by the same number of times as the
specified number here, the system informs the server that the spliced point has been detected
as the position of changing components.
* Since this setting becomes effective when a component is loaded to the mounter, the
corresponding setting of components already loaded to the mounter is not changed.
Input range: From the number of 1 to 100
Specify whether to inspect the component with the HMS, when the
spliced point is detected by the mispick count.
If possible: Inspects the component if the machine has the HMS.
No: Does not inspect.
* Setting of the “HMS Component Recognition” is applied to
components whose size is equal to that of a 1005 or larger.
This sets whether or not verification takes place at the position where a component is fixed
when verifying with a mounter or verifying outside setup with the setup explorer. Setting [No]
allows production to begin with the mounter even with status unverified.
Input the maximum number of the
space pocket.
Default: 5
Setable range: 1-100
JaNets Instruction Manual 16 Component Database
16-14
External Output Function Setting of feeder setup control
This item is set for the component whose packaging style is the “Tape.” However, it does not
apply to a 32-mm paper adhesive tape.

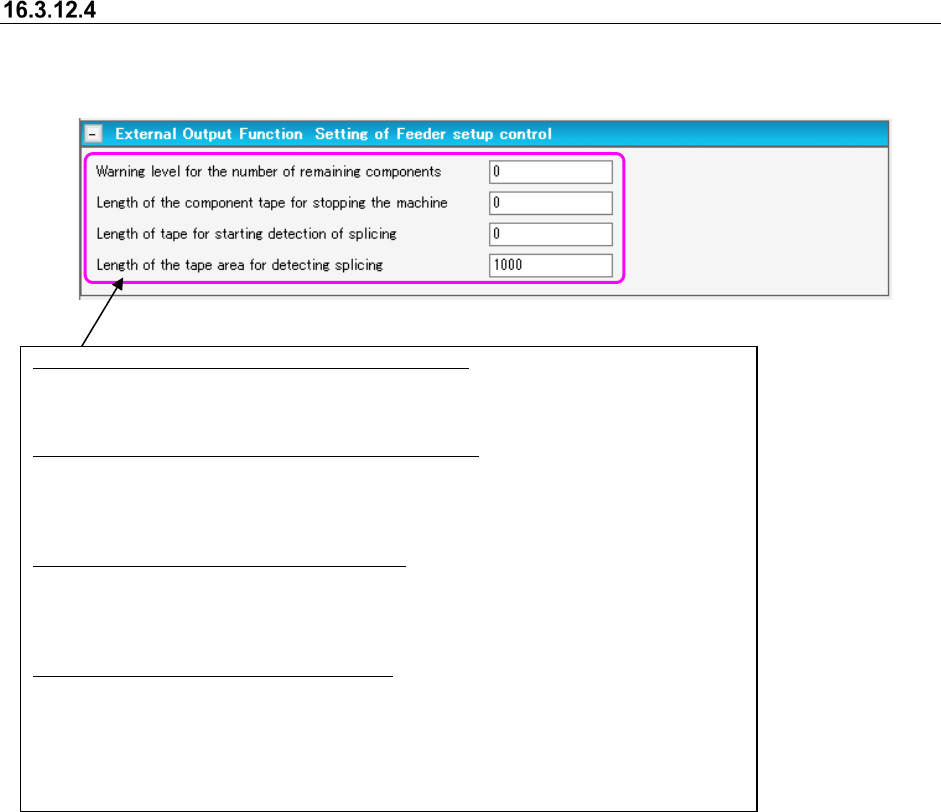

Figure 16.3-9 External Output Function Setting of feeder setup control
Warning level of the number of remaining components:
Specify the number of remaining components for issuing a component shortage warning.
Input range: 0 – 1000000
Length of the component tape for stopping the machine:
Specify the remaining component tape length for stopping the machine from producing a
PWB.
Input range: 0 – 1000000 mm
Length of tape for starting detection of splicing:
Specify the remaining component tape length for starting an area where continuous empty
pockets are to be detected.
Input range: 0 – 1000000 mm
Length of the tape area for detecting splicing:
Specify the tape length for deciding a splicing area detection over error.
The default value is set on the “Set Environments” screen.
Input range: 1 – 1000000 mm
The respective default values of all items are set on the “Set Environments” screen.
JaNets Instruction Manual 16 Component Database
16-15
Adhesion pattern
Adhesion pattern overview
This displays adhesion data recorded in the database. You cannot make entries only to the display.
Designated items for the adhesion data column are fixed in the [Environment settings] - [List
display] - [Adhesion list] fixed item column. Double click on the appropriate data position and
select [Edit] - [Add].

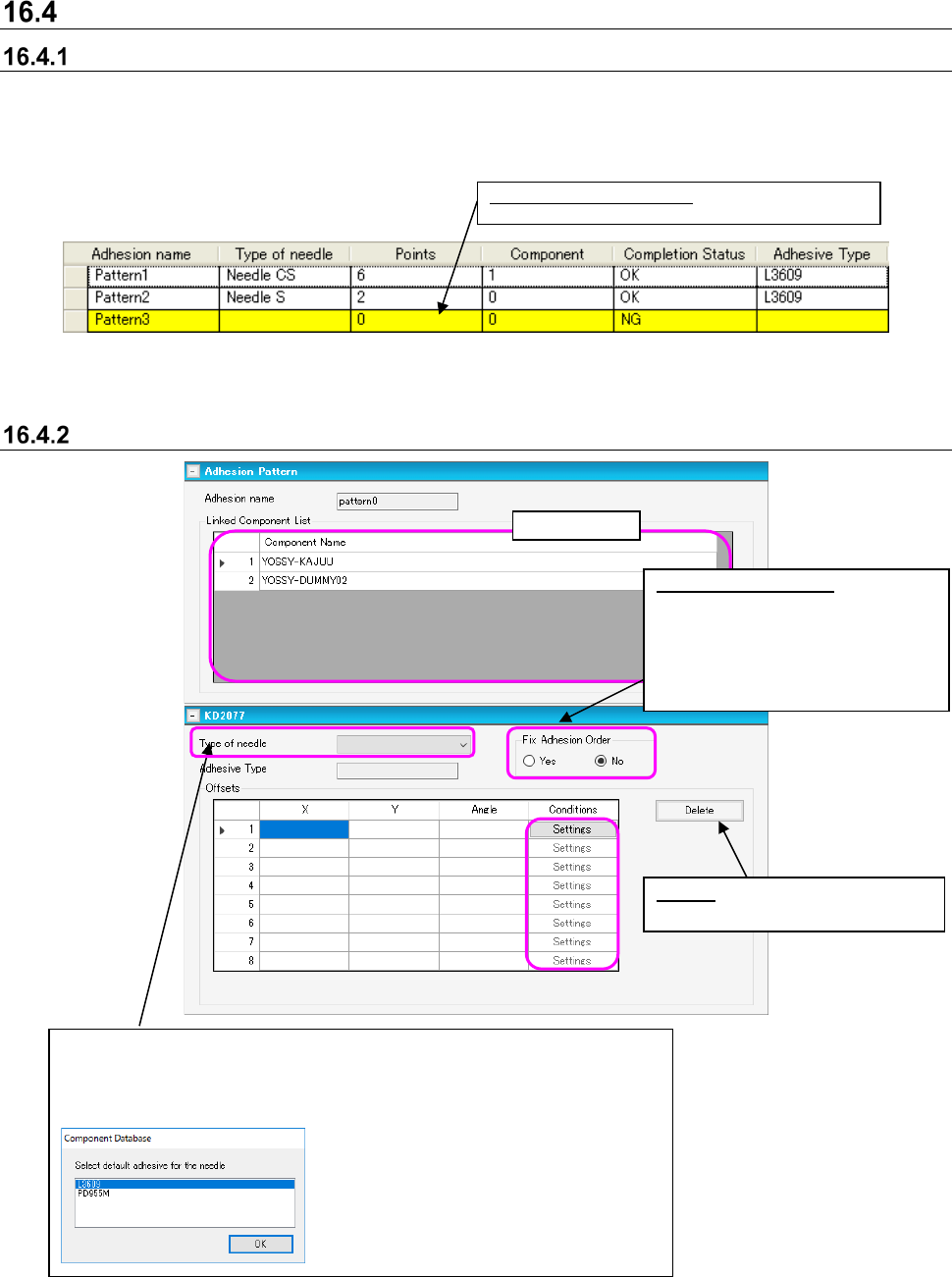

Figure 16.4-1 Adhesion data overview screen
Adhesion data editor screen
Figure 16.4-2 Adhesion data edit screen
Background color - Yellow: Data incomplete
Display only
Delete: Deletes offset data for
designated dispensing
Fix Adhesion Order:
Specifies whether to create the
optimized data so that dispensing
may be carried out in the order of
inputting dispensing points during
optimized production.
Select with the combo box. When setting multiple adhesives with operation
settings of the environment settings, the screen below appears to select the
default adhesive. When a single adhesive is selected, a linked default value
is set where dispensing conditions are not input.
