JaNets Instruction Manual 2. Installation
2-33
(6) When the screen for changing the account setting appears, select the item “Create a
password.”

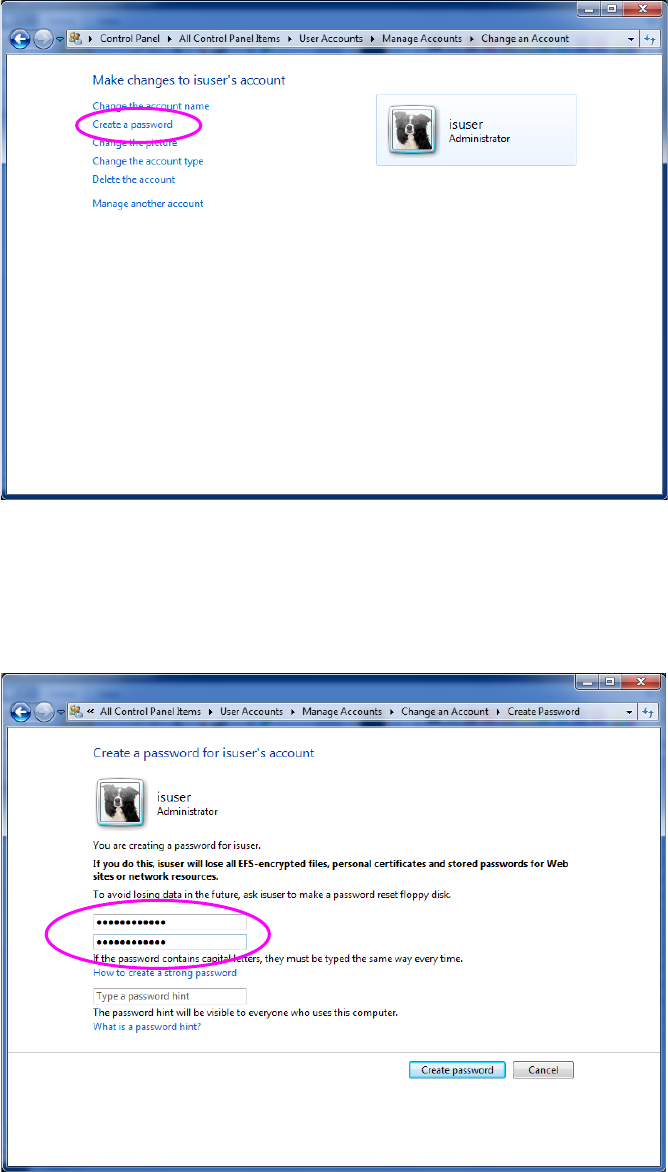

Figure 2.5-6 Screen for changing the account setting (with a machine)
(7) When the “Create Password” dialog box appears on the screen, enter the same password
twice to set a new password and to confirm it, and then enter a password hint (arbitrarily).
Next, select the <Create Password> button. The password you have to enter is
“is_user_2008.”
Figure 2.5-7 Screen for creating a password (with a machine)
JaNets Instruction Manual 2. Installation
2-34
You have finished creating a user account at this point.
- The cautions after account creation
The drive C becomes used as a ROM by using EWF (Enhanced Write Filter) for protecting the
OS in the machine. Since the contents written in drive C is deleted at the time of a restart of PC,
perform updating operation according to the Section "2.5.1.4 Updating the Drive C" when you
change the information on the OS.
JaNets Instruction Manual 2. Installation
2-35
2.5.1.2 Disabling the Firewall
Disable the Firewall. When the Firewall is enabled, the JaNets system cannot communicate with
any machine.
* Since an RX-7 series uses the different communication system, you do not have to make any
setting here.
(1) Display the “Control Panel” displayed with a machine from the “Start” menu as shown in
Figure 2.5-8, and selects the “Administrative Tools” displayed with a machine.” The screen
shown in Figure 2.5-9.

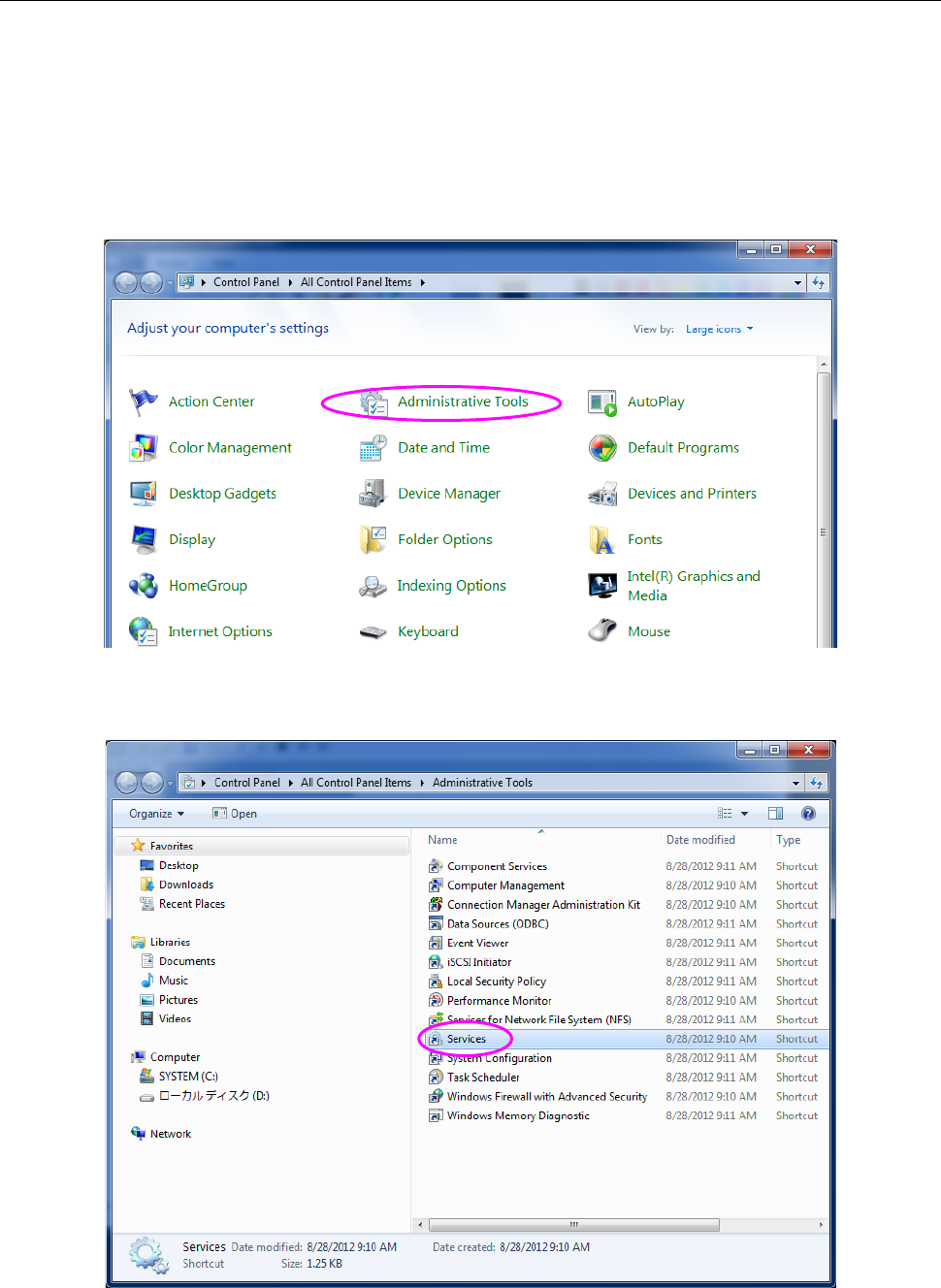

Figure 2.5-8 “Control Panel” displayed with a machine
(2) Select the “Services” from the “Administrative Tools.”
Figure 2.5-9 “Administrative Tools” displayed with a machine
