JaNets Instruction Manual 16 Component Database
16-45
Package code editing
Package code is created based on the specific component data and the associated adhesion data.
However, package code does not cover user ball pattern data of component data. You can decide
whether to include a comment of component data in editing of a package code on the “Set
Environments” screen as shown below.
“Comment is registered too when a package code is registered”:
- A comment of a package is overwritten when “Add” or “Update” is executed.
“Comment is loaded too when a package code is registered”:
- When you select the “Package Code” combo box, a comment is loaded from the package
code, and then displayed on the screen.
- When “Add” or “Assign” is executed, a comment is loaded from the package code, and
then stored in the target component data.
- When the “Update a package code and the related component data” is executed, a
comment of the target component data is updated.
Package code is managed with component data when it is created. Therefore, the package dode
will not be changed even if basic component data and associated adhesion data are changed after
the package code is created.
The way to create and change package code is described as follows:
Package code addition
Package code is newly created based on specific component data information. It is created on
component form screen.
Package code name input screen appears if the [Package code] – [Add] command is selected.
Figure 16.23-2 Package code input screen
Package Code : It can be input up to 60 alphameric one-byte characters.
OK : Package code is created in selected component data.
Cancel : Package code is not created.
Save confirmation message appears if basic component data is being edited.
Figure 16.23-3 Save confirmation message
Yes : Saves data being edited, and displays package code name input screen.
No : Restores data being edited, and displays package code name input screen.
JaNets Instruction Manual 16 Component Database
16-46

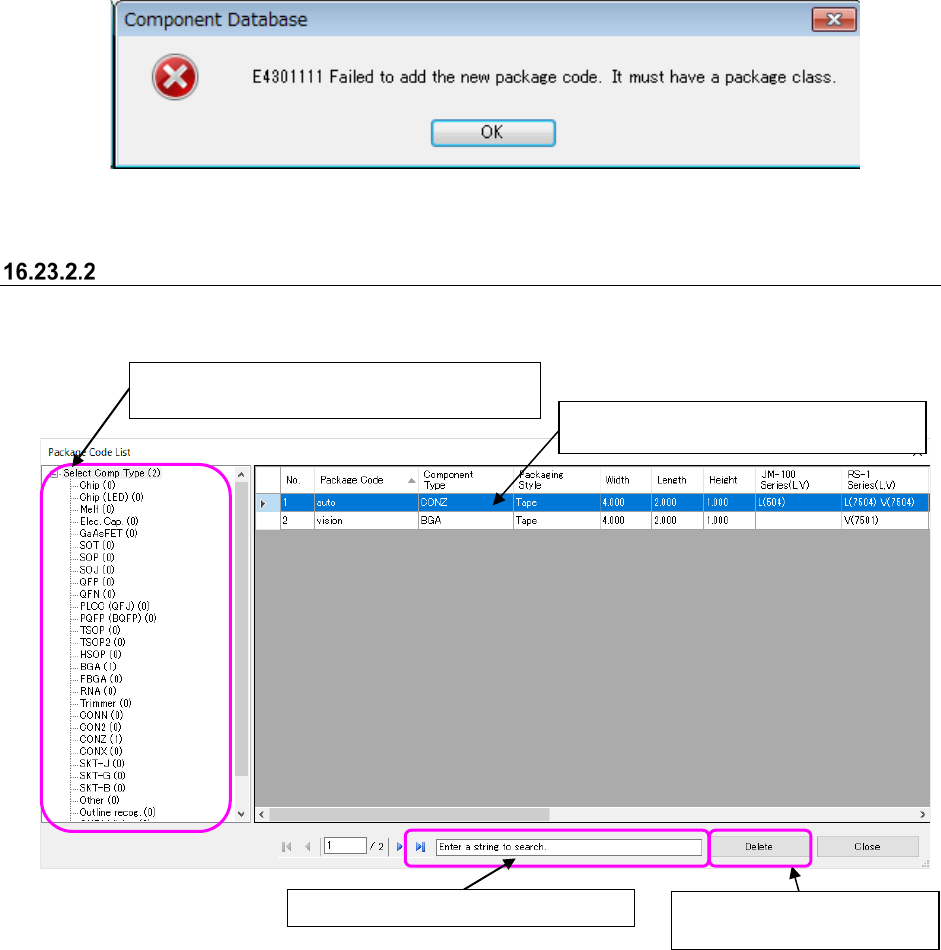

If component type is not set, the following error message appears, and package code is not
created.
Figure 16.23-4 Component type unset error message
Package code deletion
Package code is deleted from registered package codes.
Package Code List screen appears if the [Package code] – [Delete] command is selected.
Figure 16.23-5 Package Code List screen
If packlage code is deleted, association with component data associated with deleted package
code is also deleted.
①
Select the lines to delete. You can
make multiple choices.
②
Deletes package code by
pressing "Delete" button.
Select Comp Type is displayed in a list if it is
selected in a tree view.
Searches package code name.
JaNets Instruction Manual 16 Component Database
16-47
Package code update
Package code is updated with component data having package code.

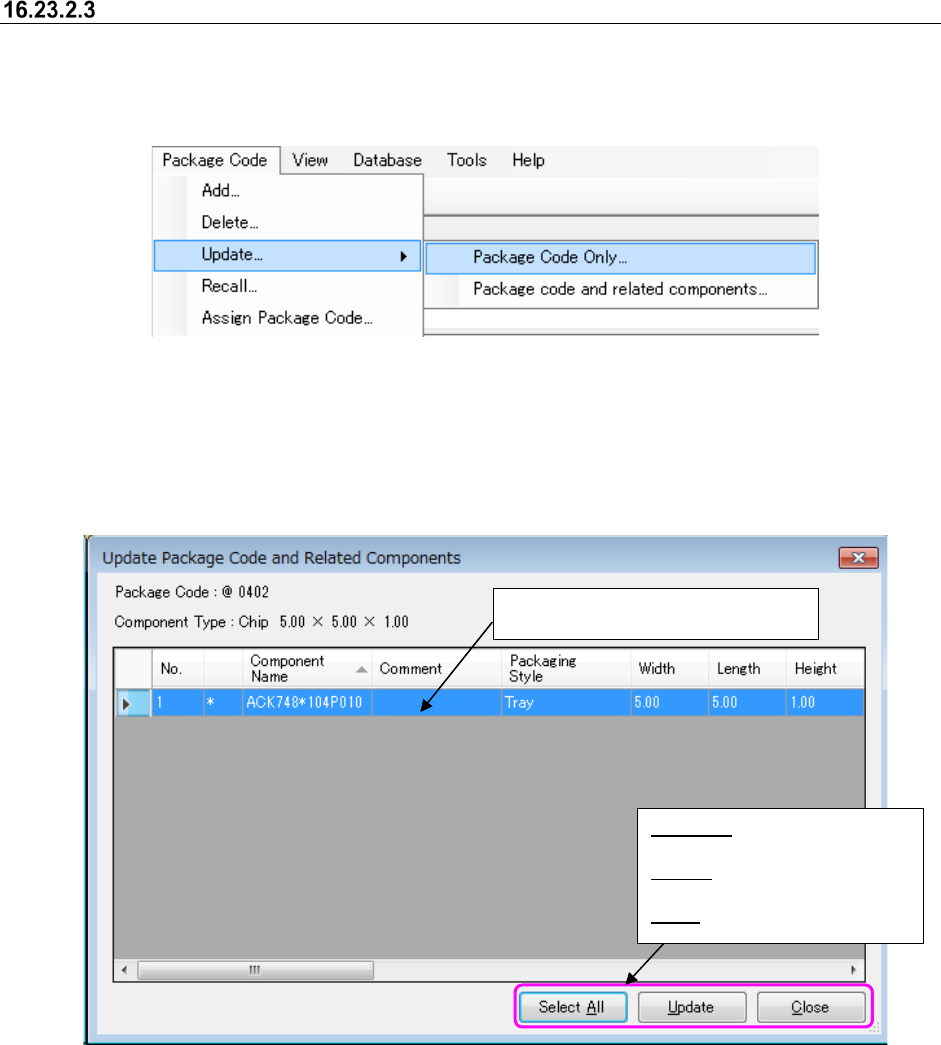

Select the [Package Code Only] or [Package code and related component] command to update
package code.
Figure 16.23-6 Package code update menu
Only package code is updated if [Package Code Only] menu is selected.
Package code is updated and also a list screen of component data associated with further
Updated Package Code and Related Components screen appears if [Package code and related
components] is selected.
Figure 16.23-7 Componenet data list screen associated with package code
Select the lines to update.
You can make multiple choices.
Select All: Selects all the lines
displayed in a list.
Update: Updates component
data in the lines selected.
Close: Closes a list screen.
