Updating Maintenance Information
The specified nozzle maintenance data can be registered or updated.
Select a line of the Viewer, and then display the maintenance information updating dialog box from
the context menu.

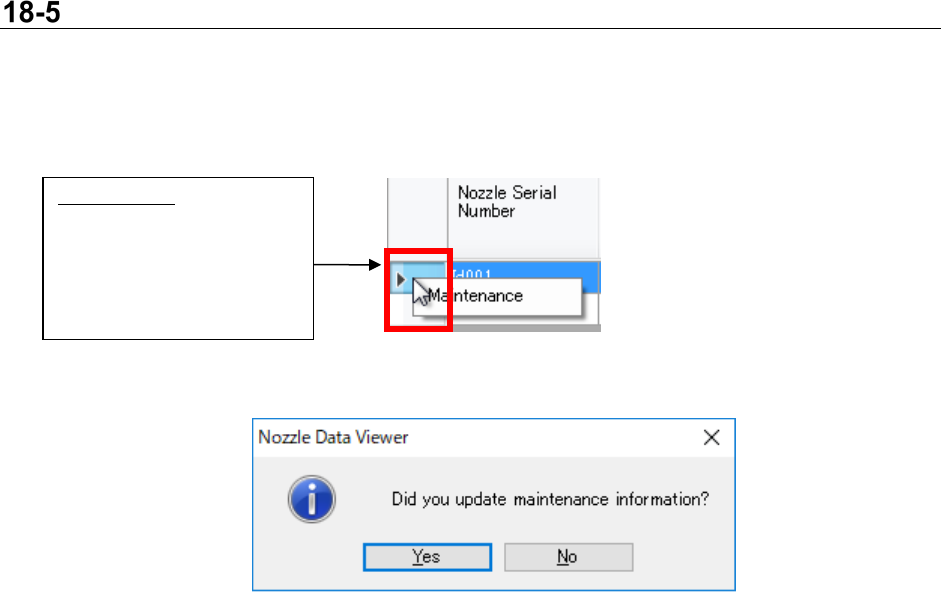

Figur 18-5-1 Maintenance
Figur 18-5-2 Updating maintenance information
Maintenance:
Select a nozzle whose
maintenance data you want
to update, and then click the
right button of the mouse.
The context menu appears
on the screen.
JaNets Instruction Manual 18. Nozzle Data Viewer
18-6
Extraction
When you select the menu command [Extraction rule] from the “Tool s ” menu, the following screen
appears.
Figur 18-7-1 “Extraction rule” screen
18-6-1 Creating an extraction rule
You can create an extraction rule on the “Extraction rule” screen.
When you press the <OK> button, the Viewer can extract nozzle data according to the extraction rule
specified with the condition settings to display it.
The items you can specify as an extraction rule are shown in the table below.
Table 18-7-1 Extraction rule settings
Item
Description
AND/OR
Specify “AND” or “OR” for a previous condition.
(
Specify “(” for an extraction rule to set the priority processing
termination point.
Extraction Column
Specify what is to be extracted.
Extraction Condition
Specify the condition for the Extraction Column.
Extracted Value
Specify a threshold value to be extracted.
)
Specify “)” for an extraction rule to set the priority processing
termination point.
Add
Adds to an extraction rule according to your settings.
Update
Updates an extraction rule selected from the list.
Delete
Deletes an extraction rule selected from the list.
Total Deletion
Deletes all extraction rules.
Condition settings
Specify the extraction rule to be set.
JaNets Instruction Manual 18. Nozzle Data Viewer
18-7
18-6-2 Saving/Loading an extraction rule
Select the menu command [Save as] from the “Too ls” menu to save an extraction rule.
Select the menu command [Open] from the “Too l s ” menu to load an extraction rule.
Figur 18-7-2 Saving/loading an extraction rule
