JaNets Instruction Manual 19 TraceMonitor
19-5
19-3-3 Updating alarm information
19-3-3-1 Update button
When you select a production line or a machine from the “Floor Information” screen and specify the
data collection period with the menu item “Search period at start-up,” and then press the Update
button, alarm data satisfying the search conditions are displayed on the screen.
When alarm information is updated successfully, the panel switch icons are enabled, and they allow
you to switch the panels among “Error rankings,” “Individual ranking,” “Timeline” and “Error history.”
Figure 19-3-6 TraceMonitor screen (after alarm data is updated)
If the start date and time for searching data within the data collection period exceeds the end date,
the following message appears on the screen.
Figure 19-3-7 Warning message issued when the start date and time exceeds the end date and time
If neither a production line nor a machine is selected, the following message appears on the screen.
Figure 19-3-8 Warning message issued when neither a production line nor a machine is selected
When you press the Update button, the TraceMonitor
retrieves data on the selected production line or
machine within the data collection period, and then
displays matched data.
You can switch
the displayed
panel to each of
“Error rankings,”
“Individual
ranking,”
“Timeline” and
“Error history.”
JaNets Instruction Manual 19 TraceMonitor
19-6

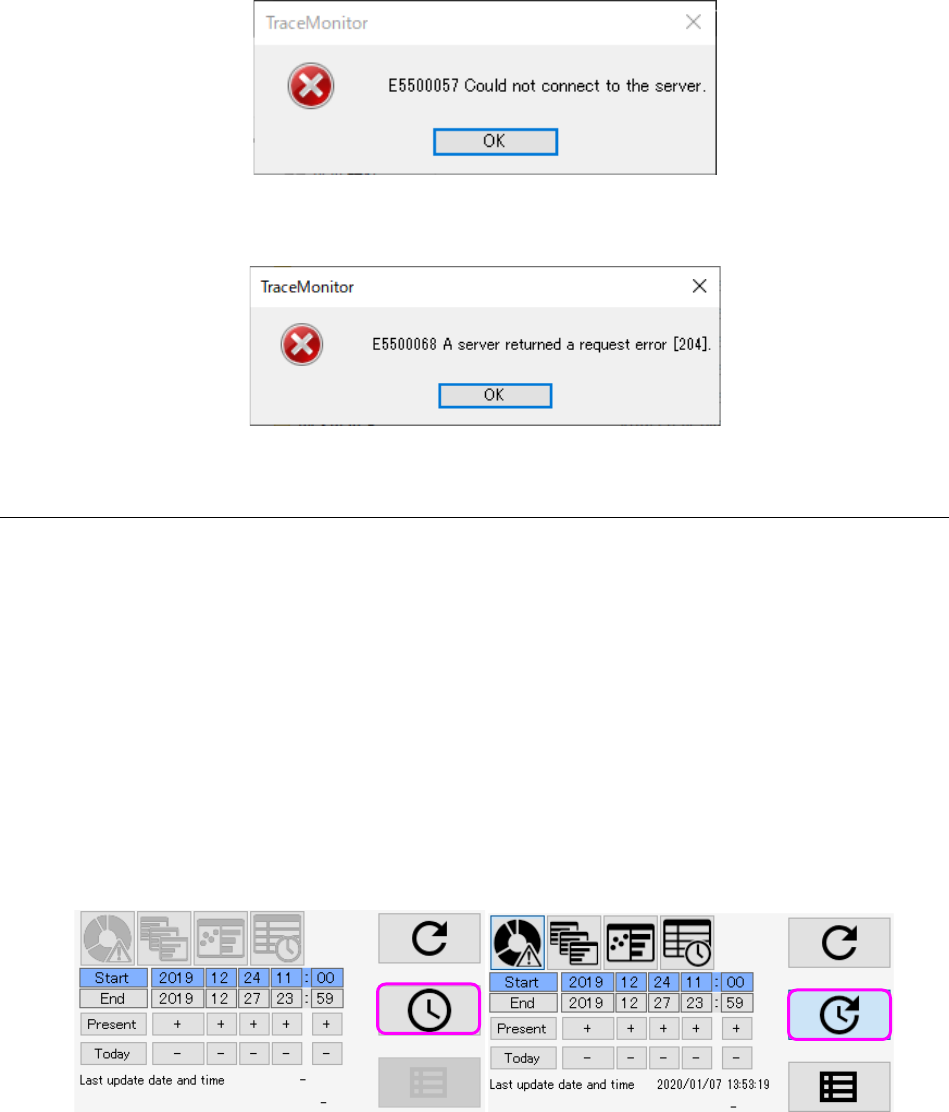

If the system cannot connect to the server, the following message appears on the screen.
Figure 19-3-9 Server connection error message
If any error occurs on the server, the following message appears on the screen.
Figure 19-3-10 Server request error message
19-3-3-2 Automatic update
Automatic update is a function that performs search of information repeatedly under the conditions
set for the menu item “Search period at start-up” at the desired intervals. When you press the
<Alarm update> button when the Automatic update function is set to ON or when you set the
Automatic update function to ON after pressing the <Alarm update> button, TraceMonitor starts
automatic update operation (note that TraceMonitor does not start updating if you change the
Automatic update function setting to ON although you have never searing any information).
After update starts, the columns for entering the date for searching data displayed on the upper left
corner are updated automatically also. If a condition for searching data by a production program
name is set, TraceMonitor updates data under this condition also.
If TraceMonitor cannot connect to the server or any error occurs at the server when data is updated,
TraceMonitor does not update the data automatically. In this case, when you set the Automatic
update function to ON again, TraceMonitor restarts automatic update operation. When a user
presses the <Alarm update> button, automatic update operation is canceled too.
Figure 19-3-11 Automatic update button (ON/OFF)
JaNets Instruction Manual 19 TraceMonitor
19-7
19-3-4 “Error rankings” screen
When you select the “Error rankings” panel with the corresponding panel switch, this screen appears.
Figure 19-3-12 Panel switches
The “Error rankings” screen shows three types of information: ranking information, worst ranking
information and Final error information all of which are on a production line or machine selected on
the “Floor Information” screen.
It shows the worst ranking information and final error information for an error selected from the Error
rankings.
Figure 19-3-13 “Error rankings” screen
Error ranking information
Worst ranking information
Final error information
