JaNets Instruction Manual 19 TraceMonitor
19-15
19-3-5-6 Nozzle error ranking information
The “Nozzle error ranking” information shows the ranking of each nozzle according to the error code
selected in the “Error rankings” information list.
When any error code is not selected in the “Error rankings” information list, this screen shows the
nozzle error ranking for all error codes.
Figure 19-3-26 “Nozzle error ranking” information
(Left: when an error code is selected/Right: when any error code is not selected)
Table 19-3-7 Items of the “Nozzle error ranking” information
Item Description
No
Displays a serial number
Number of errors
Displays the number errors counted for each nozzle head number as for
the selected error code.
When any error code is not selected, this column shows the number of
errors counted for each nozzle head number as for all error codes.
Main error
Displays the main error for the selected error code.
When any error code is not selected, this column shows the main errors for
all error codes.
Machine
Displays the name of a machine at which an error occurred as for the
selected error code.
When any error code is not selected, this column shows the name of each
machine at which an error occurred as for all error codes.
Unit
Displays a unit of a machine at which an error occurred as for the selected
error code.
When any error code is not selected, this column shows a unit of each
machine at which an error occurred as for all error codes.
1- to 4-digit error code
RX-7 0: Entire machine 1: Right side 2: Left side
RX-6 1: Front head 2: Rear head
RS-1/JM-100 1: Head, entire machine
6-digit error code
RX-6/RS-1/JM-100 1: Entire machine
RX-7 No error code is applied to the RX-7.
Nozzle
Displays the number of a nozzle head at which an error occurred as for the
selected error code.
When any error code is not selected, this column shows the number of
each nozzle head at which an error occurred as for all error codes.
JaNets Instruction Manual 19 TraceMonitor
19-16
19-3-5-7 Nozzle ATC error ranking information
The “Nozzle ATC error ranking” information shows the ranking of each nozzle ATC according to the
error code selected in the “Error rankings” information list.
When any error code is not selected in the “Error rankings” information list, this screen shows the
nozzle ATC error ranking for all error codes.

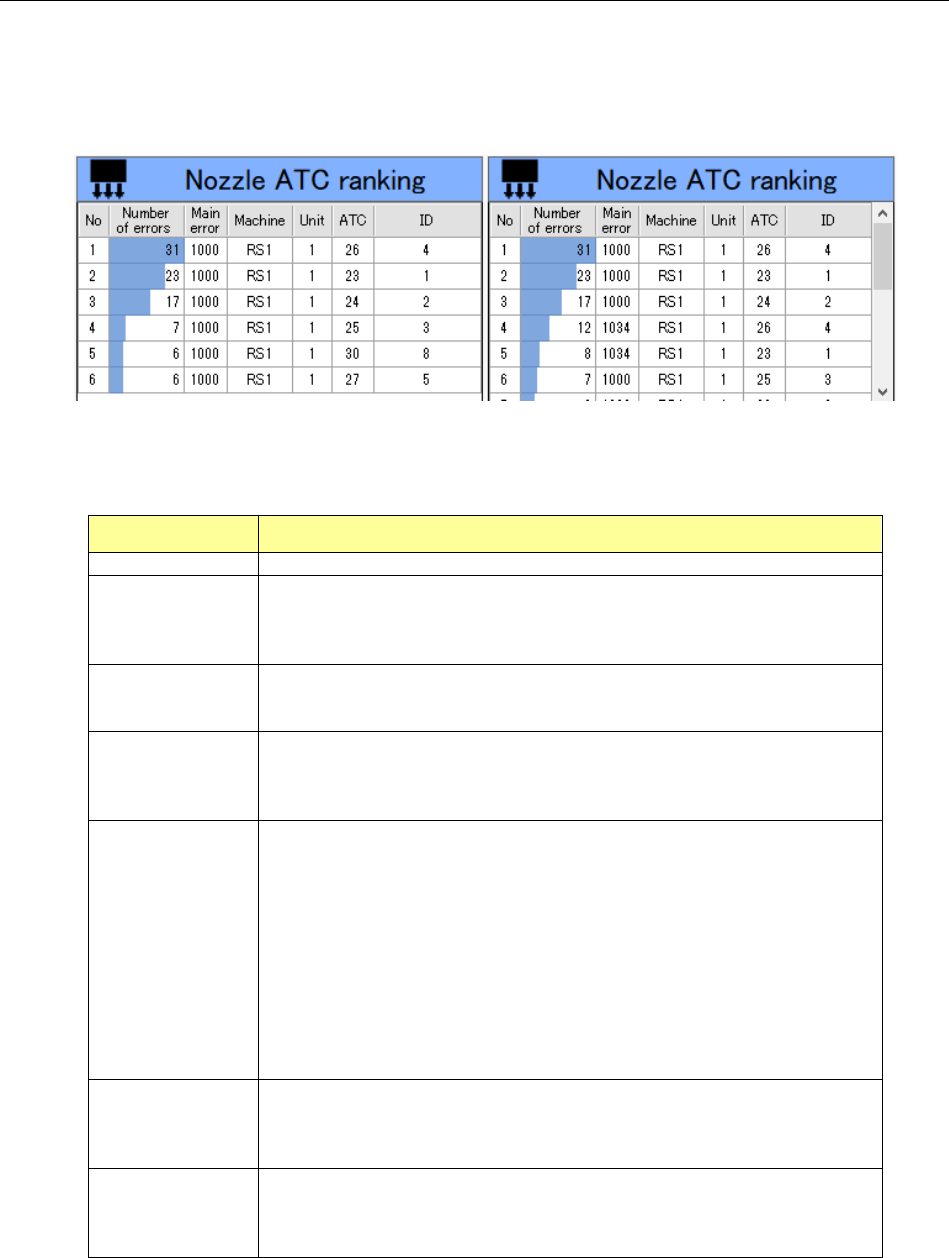

Figure 19-3-27 “Nozzle ATC error ranking” information
(Left: when an error code is selected/Right: when any error code is not selected)
Table 19-3-8 Items of the “Nozzle ATC error ranking” information
Item Description
No
Displays a serial number
Number of errors
Displays the number of errors counted for each ATC hole number as for the
selected error code.
When any error code is not selected, this column shows the number of
errors counted for each ATC hole number as for all error codes.
Main error
Displays the main error for the selected error code.
When any error code is not selected, this column shows the main errors for
all error codes.
Machine
Displays the name of a machine at which an error occurred as for the
selected error code.
When any error code is not selected, this column shows the name of each
machine at which an error occurred as for all error codes.
Unit
Displays a unit of a machine at which an error occurred as for the selected
error code.
When any error code is not selected, this column shows a unit of each
machine at which an error occurred as for all error codes.
1- to 4-digit error code
RX-7 0: Entire machine 1: Right side 2: Left side
RX-6 1: Front head 2: Rear head
RS-1/JM-100 1: Head, entire machine
6-digit error code
RX-6/RS-1/JM-100 1: Entire machine
RX-7 No error code is applied to the RX-7.
ATC
Displays the number of an ATC hole at which an error occurred as for the
selected error code.
When any error code is not selected, this column shows the number of
each ATC hole at which an error occurred as for all error codes.
ID
Displays the number of a nozzle head at which an error occurred as for the
selected error code.
When any error code is not selected, this column shows the number of
each nozzle head at which an error occurred as for all error codes.
JaNets Instruction Manual 19 TraceMonitor
19-17
19-3-5-8 Serial error ranking information
The “Serial error ranking” information shows the ranking of each feeder serial number according to
the error code selected in the “Error rankings” information list.
When any error code is not selected in the “Error rankings” information list, this screen shows the
feeder serial error ranking for all error codes.

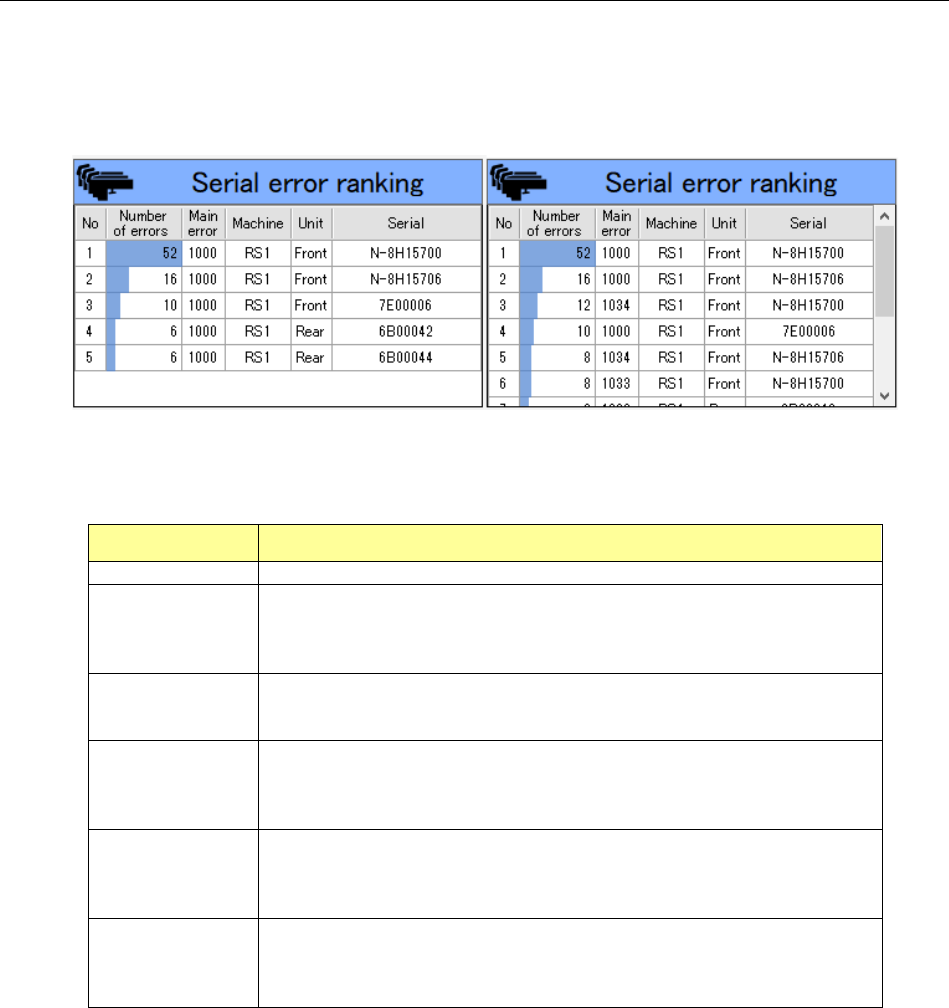

Figure 19-3-28 “Feeder serial error ranking” information
(Left: when an error code is selected/Right: when any error code is not selected)
Table 19-3-9 Items of the “Serial error ranking” information
Item Description
No
Displays a serial number
Number of errors
Displays the number of errors counted for each feeder serial number as for
the selected error code.
When any error code is not selected, this column shows the number of
errors counted for each feeder serial number as for all error codes.
Main error
Displays the main error for the selected error code.
When any error code is not selected, this column shows the main errors for
all error codes.
Machine
Displays the name of a machine at which an error occurred as for the
selected error code.
When any error code is not selected, this column shows the name of each
machine at which an error occurred as for all error codes.
Unit
Displays a unit of a machine at which an error occurred as for the selected
error code.
When any error code is not selected, this column shows a unit of each
machine at which an error occurred as for all error codes.
Serial
Displays the serial number of a feeder at which an error occurred as for the
selected error code.
When any error code is not selected, this column shows the serial number
of each feeder at which an error occurred as for all error codes.
