5 3. Controller Section 3-1. Power Control Assy 4,5 7 6 1 2 3 8 4,5 7 6 1 2 3 8 No. Part No. Part Name Q'ty Remarks Rank Level 1 LE1-M4205-00 PLATE 1 / ○ 2 LE1-M13H1-00 BUZZR 1S 1 / × 3 LE1-M42HV-00 NOISE FILTER2 1 …
4
2. Cover Section
2-2. Base Cover
No. Part No. Part Name Q'ty Remarks Rank Level
1 LE1-M130G-01 BRKT,MAGNET 1 / ○
2 LE1-M130H-01 BRKT,MAGNET SW 1 / ○
3 LE1-M13A1-00 MAGNET 1 / ○
4 LE1-M13H2-00 BEAM SENSOR 6 / ×
5 LE1-M13H6-00 MAGETCATCH LT 1 / ×
6 LE1-M42H1-01 SW BREAKER 1 / ×
7 LC1-M40H2-00 HNS. EX-USB 3 / ×
8 LE1-M66LR-00 PB1 ASSY 1 / ×
9 LE1-M66NB-00 HNS, J54-J43 1 / ×
10 LE1-M131S-00 COLLAR 1 / ×
11 LE1-M4206-00 COVER 1 / ○
12 LE1-M13HA-00 SW SPACER 1 B ×
13 91317-03006 BOLT HEX.SOCKET HEAD 4 M3X6
14 92907-03200 WASHER PLAIN 4
15 98907-03006 SCREW BINDING HEAD 4
16 98907-03014 SCREW BINDING HEAD 12
17 98704-03006 SCREW,PAN HEAD(+) 1
18 LG7-M71GY-30 BOLT HEX.SOCKET HEAD 2
19 98904-03006 SCREW BINDING HEAD 6
20 LG9-M57F2-00 SCREW BINDING HEAD 2
5

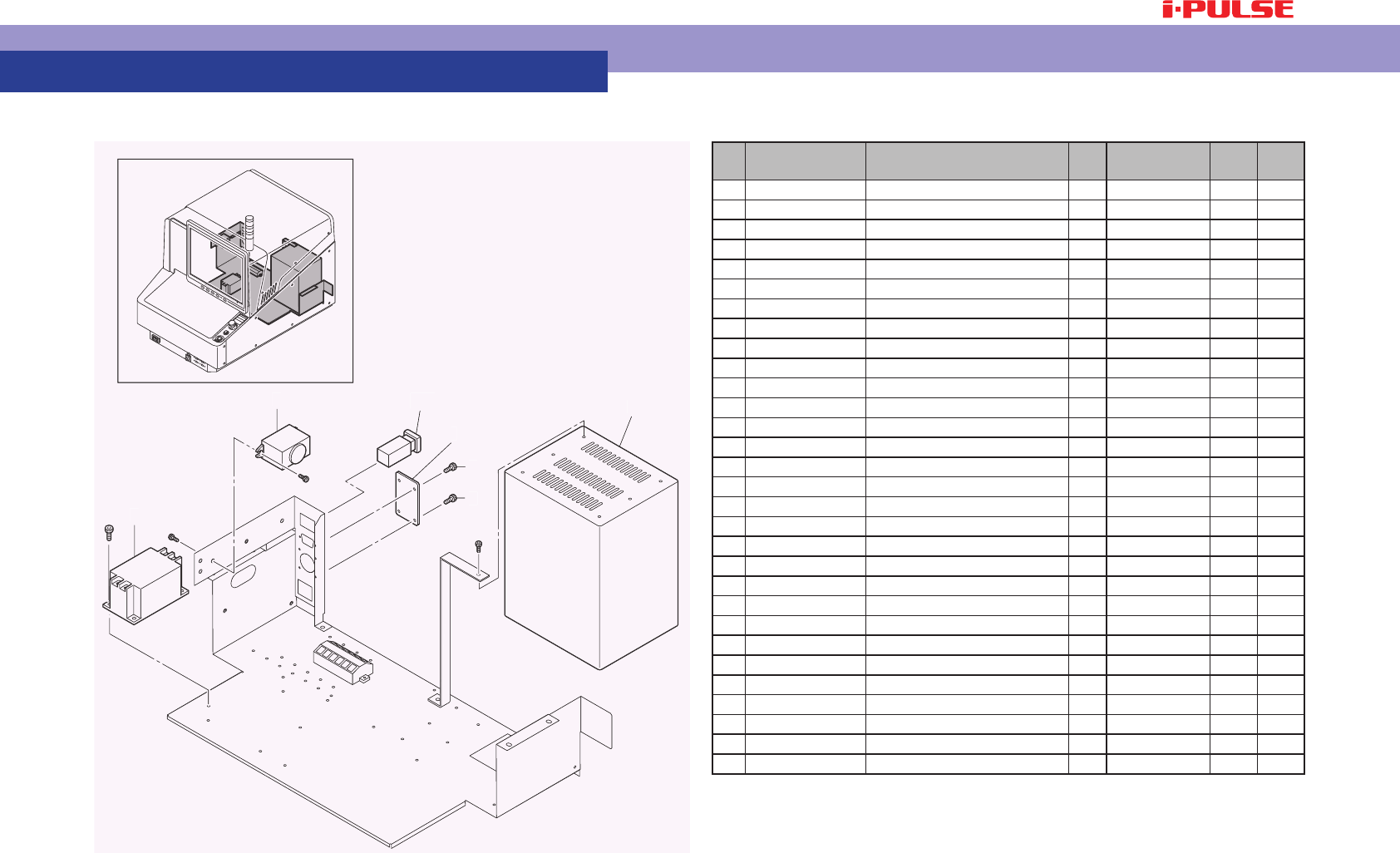

3. Controller Section
3-1. Power Control Assy
4,5
7
6
1
2
3
8
4,5
7
6
1
2
3
8
No. Part No. Part Name Q'ty Remarks Rank Level
1 LE1-M4205-00 PLATE 1 / ○
2 LE1-M13H1-00 BUZZR 1S 1 / ×
3 LE1-M42HV-00 NOISE FILTER2 1 / ×
4 LC0-M11H1-00 BEZEL,LAN 1 / ×
5 LG0-M11H9-00 CONNECTOR,LAN 1 / ×
6 LG0-M71GD-10 SCREW,BIND.HEAD 2 / ○
7 LG9-M57F2-00 SCREW,BIND.HEAD 2 / ○
8 LE1-M42H2-00 ROBOT.CTRL 1 / ×
6
4. Marker Pen Unit Section (Option)
4-1. Marker Pen Unit (Option)
6
4
5
11
11
1
8
7
3
9
9
10
2
14
13
12
6
4
5
11
11
1
8
7
3
9
9
10
2
14
13
12
No. Part No. Part Name Q'ty Remarks Rank Level
1 LE1-M5102-02 HOLDER,PEN 1 / ×
2 LE1-M5103-01 STOPPER,PEN 1 / ○
3 LE1-M5105-02 HOOK 1 / ×
4 LE1-M5107-00 ADAPTER 1 / ○
5 LE1-M51A2-00 KNOB 1 / ○
6 LE1-M51A3-00 PIN,HINGE 1 / ○
7 LE1-M51A4-00 SPRING 1 / ×
8 LC2-M912T-00 STOPPER 1 / ×
9 LC2-M654R-00 SENSOR. 2 B ×
10 91317-03006 BOLT HEX. SOCKET HEAD 2 M3X6
11 91317-03008 BOLT HEX. SOCKET HEAD 10 M3X8
12 LE1-M50H7-00 LINER MOTOR 1 E ×
13 92D11-2F005 BOLT HEX. SOCKET HEAD 4
14 LG0-M71FP-50 WASHER PLAIN(S) 4
