4. Feeder Base & ANC (CP-40) 4-3-1. Feeder I/F Board Replacement Version Date WA QA CA Note 00 Nov04 O O O 1) Using Teaching Box, Move Head to the Rear. 2) Turn Conveyor Width Adjusting Handle to the Right-hand to Wi…
4. Feeder Base & ANC
(CP-40)
NO Symptom Possible Cause Error Code Action
Instructio
n
1
ANC Malfunction
ANC Connector Pin Check
Modify ANC Connector Pin.
4-3-2
2
Modify Feeder I/F CN No.3 and CN No.4
Connector Pins.
4-3-2
3 Bad AC Power of Front ANC Panel AC Modify Connector Pin. 4-3-2
4 ANC Shutter Check
Remove Foreign Materials from ANC Shutter.
5
Bad Recognition of Nozzle
Modify Coordinates of ANC. 4-3-4
6 Replace O-Ring.
7
ANC Shutter Malfunction
Reassemble ANC.
8 Clean with ANC Shutter WD40.
9
Cylinder
Malfunction
Multi Cylinders Operates with them
Exchanged.
Modify Wiring. 4-3-2
10
Multi Cylinder does not Operate.
Check Connector Pin for Bad Contact. 4-3-2
11 Replace Multi Cylinder. 4-3-5
12 Replace Feeder I/F Board. 4-3-1
13
Slow Cylinder Speed
Adjust Speed Con. 4-3-5
14 Check Multi Cylinder Air. 4-3-5
4-2. Trouble Diagnosis
4. Feeder Base & ANC
(CP-40)
4-3-1. Feeder I/F Board Replacement
Version Date WA QA CA Note
00 Nov04 O O O

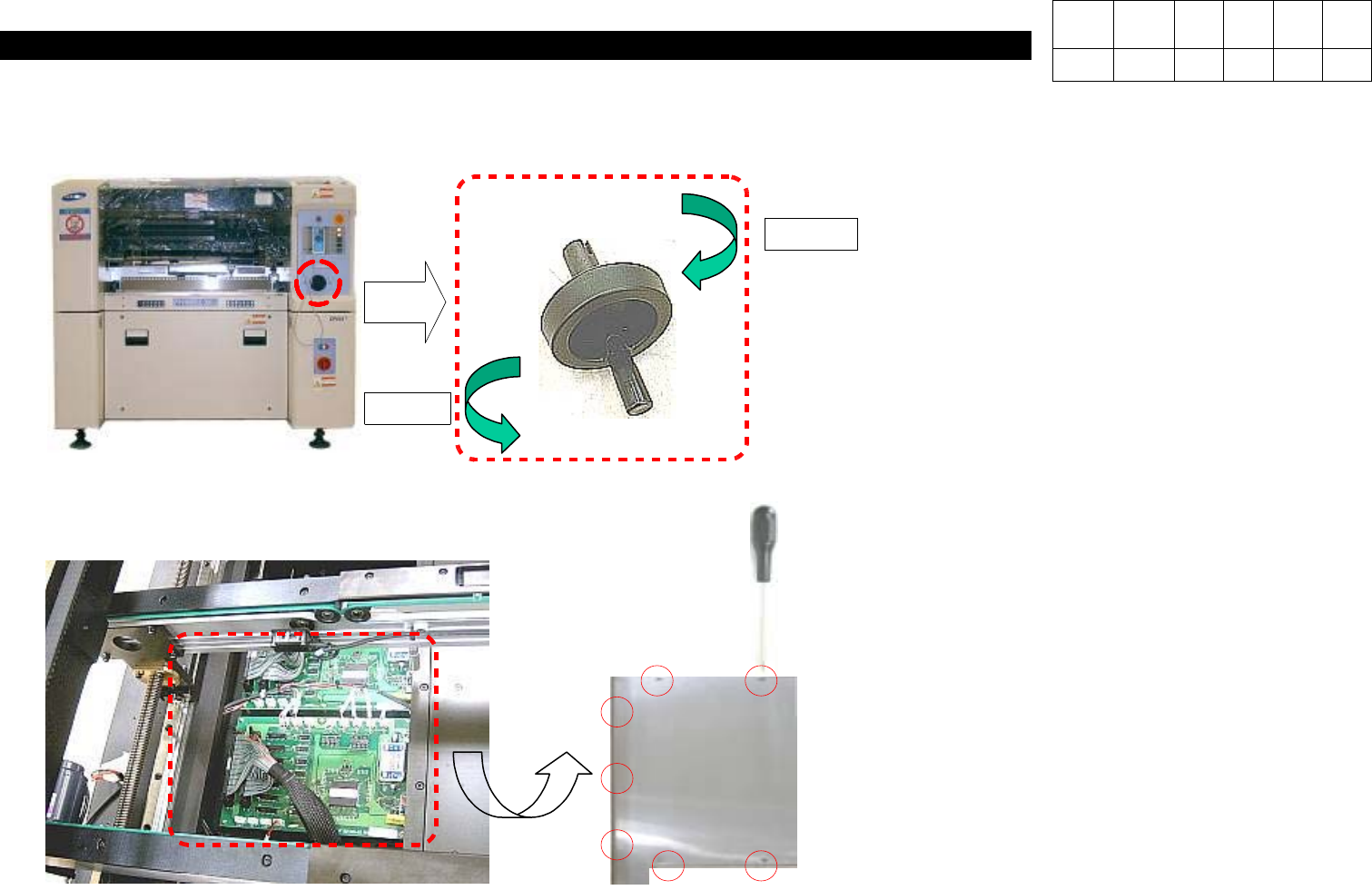

1) Using Teaching Box, Move Head to the
Rear.
2) Turn Conveyor Width Adjusting Handle to
the Right-hand to Widen Conveyor Width as
Widely as Possible.
Decrease
Increase
<Conveyor Width Adjusting Handle>
J1301706
3) Loosen Seven M3*6 Toras Bolts to Open
Chip Cover on the Inner Left-side of
Equipment.
<Chip Cover Side>
J2102037
<Feeder I/F Board>
4. Feeder Base & ANC
(CP-40)
4-3-2. Feeder I/F Board Cable Check
Rear
Front

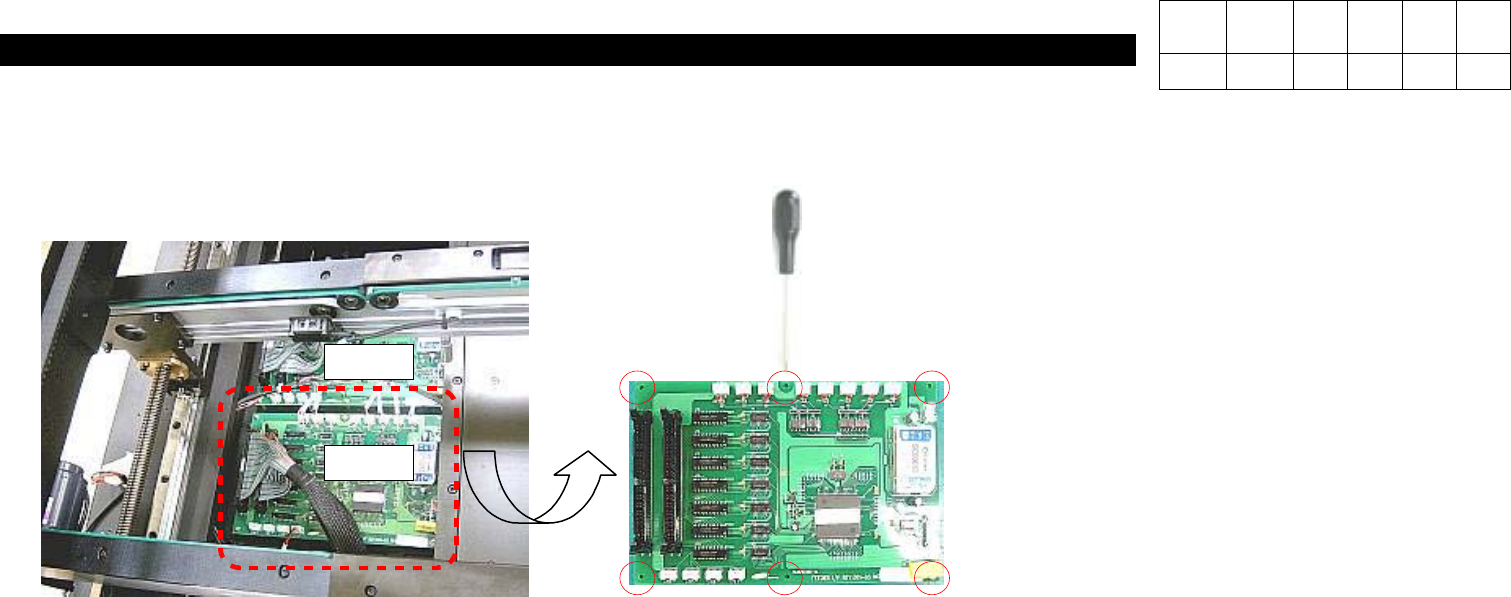

4) Disconnect Connector on PCB.
5) Loosen Six Spherical Head Bolts to
Disconnect Feeder I/F Board.
6) Replace New PCB and Assemble it
according to Reverse Procedures of
Disassembly.
<Feeder I/F Board>
J9800394
Version Date WA QA CA Note
00 Nov04 O O O
